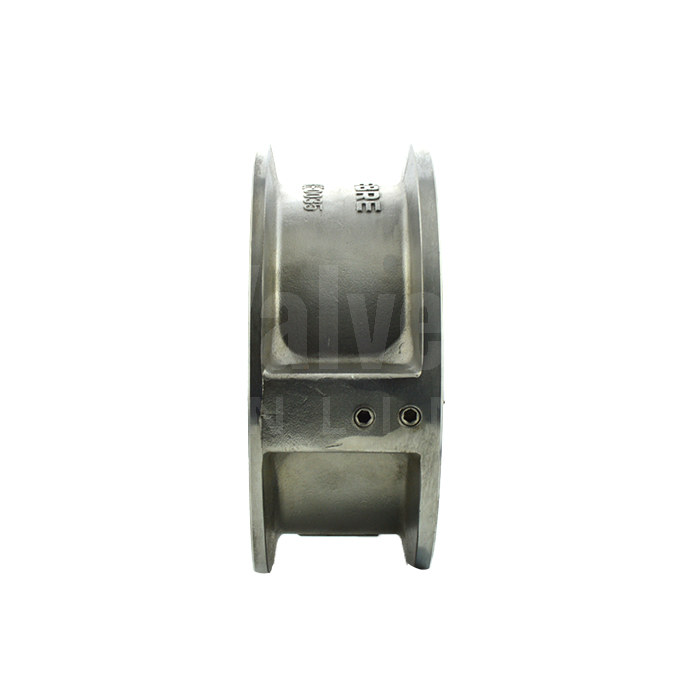

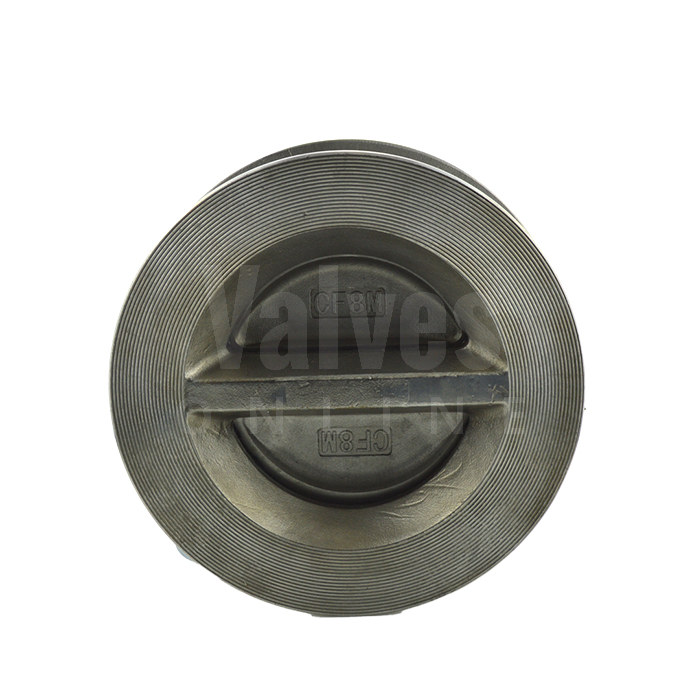

Stainless Steel Dual Plate Check Valve Wafer Pattern PN25
SKU CV5178
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Dual Plate Check Valve
- Spring assisted
- Stainless Steel body
- Wafer Pattern to fit PN25, ANSI 150 Flanges
- Sizes: 2" to 8"
- Pressure rating: 25 Bar
- Temperature: -20°C to 180°C
- FKM Seals
Description
Our Wafer Pattern Dual Plate Spring Check Valve offers excellent sealing capabilities for both high and low pressures;
Applications include Chemical, General purpose, industrial and HVAC with water, heating, air-conditioning plants and compressed air systems. An economical, space saving spring loaded dual plate check valve with Stainless Steel body and Viton seal.
The valve can be installed either vertically (upwards only) or horizontally.
For full details please download the accompanying datasheet.
Stainless Steel Dual Plate Check Valve Wafer Pattern Datasheet
Technical specification
- End Connection
- Wafer Pattern
- Design / Type
- Dual Plate
- Industry / Approvals
- HVAC
- Body Material
- Stainless Steel
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Main Features
- 2" to 8" -20°C to 180°C Up to 25 Bar
