Pneumax

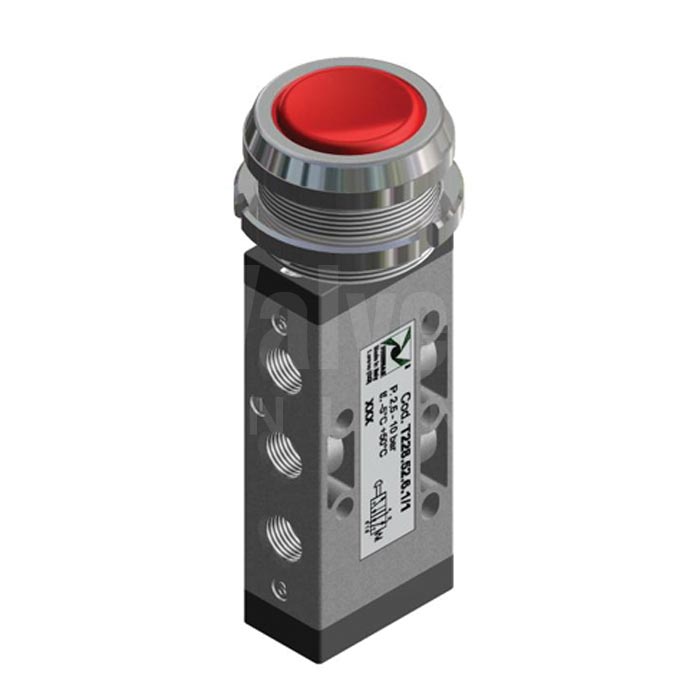

Series T228 Push Button Ø30 Pneumatic Valve 3/2 & 5/2 - 1/8"
SKU PV5680
from£36.42ex VAT Not the right one? Identify your valve by photo
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumax Series T228
- Red, Black or Green Button
- Technopolymer Body
- 3/2 or 5/2
- Operating force: 33N
- Max Working Pressure: 10 bar
- Flow Rate: 620 Nl/min
- G 1/8"
- Orifice size: 6mm
Description
A 3/2 or 5/2 Flush push button mechanical valve with 1/8" connections that can be offered with a multitude of actuator mechanisms and various coloured cap buttons. Operation of this valve is push and spring to original state.
The main components constituting the valves of the TecnoECO series are manufactured with high performance technopolymer. The use of tecnopolymer has resulted in a light weight product which can be offered to the market at competative prices.
Pneumax Series T228 Push Button Pneumatic Valve Datasheet
Technical specification
- Operator
- Button
- Position
- 3/2, 5/2
- Connection
- 1/8"
- Series
- T228
- Material
- Technopolymer
