Pneumax

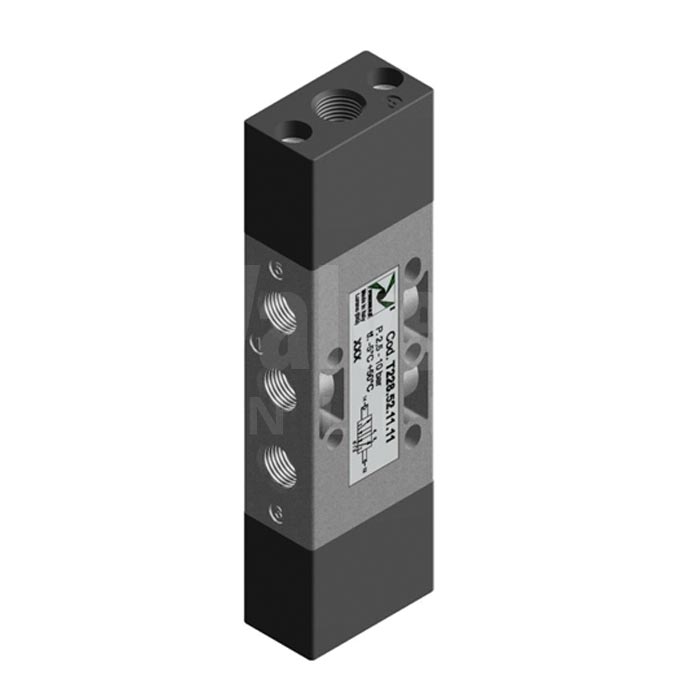

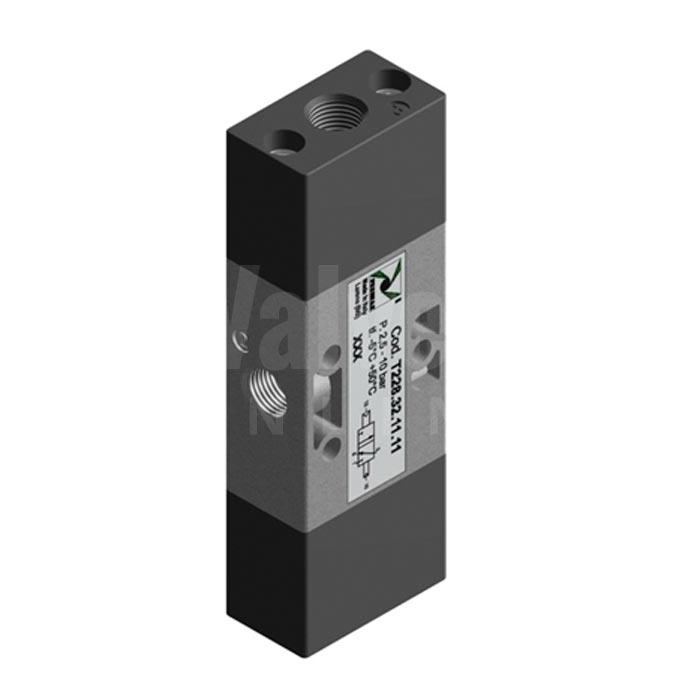

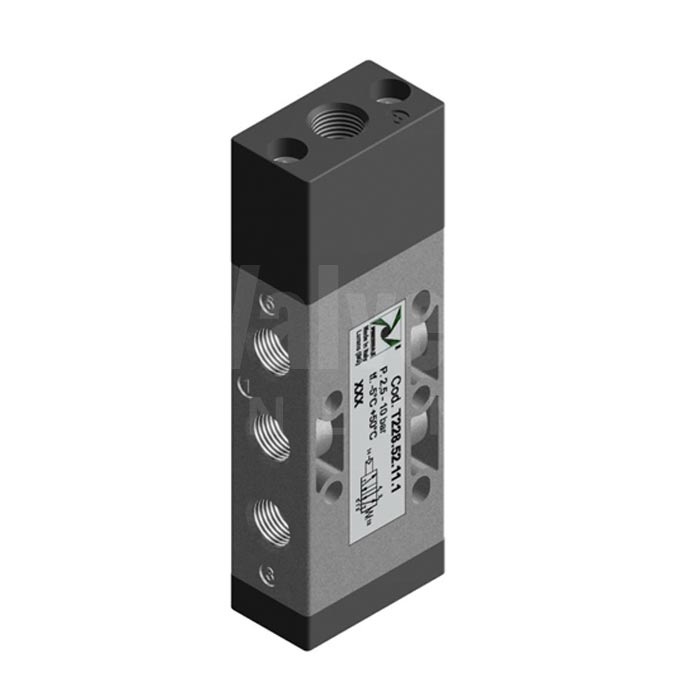

Pneumax Series T228 Mechanical Pneumatic Valve 3/2 & 5/2 - 1/8"
SKU PV5678
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Technopolymer body
- NBR seals
- 3/2 or 5/2 versions
- G 1/8"
- Orifice Size: 6mm
- Working Pressure:
- 2.5 - 10 bar (Pneumatic-Spring)
- 2 - 10 bar (Pneumatic-Pneumatic)
- Flow at 6 bar: 620 Nl/min
Description
3/2 or 5/2 mechanical spool valve with 1/8" connections. Available in either Pneumatic - Spring or Pneumatic - Pneumatic.
The Pneumatic - Spring mechanical spool valve operates via an air pilot and spring return. This valve operates similar to a solenoid in the fact that the communication signal is remote. Minimum working pilot pressure 2.5 bar.
The Pneumatic - Pneumatic mechanical spool valve operates via an air pilot supply for both directions to drive the valve. This valve operates similar to a solenoid in the fact that the communication signal is remote. Minimum working pilot pressure 2 bar.
The body is manufactured in technopolymer and seals are all in NBR rubber. Suitable for use with compressed air with or without lubrication.
The main components constituting the valves of the TecnoECO series are manufactured with high performance technopolymer. The use of tecnopolymer has resulted in a light weight product which can be offered to the market at competative prices.
Pneumax Series T228 Mechanical Pneumatic Valve Datasheet
Technical specification
- Operator
- Air Piloted
- Position
- 3/2, 5/2
- Connection
- 1/8"
- Series
- T228
- Material
- Technopolymer
