Pneumax

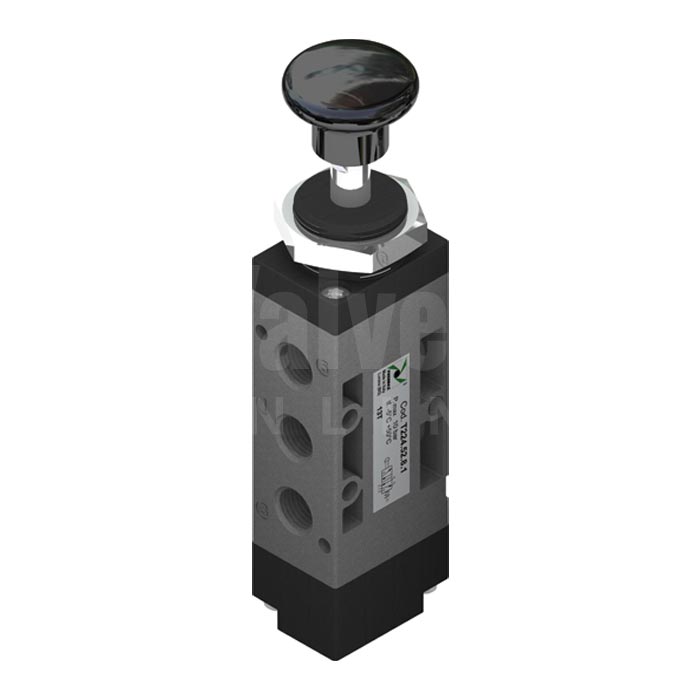

Series T224 Push Button Pneumatic Valve 3/2 & 5/2 - 1/4"
SKU PV5688
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumax Series 224
- Spring Return or 2 Position
- 3/2 or 5/2
- Technopolymer body
- Operating force: 50N (Spring Return), 13N (2 Position)
- Max Working Pressure: 10 bar
- Flow Rate: 1050 Nl/min
- 1/4" Ported
- Orifice size: 8.5mm
Description
Pneumax Tecno 224 palm push button mechanical valve with 1/4" connections that can be offered with a multitude of actuator mechanisms.
This pneumatic push button is available in 3/2 or 5/2, spring return (push and spring to original state) or 2 position (Push to Open and Push to return to its original state).
The main components constituting the valves of the TecnoECO series are manufactured with high performance technopolimer. The use of tecnopolimer has resulted in a light weight product which can be offered to the market at competative prices
Pneumax Series T224 Push Button Pneumatic Valve Datasheet
Technical specification
- Operator
- Button
- Position
- 3/2, 5/2
- Connection
- 1/4"
- Series
- T224
- Material
- Technopolymer
