Images are illustrative and may not show every size or variation.
Pneumax

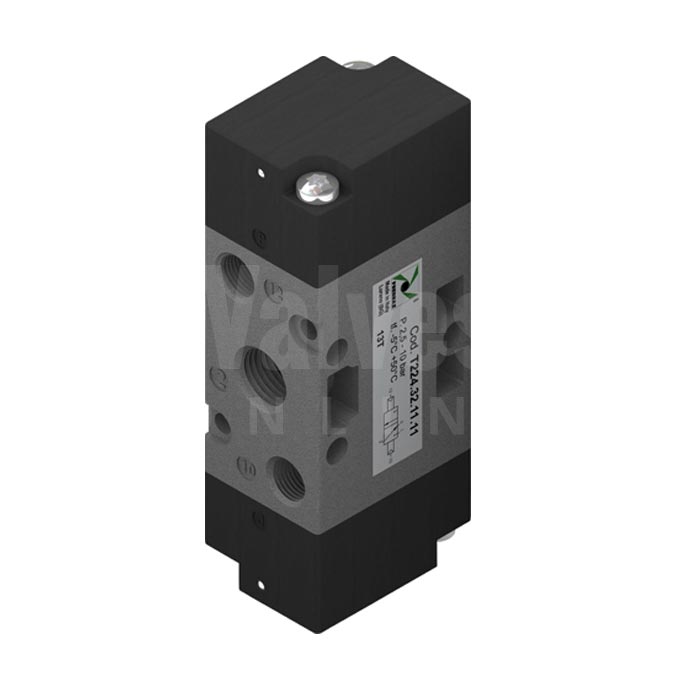

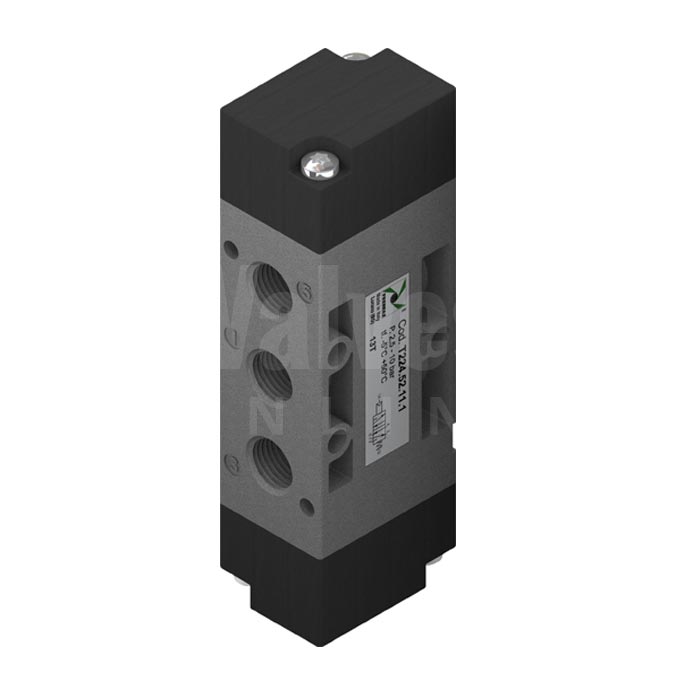

Series T224 Mechanical Pneumatic Valve 3/2 & 5/2 - 1/4"
SKU PV5687
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumax Series T224
- Technopolymer body
- NBR seals
- 3/2 or 5/2 versions
- Working port size 1/4"
- Pilot port size: 1/8"
- Orifice Size: 8.5mm
- Working Pressure:
- 2.5 - 10 bar (Pneumatic-Spring)
- 2 - 10 bar (Pneumatic-Pneumatic)
Description
Pneumax Tecno 224 series mechanical spool valve with 1/4" working port connection and 1/8" pilot port. Available in 3/2 or 5/2, Pneumatic - Spring or Pneumatic - Pneumatic.
The Pneumatic - Spring mechanical spool valve operates via an air pilot and spring return. This valve operates similar to a solenoid in the fact that the communication signal is remote. Minimum working pilot pressure 2.5 bar.
The Pneumatic - Pneumatic mechanical spool valve operates via an air pilot supply for both directions to drive the valve. This valve operates similar to a solenoid in the fact that the communication signal is remote. Minimum working pilot pressure 2 bar.
The body is manufactured in technopolymer and seals are all in NBR rubber. Suitable for use with filtered and lubricated air.
Pneumax Series T224 Mechanical Pneumatic Valve Datasheet
Technical specification
- Operator
- Air Piloted
- Position
- 3/2, 5/2
- Connection
- 1/4"
- Series
- T224
- Material
- Technopolymer
