Images are illustrative and may not show every size or variation.
Pneumax

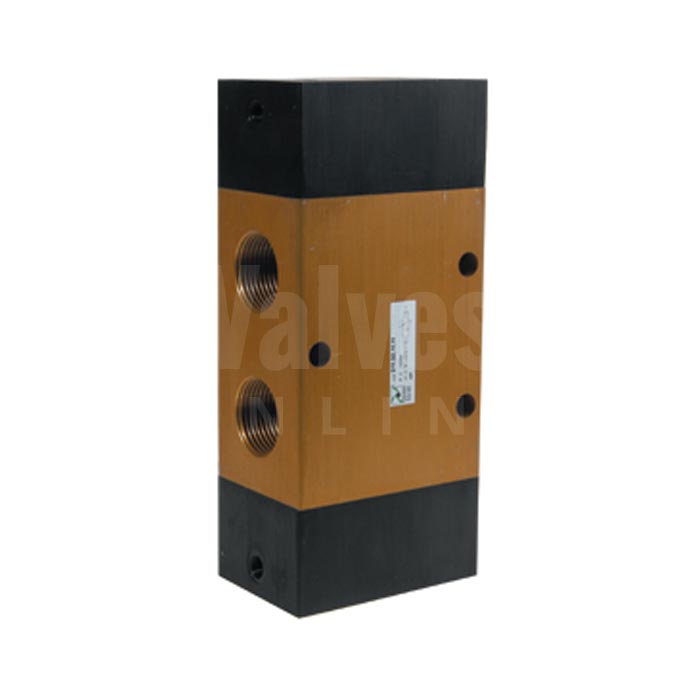

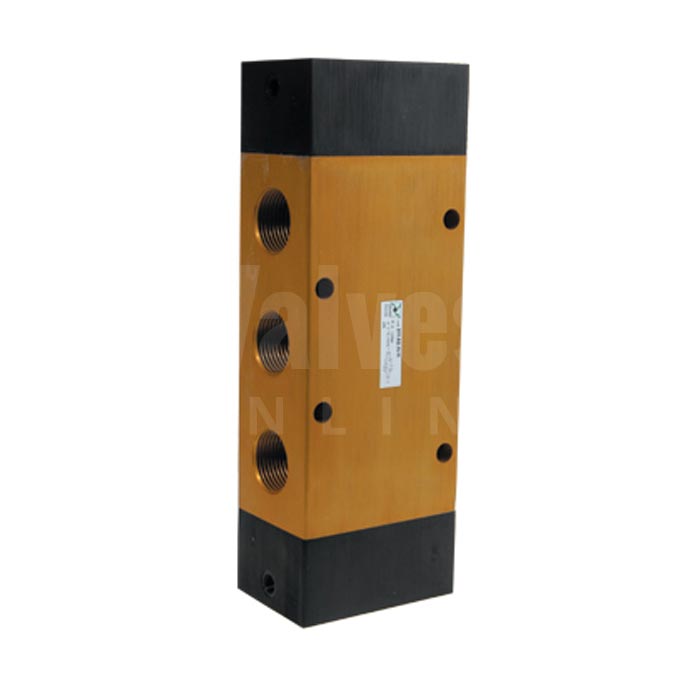

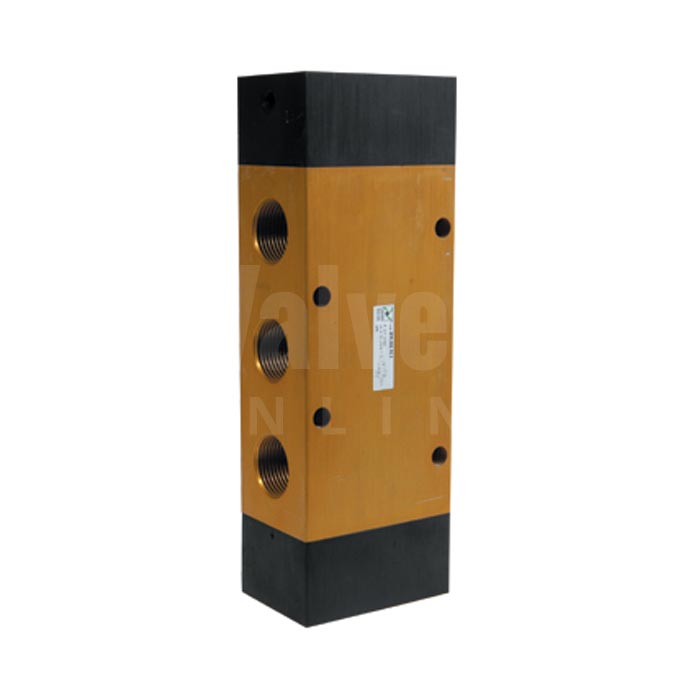

Series 211 Mechanical Pneumatic Valve 3/2 & 5/2 - 1"
SKU PV5692
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumax Series 211
- Aluminium body
- NBR seals
- 3/2 or 5/2 versions
- Working port size: 1"
- Pilot port size: 1/8"
- Orifice size: 20mm
- Working Pressure:
- 2.5 - 10 bar (Pneumatic-Spring)
- 2 - 10 bar (Pneumatic-Pneumatic)
Description
Pneumax Series 211 3/2 or 5/2 mechanical spool valve with 1" working port connection and 1/8" pilot port. Available in either Pneumatic - Spring or Pneumatic - Pneumatic.
The Pneumatic - Spring mechanical spool valve operates via an air pilot and spring return. This valve operates similar to a solenoid in the fact that the communication signal is remote. Minimum working pilot pressure 2.5 bar.
The Pneumatic - Pneumatic mechanical spool valve operates via an air pilot supply for both directions to drive the valve. This valve operates similar to a solenoid in the fact that the communication signal is remote. Minimum working pilot pressure 2 bar.
The body is manufactured in robust aluminium and seals are all in NBR rubber. Suitable for use with compressed air with or without lubrication.
Pneumax Series 211 Mechanical Pneumatic Valve Datasheet
Technical specification
- Operator
- Air Piloted
- Position
- 3/2, 5/2
- Connection
- 1"
- Series
- 211
- Material
- Aluminium
