Images are illustrative and may not show every size or variation.
Plimat

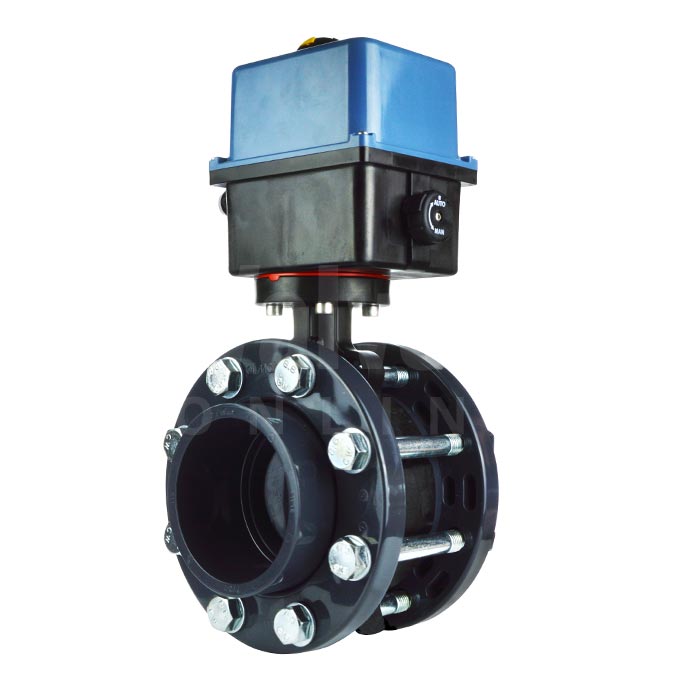

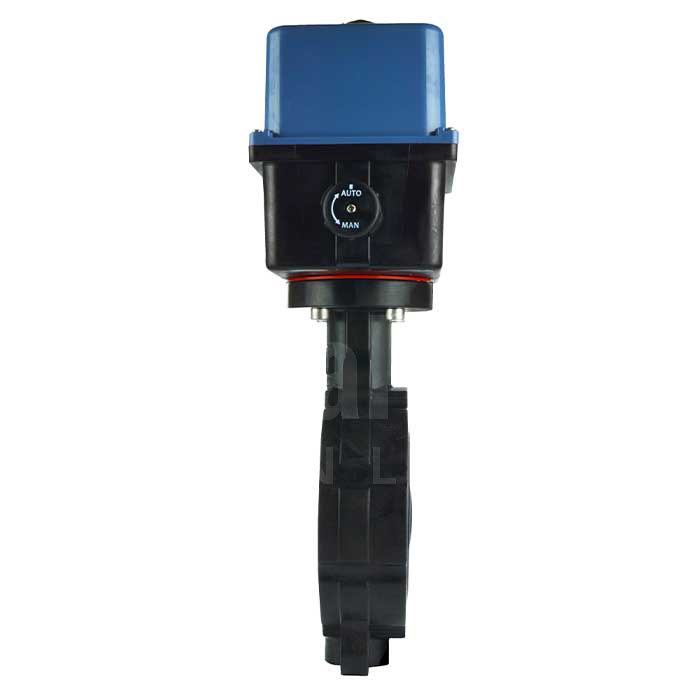

PVC Butterfly Valve with Electric Actuator
SKU EE4810
Sizes: 63 - 75mm, 90mm, 110mm, 125 - 140mm, 160mm, 200 - 225mm
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electrically Actuated PVC Butterfly Valve
- On/Off, Modulating & Battery Backup versions
- Offset Disc Design
- PVC Disc
- EPDM Liner
- Stainless Steel Shaft
- Pressure Range: PN10
- Imperial 2 1/2" to 8"
- Metric 75mm to 225mm
- Flange Kits Available
Description
This actuated high performance PVC butterfly valve is fitted to a powerful Electric Actuator and offered with various options for On/Off duty, Modulating or Failsafe Close on loss of electrical power (battery backup) functions.
This motorised valve has a multitude of industrial uses and is specifically designed for arduous applications.
The pvc butterfly valve is suitable to fit between PN10 flanges and features an EPDM liner with a double eccentric (offset design) ensuring less wear on the disc seal when opening and closing and offers a reduced torque.
The actuator is supplied directly mounted to the valve, reducing the cost of the unit, coupled with easy wire Din plugs on the 3003 version, cable glands in the 3005 and optical position indicator on both as standard ensures a reliable and trouble free combination.
Actuator Options:
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN10
- Body Material
- PVC-U
- Size
- 63 - 75mm, 90mm, 110mm, 125 - 140mm, 160mm, 200 - 225mm
- Disc Material
- PVC-U
- Liner
- EPDM
