Images are illustrative and may not show every size or variation.
Plimat

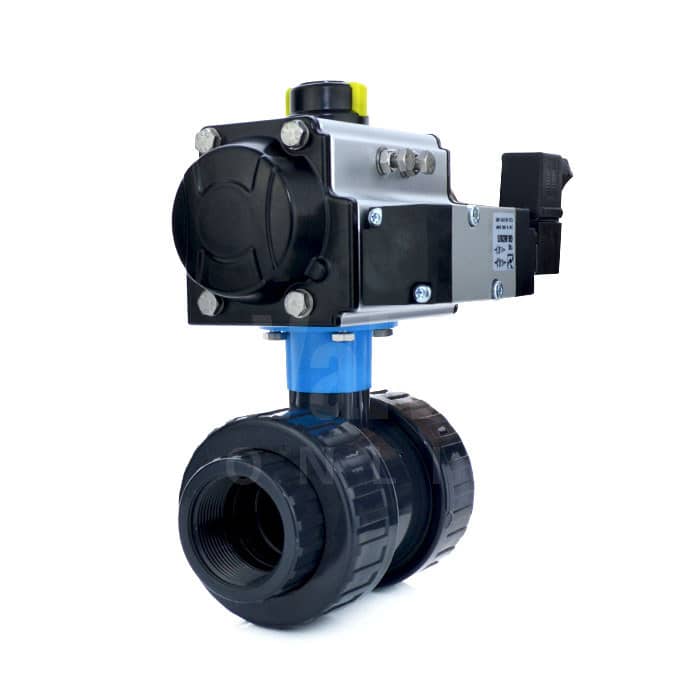

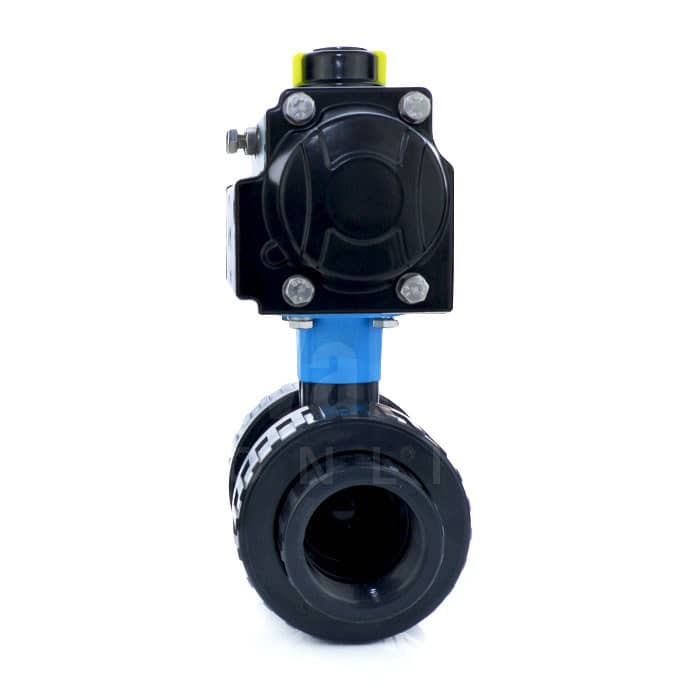

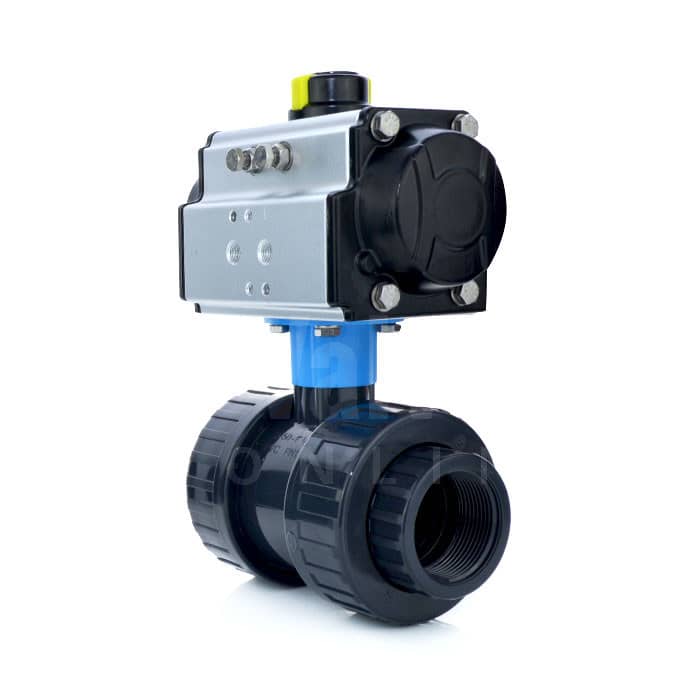

Pneumatic Actuated PVC Ball Valve
SKU PE4400
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated PVC Ball Valve
- PVC True Union Ends
- EPDM seats
- Imperial or Metric Solvent Socket or BSP Threaded
- Both Imperial & Metric Ends Supplied with Valve
- Sizes 1/2" to 2 & 20mm to 63mm
- Pressure range: 10 Bar
- WRAS Approved Ball Valve
Description
A Pneumatically Actuated PVC Ball Valve that offers excellent value for money. Suitable for use with a wide range of chemical, water treatment, clean water, swimming pool and light industrial applications.

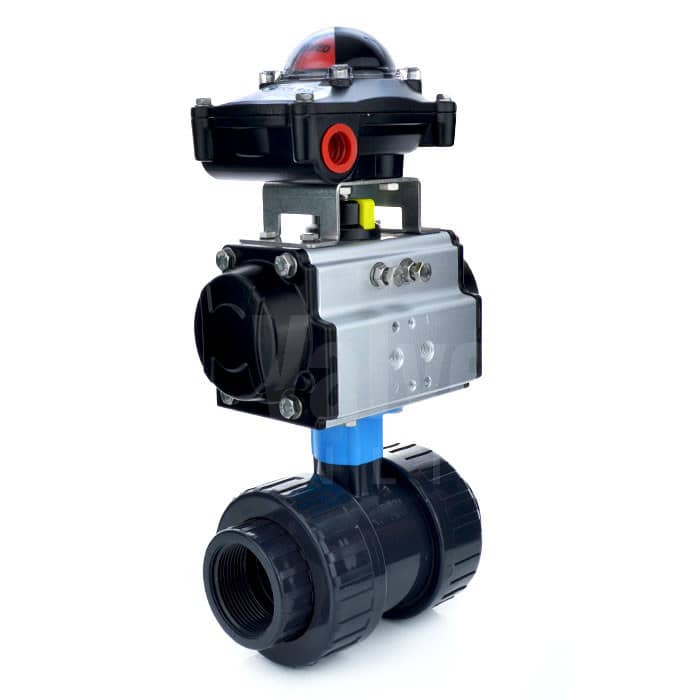

Pneumatic Actuation options include either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
The industrial series PVC-U ball valve with EPDM seats is available with threaded ends or solvent socket (we supply both metric and imperial end to avoid any confusion), it has a specially designed mounting platform that couples both valve and actuator together.
Offers excellent flow characteristics, mechanical strength, minimal pressure drop and resistance to many inorganic chemicals.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Pneumatic Actuated PVC Ball Valve Datasheet
Pneumatic Actuator Datasheet
Economy Pilot Solenoid Datasheet
Switchbox Datasheet
Technical specification
- End Connection
- BSP, Imperial Solvent Socket, Metric Solvent Socket
- Body Material
- PVC-U
- Seat Material
- EPDM
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
- Design
- Double Union
- Temperature Range
- 0°C to 40°C
- Pressure
- Up to: 10 bar
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
