Images are illustrative and may not show every size or variation.
VOLT

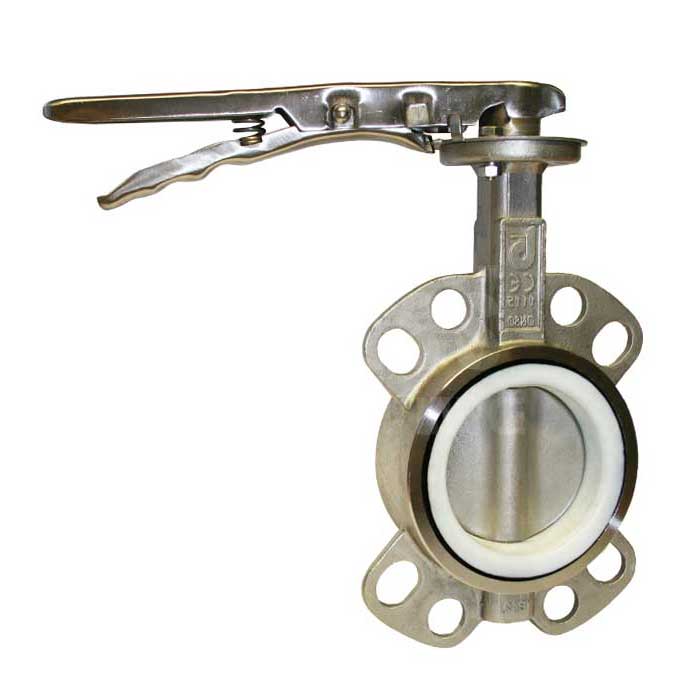

PTFE Lined Stainless Steel Butterfly Valve
SKU BF5016
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- White PTFE Lined Butterfly Valve
- 316 Stainless Steel Body, Shaft & Disc
- Wafer Pattern
- PTFE liner
- Lever (up to 5") or Gearbox Operator
- Sizes: 2" to 8"
- To fit between PN6/10/16, ANSI 150, Table D & Table E flanges
- For Semi Aggressive Chemicals
Description
Our Stainless-Steel Butterfly Valve with PTFE Liner is a reliable manual butterfly valve featuring a 316 Stainless Steel body, shaft and disc and an ISO mounting top to assist on actuation. It is suitable for a wide range of chemical, process and aggressive or corrosive environments, where the aseptic value of Stainless Steel is a requirement.
This butterfly valve is maintenance free, economical and suitable to fit between PN6/10/16, ANSI 150, Table D and Table E flanges.
Complies with 97/23/CE (PED) Directive CE 1115.

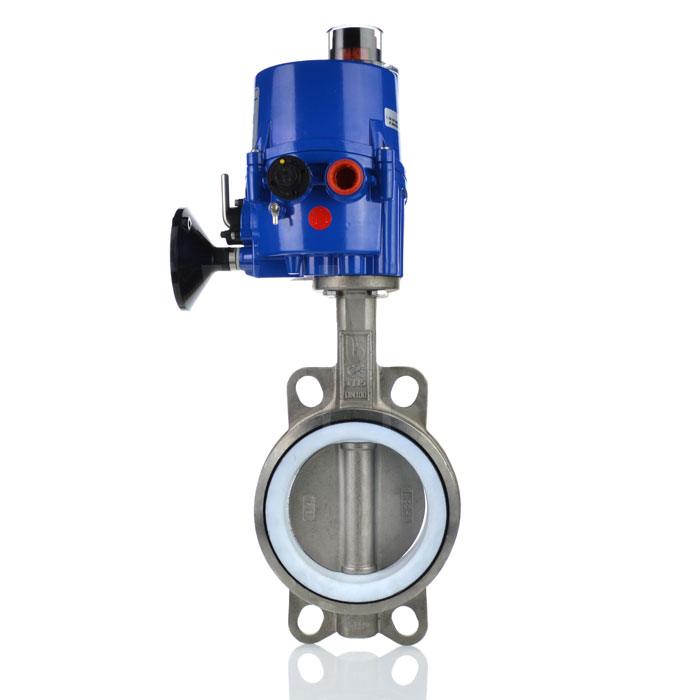

Electric or pneumatic actuation available with a choice of options including solenoid and/or switchbox.
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Stainless Steel, Stainless Steel 316L
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Disc Material
- Stainless Steel 316L
- Liner
- PTFE
- Main Features
- 2" to 8" Fits between PN6/10/16, ANSI 150, Table D & Table E Flanges PTFE Liner
