Images are illustrative and may not show every size or variation.
Bardiani
Pneumatic Actuated Bardiani Metric Weld Hygienic Butterfly Valve
SKU PA4509
Sizes: 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Bardiani ZVF Pneumatic Actuated Butterfly Valve
- Plain Metric Weld End Connections
- DIN 11850-2
- AISI 316L Stainless Steel (1.4404)
- EPDM Seal
- Sizes: DN25 to DN100
- 10 Bar (145 psi) Max Pressure
- Spring Return Actuator
Description
This high quality Bardiani ZVF hygienic pneumatic actuated butterfly valve with plain ended metric connections and EPDM seals is suitable for automatic isolation of process pipeline fluids.
The valve body and disc is manufactured in AISI 316L (1.4404) stainless steel with a surface finish standard Ra 0.8µm.
The J-Giotto Control Top (2pnp sensors, 1 Solenoid & LED terminal board) is availabled as an option.

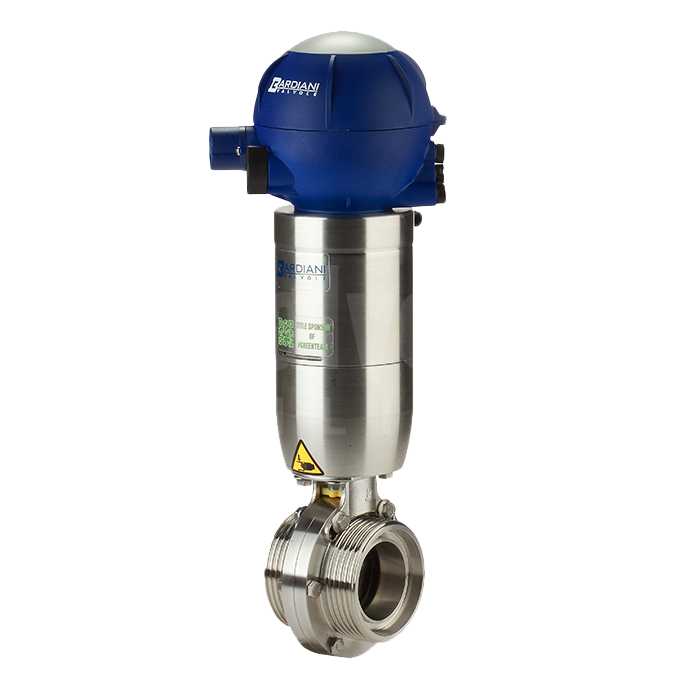

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product. Current image shows the valve with RJT Connections with Giotto Top.
Pneumatic Actuated Bardiani Metric Weld Hygienic Butterfly Valve Datasheet
Technical specification
- Design
- OD Weld End
- Body Material
- Stainless Steel 316L
- Size
- 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Disc Material
- Stainless Steel 316L
