ARI-Armaturen

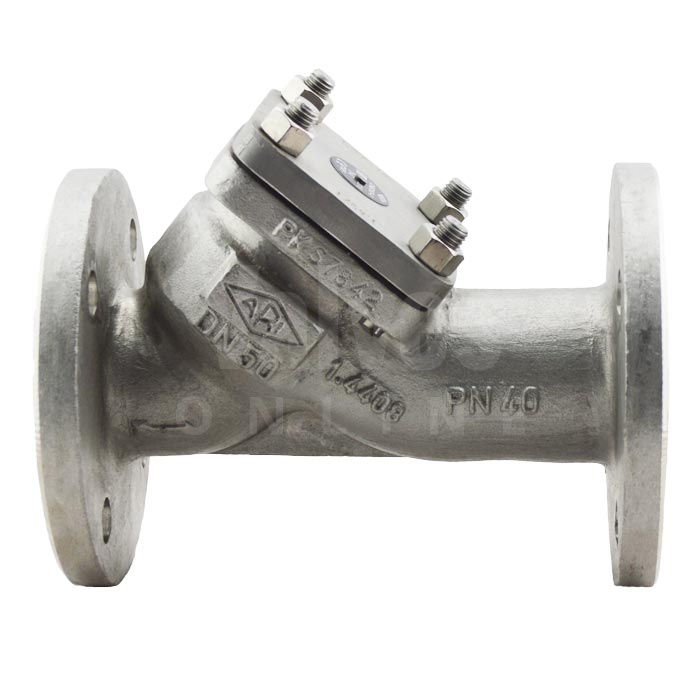

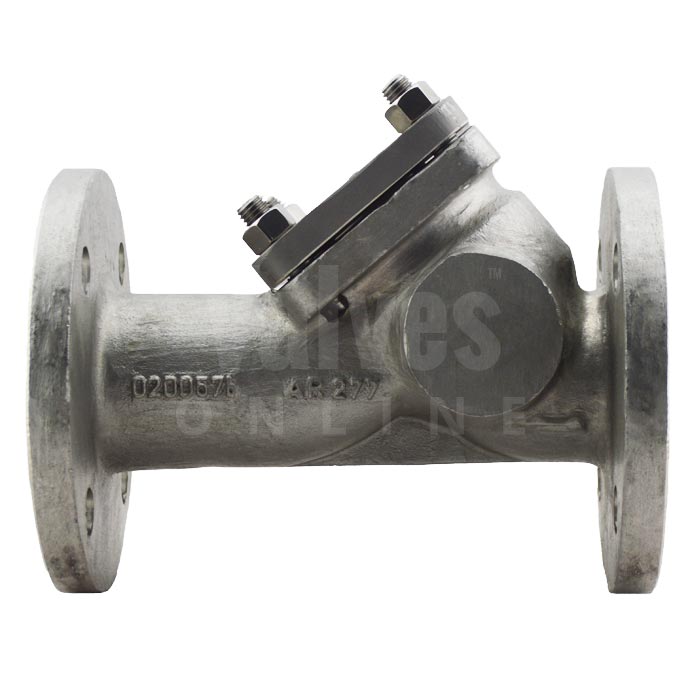

PN40 Stainless Steel ARI CHECKO-V Y Pattern Non-return Check Valve
SKU CV5422
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN40 Stainless Steel ARI CHECKO-V Y Pattern Non-return Check Valve
- Fig. 55.039 Y Pattern Check Valve with metallic sealing
- PN40 Flanged Connection
- Stainless Steel (1.4408) Body
- Up to 400°C Temperature Rated
- DN15 to DN300 (½” to 12”) Available
Description

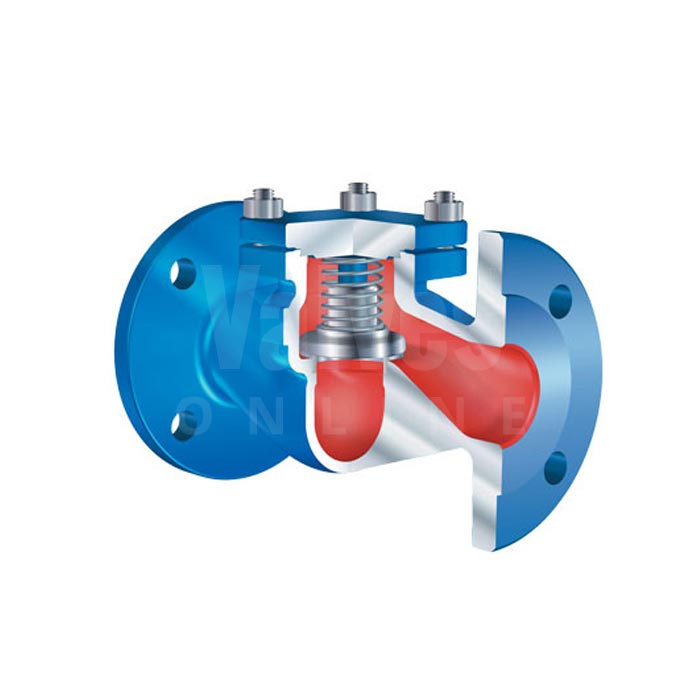

The ARI CHECKO-V check valve utilises a sprung piston type closure to prevent backflow. The Stainless Steel valve utilises a Y Pattern Body and PN40 pressure rating.
Suitable for industrial uses in applications such as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil. Stainless Steel construction means that even mildly aggressive applications are suitable.
Options available upon request include PTFE plug design (max 200°C) and special flange drillings.
PN40 Stainless Steel ARI CHECKO-V Y Pattern Non-return Check Valve Datasheet
Technical specification
- End Connection
- Flanged PN40
- Design / Type
- Y Pattern
- Industry / Approvals
- High Temperature
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Main Features
- DN15 to DN300 (1/2” to 12”) Up to 400°C PN40 Rated
