Images are illustrative and may not show every size or variation.
ARI-Armaturen
PN40 Cast Steel ARI CHECKO-V Non-return Check Valve
SKU CV5421
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN40 Cast Steel ARI CHECKO-V Non-return Check Valve
- Fig. 35.003 Check Valve with metallic sealing
- PN40 Flanged Connection
- Cast Steel (1.0619+N) Body
- Up to 450°C Temperature Rated
- DN15 to DN300 (½” to 12”) Available
Description

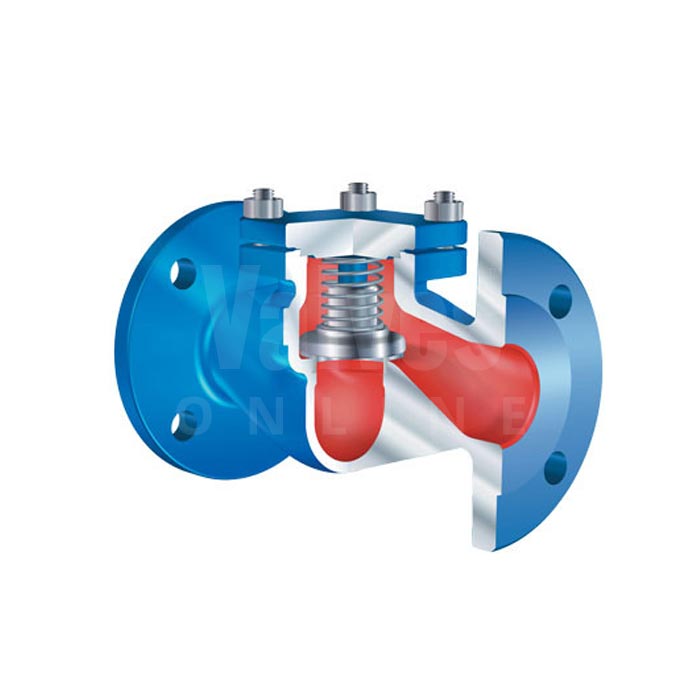

The ARI CHECKO-V check valve utilises a sprung piston type closure to prevent backflow.
Suitable for industrial uses in applications such as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil.
Options available upon request include PTFE plug design (max 200°C) and special flange drillings.
PN40 Cast Steel ARI CHECKO-V Non-return Check Valve Datasheet
Technical specification
- End Connection
- Flanged PN40
- Design / Type
- Piston Check
- Industry / Approvals
- High Temperature
- Body Material
- Cast Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Main Features
- DN15 to DN300 (1/2” to 12”) Up to 450°C PN40 Rated
