ARI-Armaturen

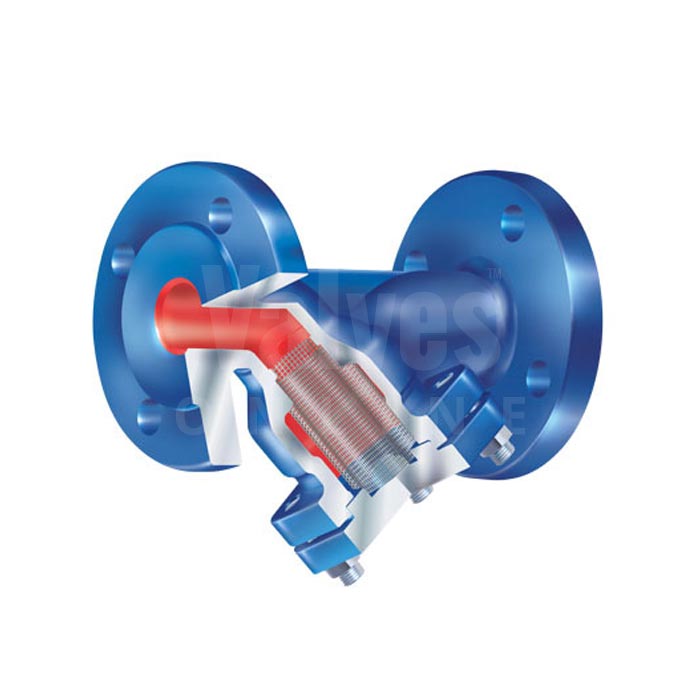

PN40 Cast Steel ARI Strainer
SKU YS5417
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN40 Cast Steel ARI Strainer
- Fig. 35.050 Y Pattern Strainer
- PN40 Flanged Connection
- Cast Steel (1.0619+N) Body / Stainless Steel 1.4301 Basket
- Up to 450°C Temperature Rated
- DN15 to DN300 (½” to 12”) Available
- Std Screen = DN15-DN50 1mm, DN65-DN80 1.25mm, DN100-DN300 1.6mm
- Fine Screen = 0.25mm
Description
The ARI Strainer is ideal for duties requiring the protection of valves and plant equipment from particulates and debris, offering the standard and fine screens for effective filtration down to 0.25mm.
Suitable for industrial uses in applications such as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil.
Options available upon request include supporting baskets for high differential pressures, holes for differential pressure measurement, bar magnet, Plug screw with magnet and special flange drillings.
PN40 Cast Steel ARI Strainer Datasheet
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Cast Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Filtration
- 0.25mm (Mesh 60), 1mm (Mesh 19), 1.25mm (Mesh 15.4), 1.6mm (Mesh 12)
- Design
- Y Type
- Industry / Approvals
- Steam
