Home / Strainers & Sight Glasses
Images are illustrative and may not show every size or variation.
ARI-Armaturen

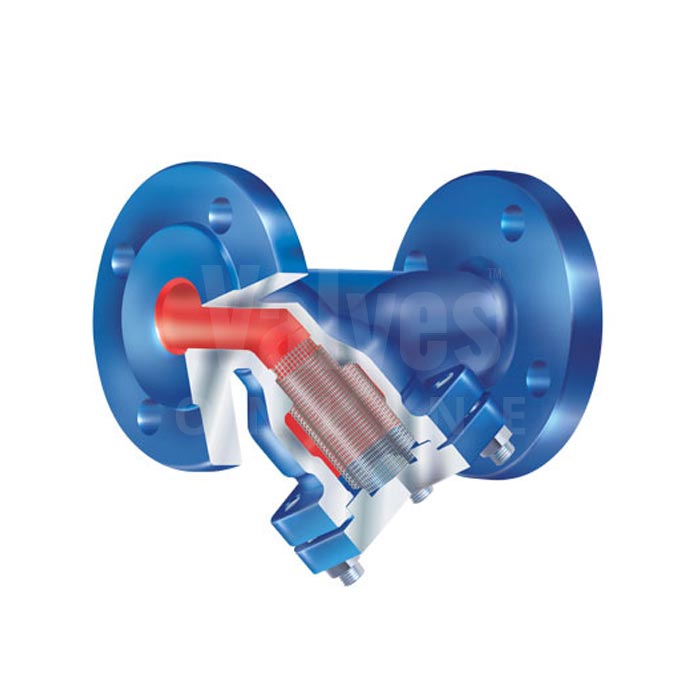

PN16 Cast Iron ARI Strainer
SKU YS5415
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN16 Cast Iron ARI Strainer
- Fig. 12.050 Y Pattern Strainer
- PN16 Flanged Connection
- Cast Iron (EN-JL1040) Body / Stainless Steel 1.4301 Basket
- Up to 300°C Temperature Rated
- DN15 to DN300 (½” to 12”) Available
- Std Screen = DN15-DN50 1mm, DN65-DN80 1.25mm, DN100-DN300 1.6mm
- Fine Screen = 0.25mm
Description
The ARI Strainer is ideal for duties requiring the protection of valves and plant equipment from particulates and debris, offering the standard and fine screens for effective filtration down to 0.25mm.
Suitable for industrial uses in applications such as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil.
Options available upon request include supporting baskets for high differential pressures, holes for differential pressure measurement, bar magnet, Plug screw with magnet and special flange drillings.
PN16 Cast Iron ARI Strainer Datasheet
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Cast Iron
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Filtration
- 0.25mm (Mesh 60), 1mm (Mesh 19), 1.25mm (Mesh 15.4), 1.6mm (Mesh 12)
- Design
- Y Type
- Industry / Approvals
- Steam
