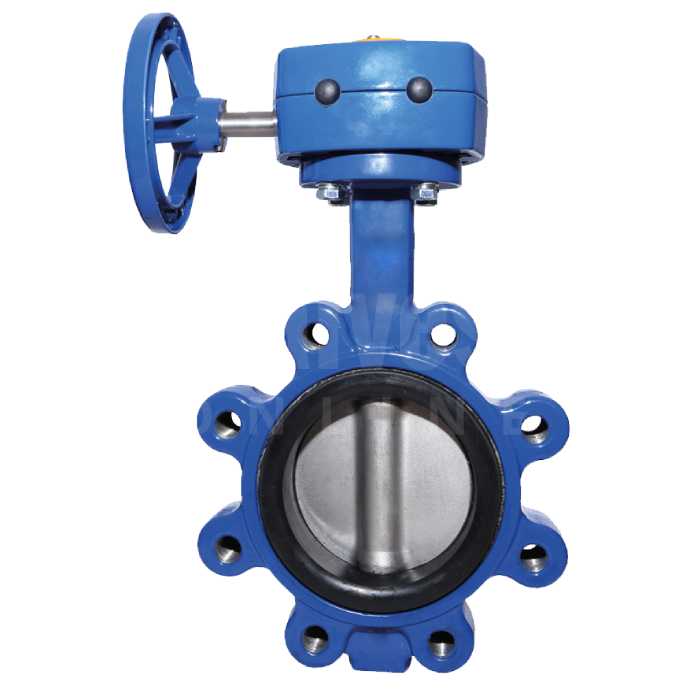

PN25 Ductile Iron Butterfly Valve - Lugged & Tapped with Gearbox
SKU BF5021
from£981.32ex VAT Not the right one? Identify your valve by photo
Sizes: 8" (DN200), 10" (DN250), 12" (DN300)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN25 Butterfly Valve with Gearbox
- Lugged & Tapped
- Ductile Iron Epoxy Coated Body
- Stainless Steel Disc
- EPDM Liner
- To Suit PN25 Flanges
- Sizes: 8" to 12"
- Gearbox Operated
- WRAS Approved
Description
This gearbox operated PN25 ductile iron butterfly valve is well suited to meet the demands in today's HVAC industry and applications.
Fully lugged and tapped to suit PN25 flanges, with an epoxy coated ductile iron body, stainless steel disc and vulcanised liner, it is PN25 rated and has a temperature range of -10°C to 110°C.
This valve offers trouble free isolation and is operated via a handwheel operated gearbox.
PN25 Ductile Iron Butterfly Valve - Lugged & Tapped with Gearbox Datasheet
Technical specification
- Design
- Lugged, Lugged + Tapped
- Flange Accommodation
- PN25
- Body Material
- Ductile Iron
- Size
- 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel, Stainless Steel 316L
- Liner
- EPDM
- Industry / Approvals
- WRAS, HVAC
- Main Features
- 8" to 12" To Suit PN25 Flanges EPDM Liner
