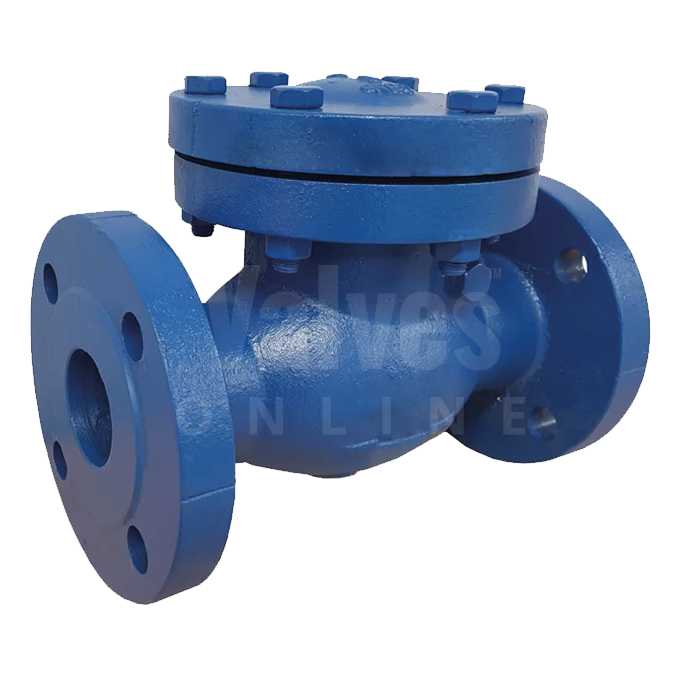

PN25 Cast Iron Flanged Swing Check Valve
SKU CV5190
from£358.64ex VAT Not the right one? Identify your valve by photo
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN25 Flanged Swing Check Valve
- Cast Iron Body
- Flanged PN25
- Bronze Trim
- Sizes: 2" to 12"
Description
The CV5190 is a robust, high quality cast iron swing check valve, well suited to meet the demands in today's HVAC industry.
The swing check valve is drilled to suit PN25 flanges, fitted with a cast bronze seat and is virtually maintenance free.
Can be fitted in the horizontal position or in the vertical position with the flow going upwards. Closing tightness according to EN12334.
Technical specification
- End Connection
- Flanged PN25
- Design / Type
- Swing Check
- Industry / Approvals
- HVAC
- Body Material
- Cast Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Main Features
- 2" to 12" PN25 Rated -10°C to 230°C
