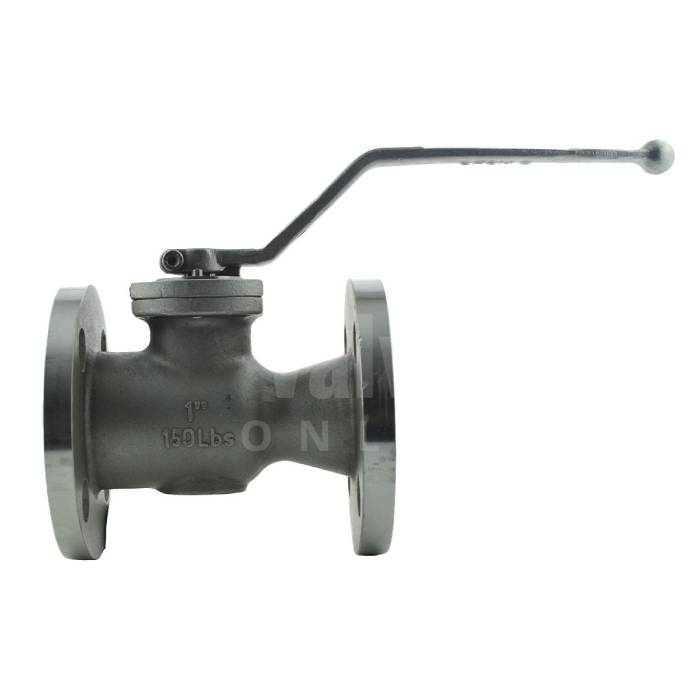

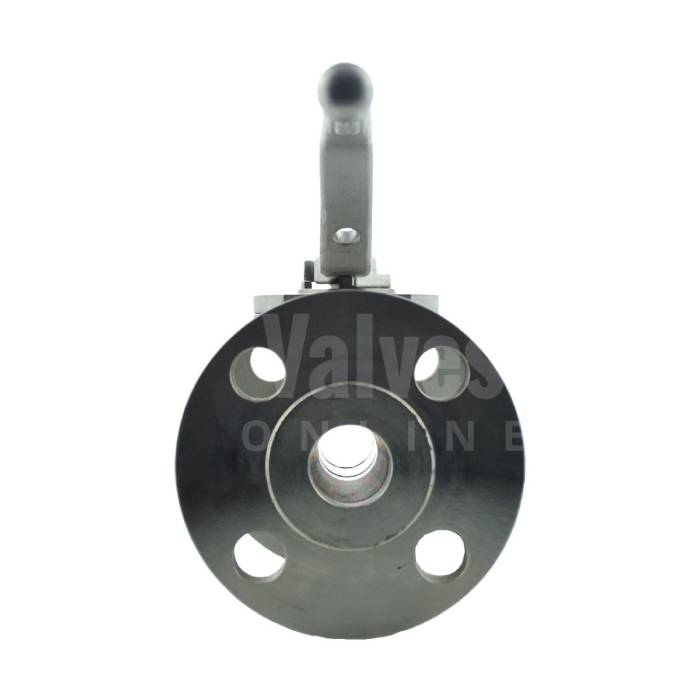

PEKOS Stainless Steel Reduced Bore Flanged ANSI 150 Ball Valve
SKU BV5717
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Stainless Steel Body
- Reduced Bore
- Flanged ANSI 150
- 1 Piece Design
- Sizes 1/2" to 8"
- Pressure Rated: Class 150
- ATEX Approved
Description
This Pekos Fig ZRB 16 TTTGV ANSI 150 Stainless Steel Reduced Bore Ball Valve is a stainless steel 1 piece body, reduced bore ATEX certified ball valve suitable for a wide range of industries.
This industry leading ball valve is manufactured to many standards including: API 598,API 6D, BS 6755-1, API 6D, B16.34, ANSI B16.5, ANSI B16.10, ISO 5211 and NACE MR0175 and carries a wide range of approvals including: Fire Safe, TA-Luft, ATEX 94-9EC, API 6D, PED 97/23/CE, SIL 3 Capable and EN161/EN264.
As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200)
- Design
- 1 Piece
- Lever
- Manual Lever (Gearbox on request)
- Temperature Range
- -29°C to 180°C (increased range on request)
- Pressure
- Class 150 Rated
- Main Features
- Flanged ANSI 150 Reduced Bore 1/2" to 8"
