PEKOS

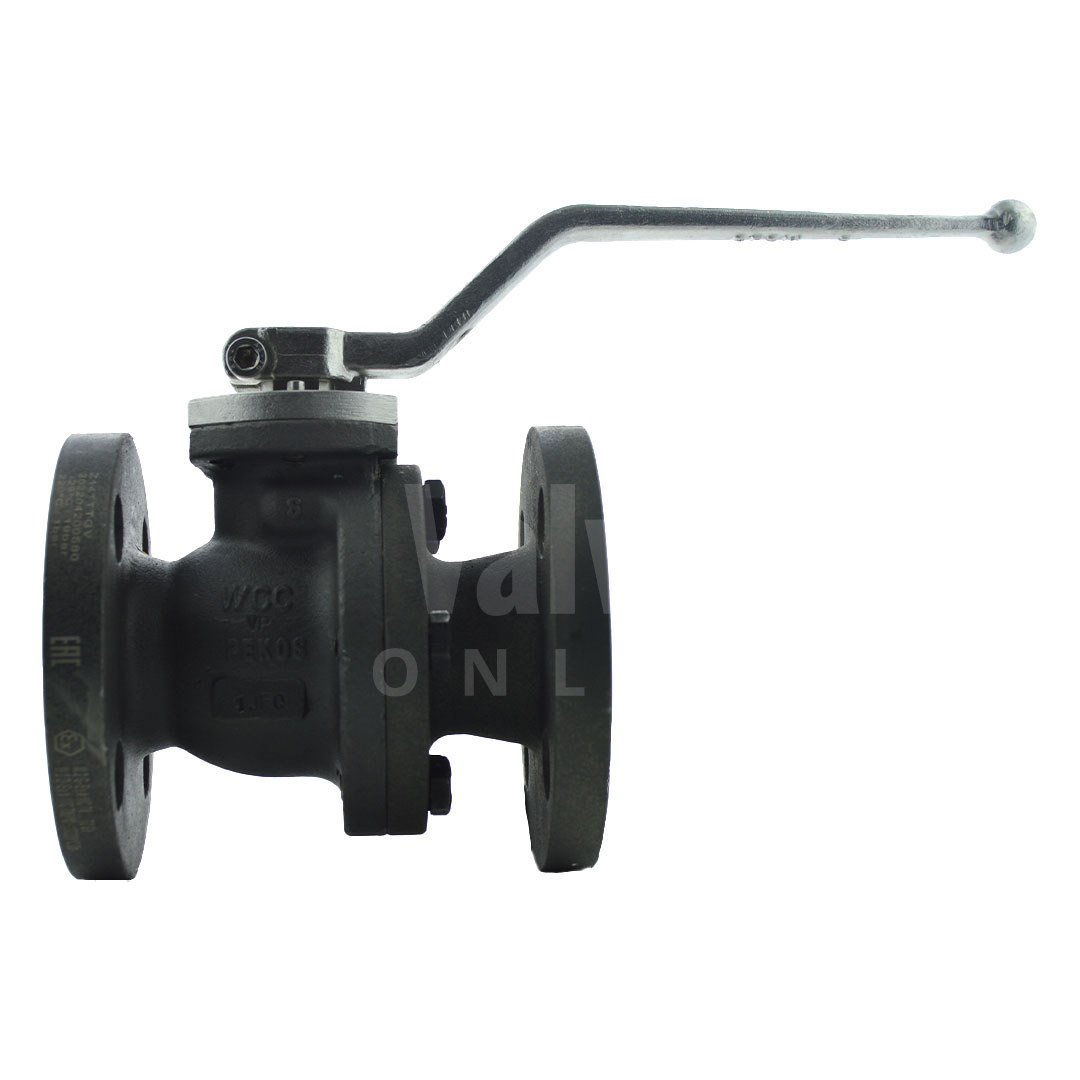

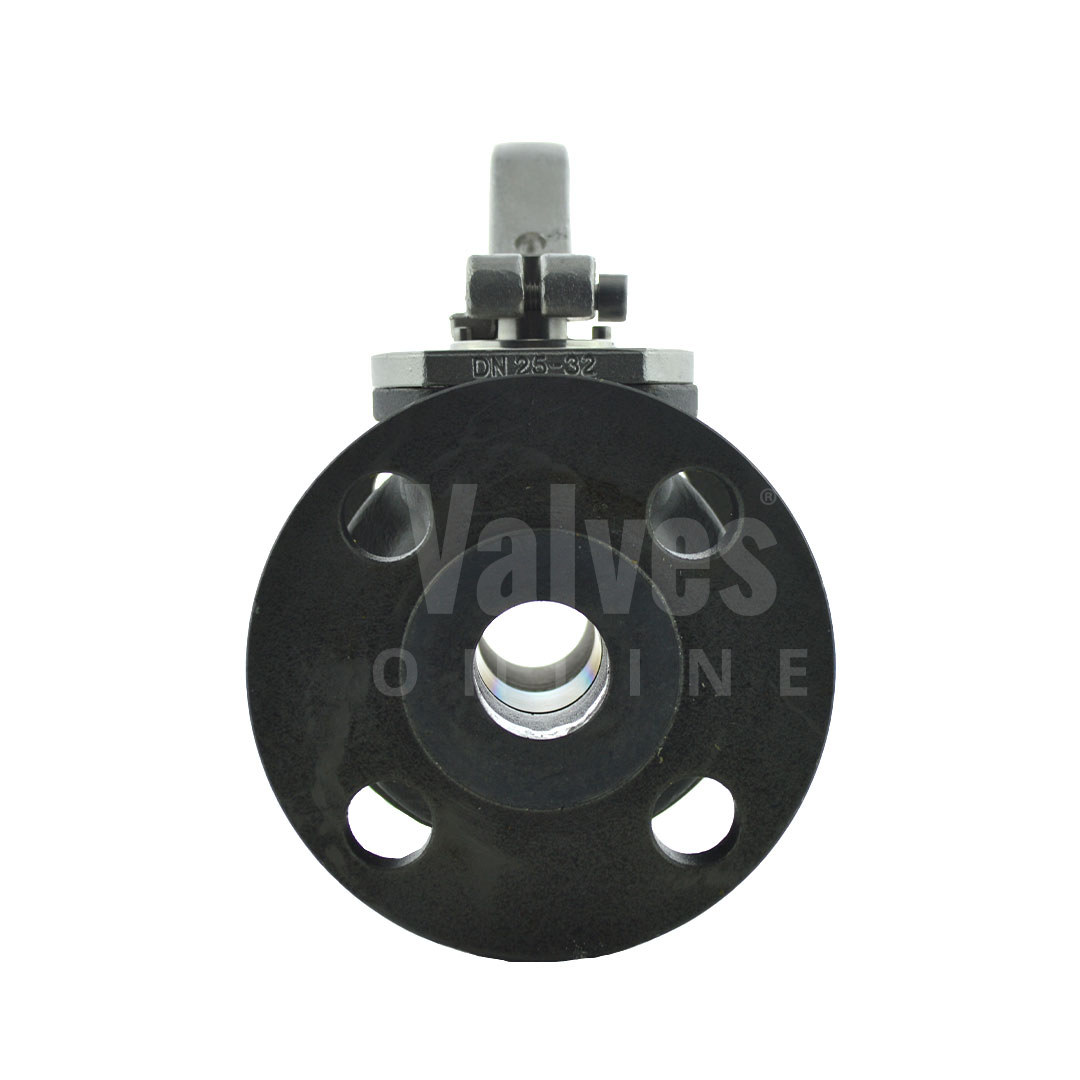

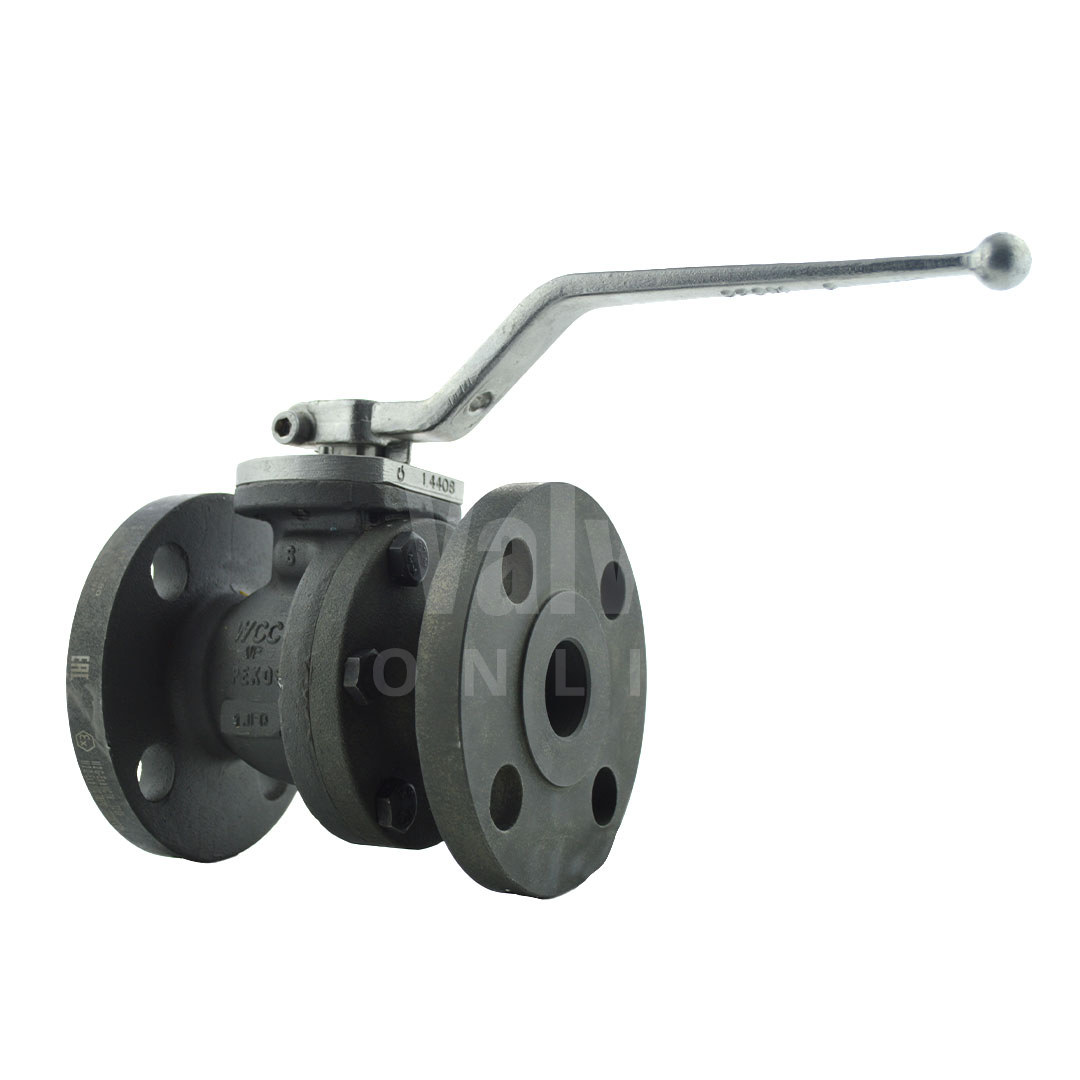

PEKOS Carbon Steel Full Bore Flanged ANSI 300 Ball Valve
SKU BV5718
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Carbon Steel Body
- Full Bore
- 2 Piece Design
- Flanged ANSI 300
- Sizes 1/2" to 4"
- Pressure Rated: Class 300
- ATEX Approved
Description
This Pekos Fig Z 34 SSGVV ANSI 300 Carbon Steel Full Bore Ball Valve is a Carbon steel two piece body, full bore ATEX certified ball valve suitable for a wide range of industries. The valve is a split body meaning it can be easily maintained and full spares kits are available.
This industry leading ball valve is manufactured to many standards including: API 598,API 6D, BS 6755-1, API 6D, B16.34, ANSI B16.5, ANSI B16.10, ISO 5211 and NACE MR0175 and carries a wide range of approvals including: Fire Safe, TA-Luft, ATEX 94-9EC, API 6D, PED 97/23/CE, SIL 3 Capable and EN161/EN264.
As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.
Technical specification
- End Connection
- Flanged ANSI 300
- Body Material
- Carbon Steel
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Lever
- Manual Lever (Gearbox on request)
- Temperature Range
- -29°C to 180°C (increased range on request)
- Pressure
- Class 300 Rated
- Main Features
- Flanged ANSI 300 Full Bore 1/2" to 4"
