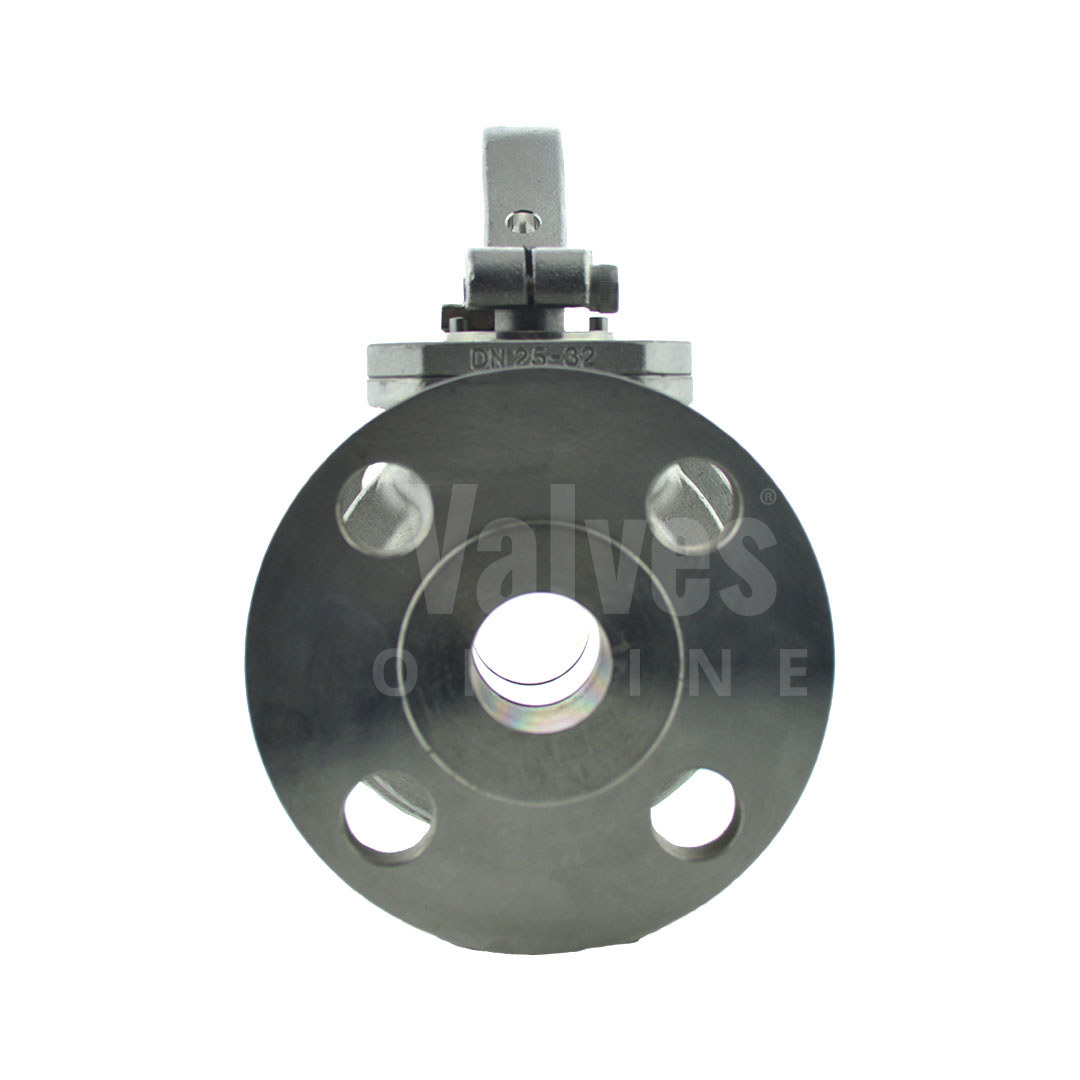

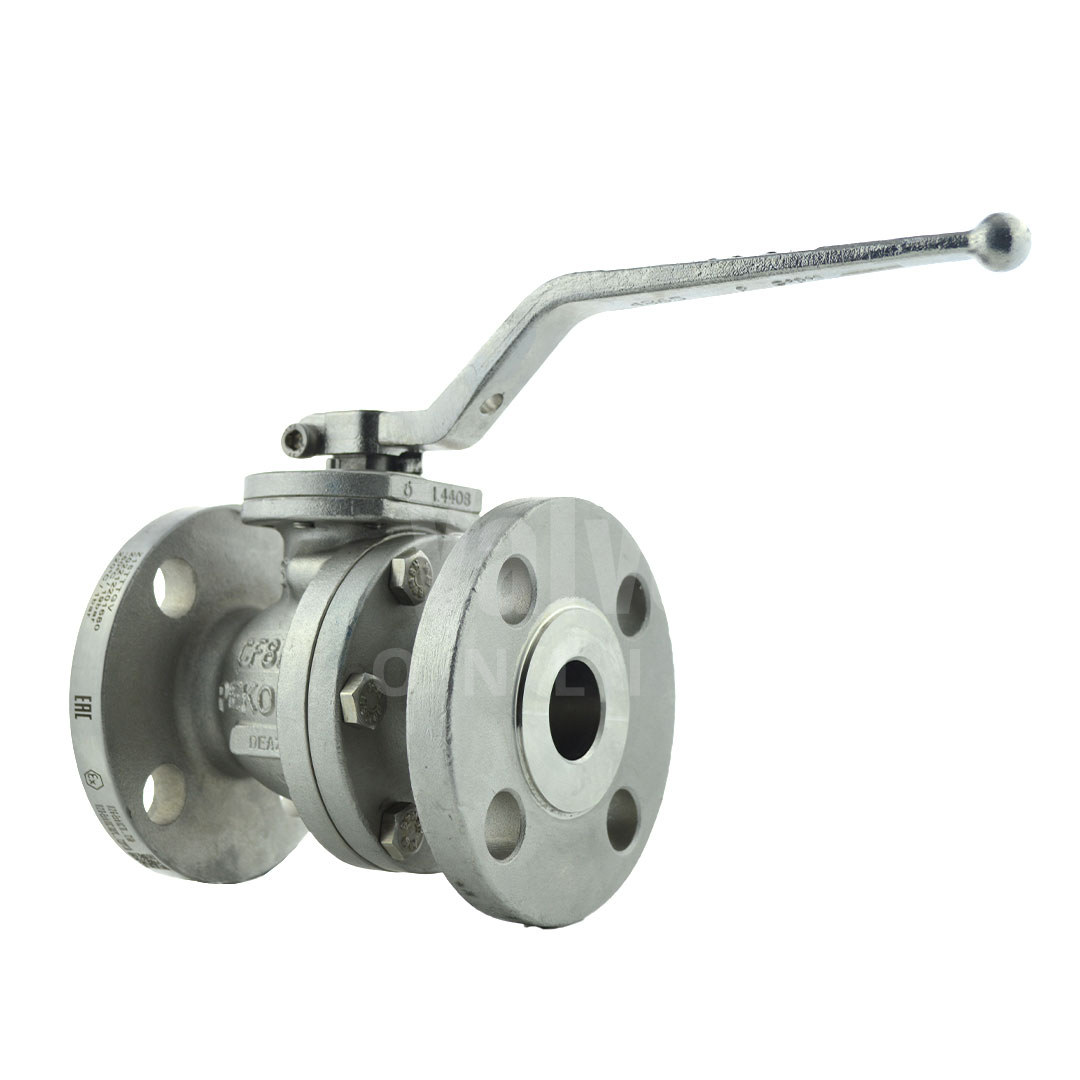

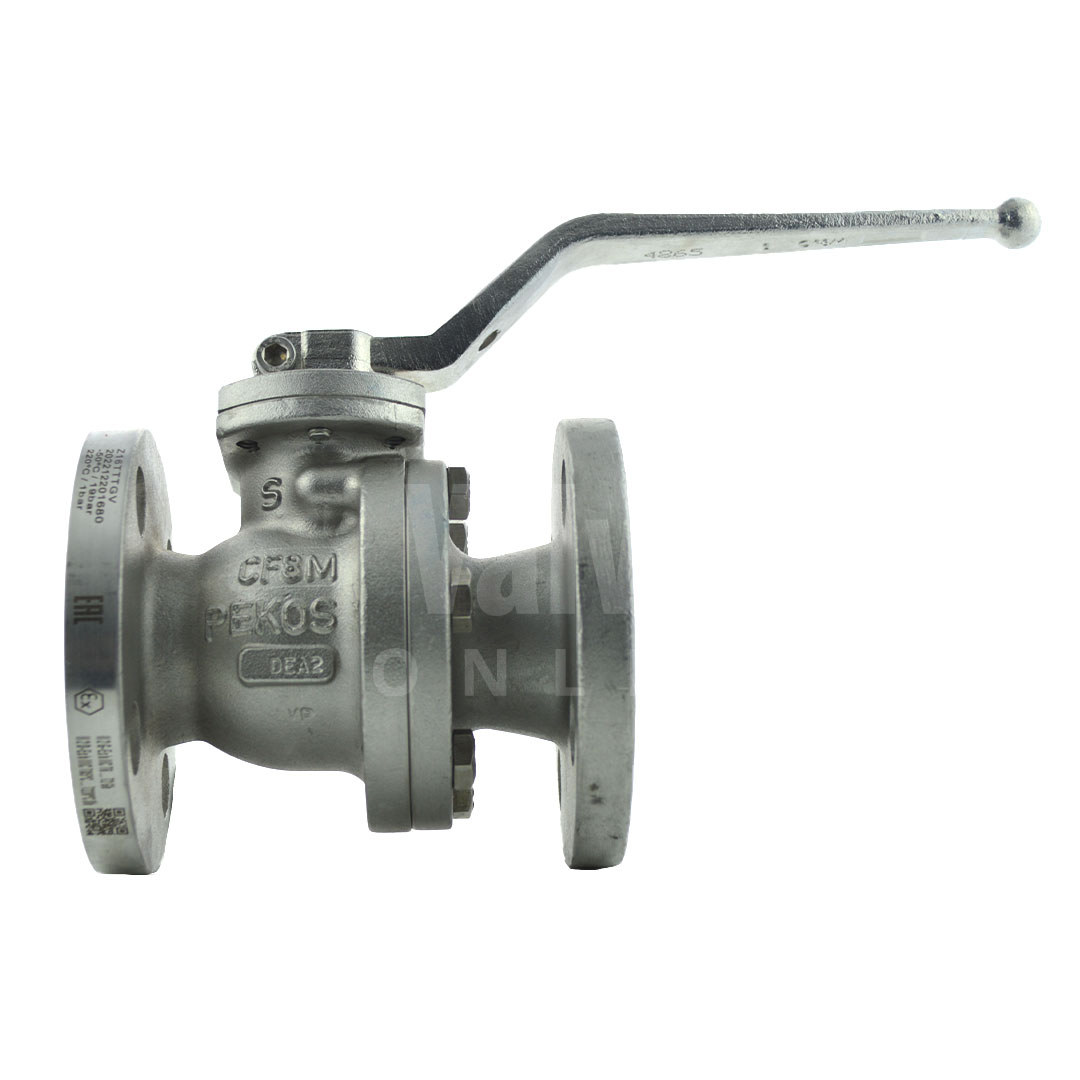

PEKOS Stainless Steel Full Bore Flanged PN40 Ball Valve
SKU BV5724
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Stainless Steel
- Flanged PN40
- Full Bore
- 2 Piece Design
- Sizes 1/2"(DN15) to 5"(DN125)
- Pressure Rated: PN40
- ATEX Approved
Description
This Pekos Fig Z 06 TTTG PN40 Stainless Steel Full Bore Ball Valve is a stainless steel two piece body, full bore ATEX certified ball valve suitable for a wide range of industries. The valve is a split body meaning it can be easily maintained and full spares kits are available.
This industry leading ball valve is manufactured to many standards including: ISO 5211, EN 1092-01, EN 558, EN-12266, ISO 5208, EN-12516, ISO 17292 and carries a wide range of approvals including: Fire Safe, TÜV.AD-MERKBLATT WO, TA-LUFT, ATEX 94-9EC, PED 97/23/CE, SIL 3 Capable, EN 161/EN ISO 23553-1.
As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Lever
- Manual Lever (Gearbox on request)
- Temperature Range
- -29°C to 180°C (increased range on request)
- Pressure
- PN40 Rated
- Main Features
- Flanged PN40 Full Bore 1/2"(DN15) to 5"(DN125)
