VOLT

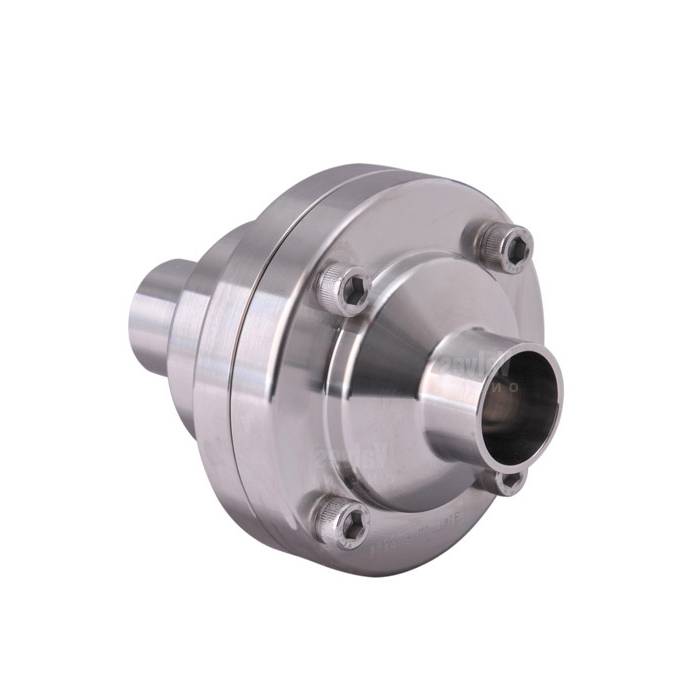

Hygienic Check Valve
SKU HC4257
Sizes: 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
Our hygienic (sanitary) check valve is a non-return valve preventing back flow. Suitable for food processing and process applications, offering high flow rates in one direction only. The valve features a 316 stainless steel body, piston, and spring, with EPDM body and piston seals.
Sizes available: 1” (DN25), 1 1/2” (DN40), 2” (DN50), 2 1/2” (DN65), 3” (DN80), and 4” (DN100), with OD weld end connections. The valve has an internal finish to 0.4 micron, joint seals are free from dead zones, removing the risk of bacteria and debris build up. The valve has a maximum working pressure of 10 Bar/150 PSI.
Alternative end connections available upon request (POA).
Call 01822 855600 to discuss your project or application further with a member of our technical team or contact us via our online form.
Technical specification
- End Connection
- OD Weld End
- Design / Type
- Hygienic Check
- Industry / Approvals
- Hygienic
- Body Material
- Stainless Steel, Stainless Steel 316
- Size
- 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Main Features
- 1" to 4" 316 Stainless Steel OD Weld Ends
