VOLT

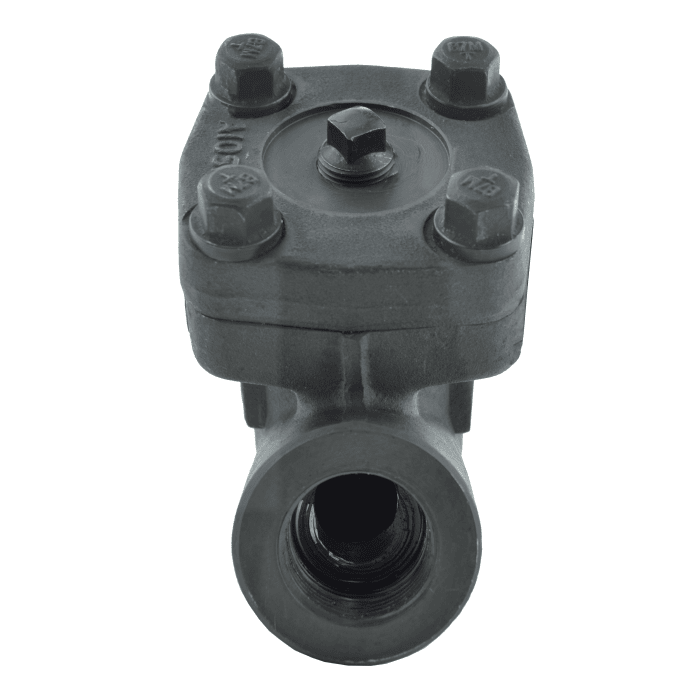

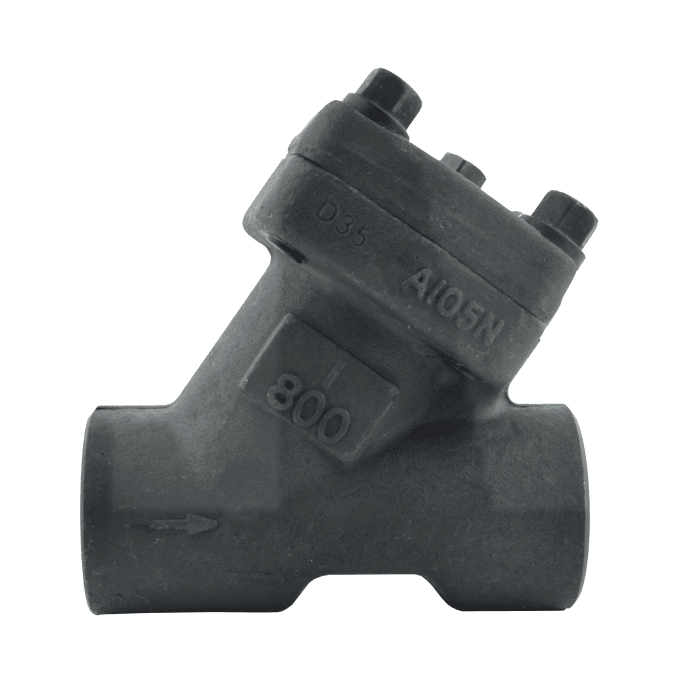

Heavy Duty Forged Steel Y Pattern Strainer Class 800
SKU YS5751
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Y Type Strainer
- Heavy Duty Forged Steel Body
- Class 800
- 20 mesh screen
- Socket Weld, BSPT or NPT
- Sizes 1/2" to 2"
- Temperature: -29°C to 425°C
- Pressure up to 138 bar
Description
This heavy duty forged steel class 800 strainer is used to protect expensive equipment installed in a pipeline from dirt, debris and particulates. Having a bolted bonnet which ensures safety coupled with easy removal of the standard fine screen that provides effective filtration down to 20 mesh (920μm or 0.037”).
Available in forged steel and conforming to API 602 and ASME B16.34. Offered in various end connections for use with a wide range of applications including: Steam, Thermal Oil, Air, Gas and water.
Typical Applications:
Typical Industries:
Heavy Duty Forged Steel Y Pattern Strainer Class 800 Datasheet
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Body Material
- Forged Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
- Filtration
- 0.91mm (Mesh 20)
- Design
- Y Type
- Industry / Approvals
- Steam
