VOLT

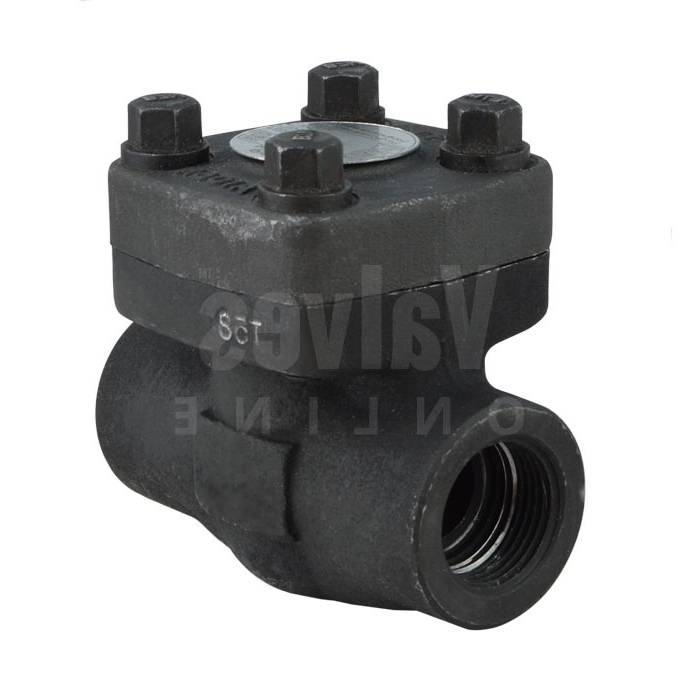

Forged Steel Swing Check Valve Class 800
SKU CV5750
from£34.00ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Swing Check Valve
- Forged Steel body
- Class 800
- Socket Weld, BSPT or NPT
- Sizes 1/2" to 2"
- Temperature: -29°C to 425°C
- Pressure up to 138 bar
Description
This Class 800 Forged Steel Swing Check Valve features a Forged Steel A105N body with bolted bonnet and is suitable for a range of applications and media including steam, air, gas and liquids such as thermal oil and water.
Conforming to API 602 and ASME B16.34, this economical and reliable swing check valve offers excellent sealing capabilities in horizontal or vertical postion.
Typical Applications:
Typical Industries:
Forged Steel Swing Check Valve Class 800 Datasheet
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Design / Type
- Swing Check
- Industry / Approvals
- High Temperature
- Body Material
- Forged Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
- Main Features
- 1/2" to 2" Socket Weld, BSPT or NPT -29°C to 425°C
