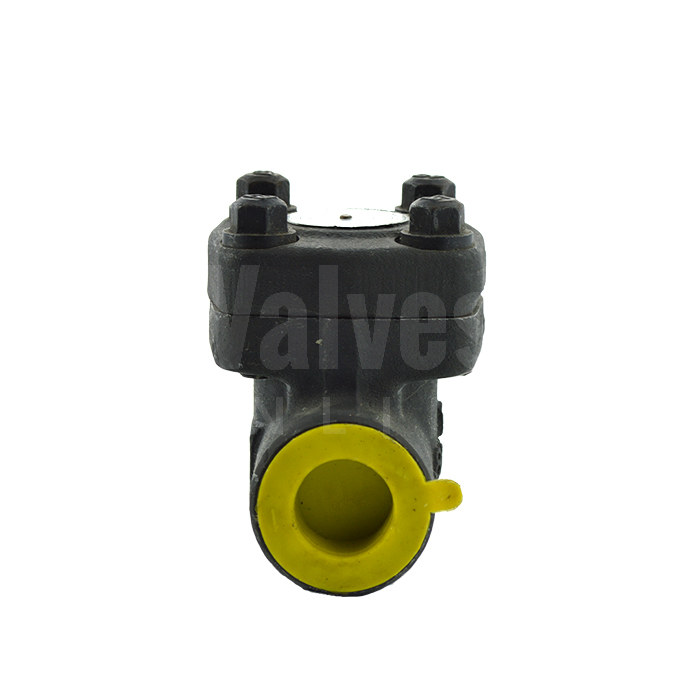

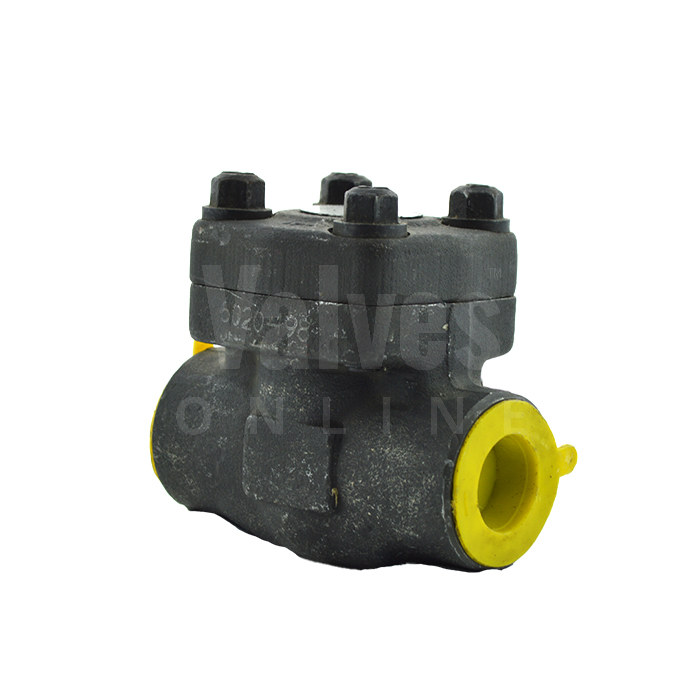

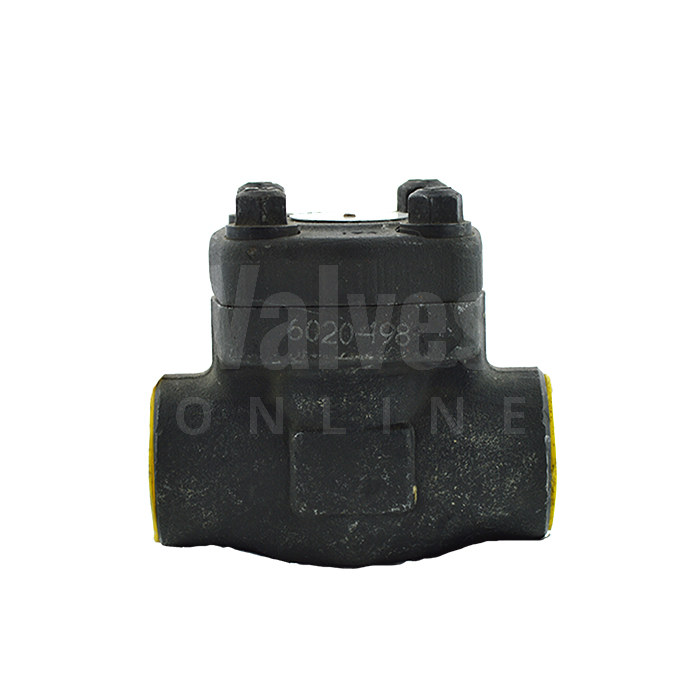

Forged Steel Piston Check Valve Class 800
SKU CV4650
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Piston Check Valve
- Forged Steel body
- Class 800
- Socket Weld, BSPT or NPT
- Sizes 1/2" to 2"
- Temperature: -29°C to 425°C
- Pressure Up to 138 bar
Description
Our Class 800 Forged Steel Piston Check Valve is suitable for a range of applications and media including steam, air, gas and liquids such as thermal oil and water.
This Class 800 manual piston check valve is an economical, maintenance free valve with a Forged Steel A105N body and bolted bonnet conforming to API 602 and ASME B16.34. This cl800 check valve can be used in either vertical or horizontal orientation and ensures the protection of items of equipment that can be affected by reverse flow, it also offers a reduced risk of waterhammer.
Typical Applications:
Typical Industries:
Forged Steel Piston Check Valve Datasheet
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Design / Type
- Piston Check
- Industry / Approvals
- High Temperature
- Body Material
- Forged Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
- Main Features
- 1/2" to 2" Socket Weld, BSPT or NPT -29°C to 425°C
