Cepex

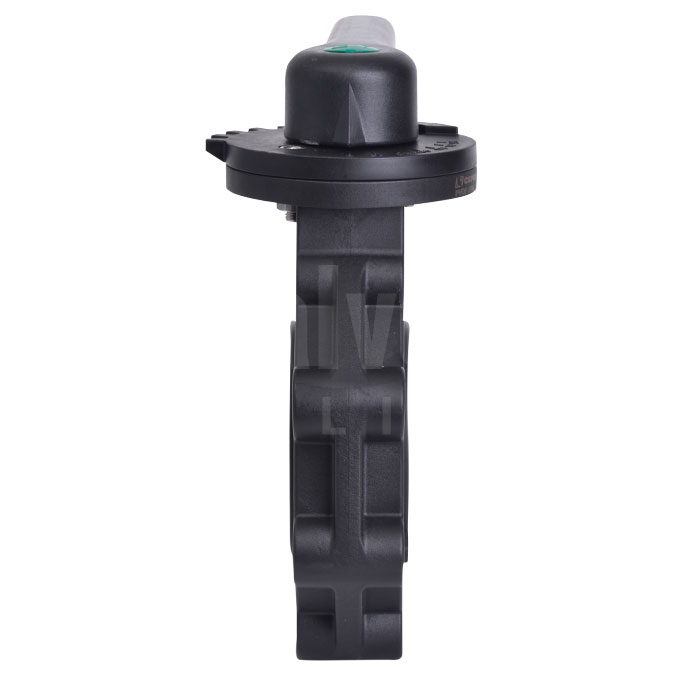

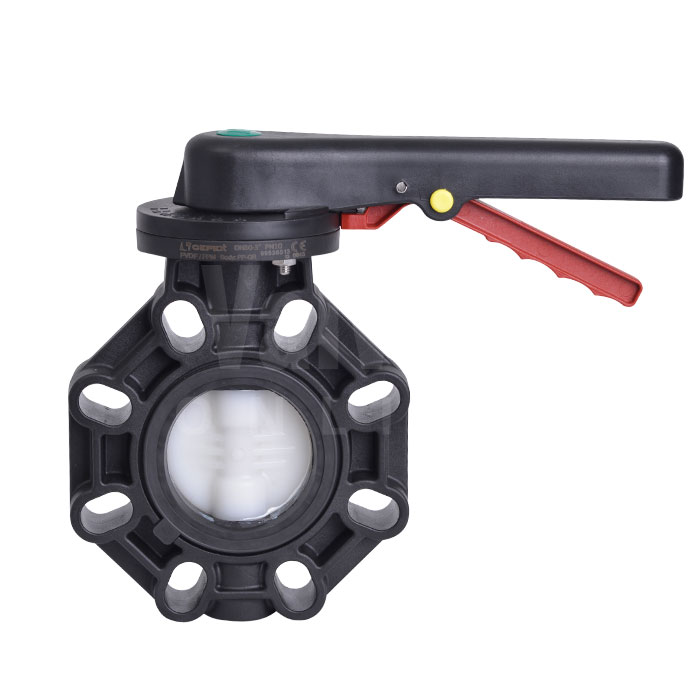

EXTREME Butterfly Valve, PVDF Disc
SKU BF5542
Sizes: 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PP-GR Body, PVDF Disc, Stainless Steel AISI630 Stem
- EPDM or FPM Liner Options
- PN10 Pressure Rated, 10°C to 120°C Temperature Road
- Sizes DN65 (D63-D75) Up to DN300 (D315)
- Multiposition Handlever, Gearbox or Bare Stem options
Description
A manual butterfly valve from the Cepex Extreme product range, ideal for the isolation and regulation of flows. With a wafer pattern design based upon the EN ISO 16136 standard in accordance with the 97/23/EC directive is a compact solution suitable for processes with pressures up to 10 Bar and temperatures up to 120°C.
Featuring a PVDF Disc and EPDM or FPM Liners the valve is suitable for use with many inorganic chemicals and processes across industries such as Chemcial Processing, Water Treatment and associated industries.
Like all CEPEX EXTREME valves the Butterfly valve is laser marked with the serial and batch number providing 100% traceability, coupled with 100% bench pressure tests using water, you can be assured of the quality, accuracy and reliability of CEPEX valves
Options inlcude the operator including Handle (with lockout feature, and multiposition opening), Gearbox Operator and is available bare shaft as well. If an actuated valve is required see our actuated range or enquire with one of our sales team.
CEPEX EXTREME Butterfly Valve, PVDF Disc Datasheet
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN10
- Body Material
- PP-GR
- Size
- 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- PVDF
- Liner
- EPDM, FPM
