Cepex
EXTREME Butterfly Valve, PVC-C Disc
SKU BF5538
Sizes: 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PP-GR Body, PVC-C Disc, Stainless Steel AISI630 Stem
- EPDM or FPM Liner Options
- PN10 Presuure Rated, 10°C to 80°C Temperature Rated
- Sizes DN54 (D63-D75) Up to DN300 (D315)

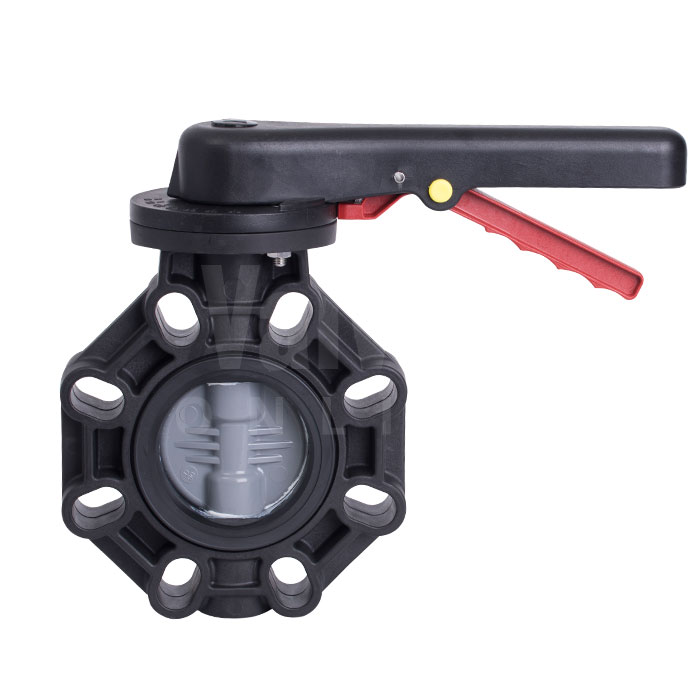

- Multiposition Handlelever, Gearbox or Bare Stem options
Description
A manual butterfly valve from the Cepex Extreme product range, ideal for the isolation and regualtion of flows. With a wafer pattern design based upon the EN ISO 16136 standard in accordance with the 97/23/EC directive is a compact solution suitable for processes with pressures up to 10 Bar and temperatures up to 80°C.
Featuring a PVC-C Disc and EPDM or FPM Liners the valve is suitable for use with many inorganic chemicals and processes across industries such as Chemical Processing, Water Treatment and associated industries.
Like all CEPEX Extreme valves the Butterfly valve is laser marked with the serial and batch number providing 100% traceability, coupled with 100% bench pressure tests using water, you can be assured of the quality, accuracy and reliability of CEPEX valves purchase from Find My Valve.

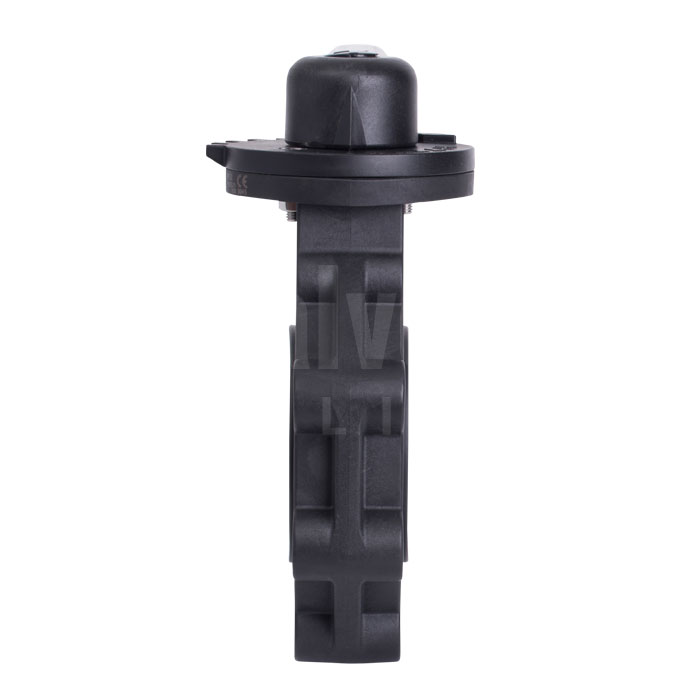

Options include the operator including Handle (with lockout feature and multi position opening) Gearbox Operator and is aviable bare shaft as well. If an actuated valve is required see our actuated range or enquire with one of our sales team.
CEPEX EXTREME Butterfly Valve, PVC-C Disc Datasheet
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN10
- Body Material
- PP-GR
- Size
- 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- PVC-C
- Liner
- EPDM, FPM
