VOLT

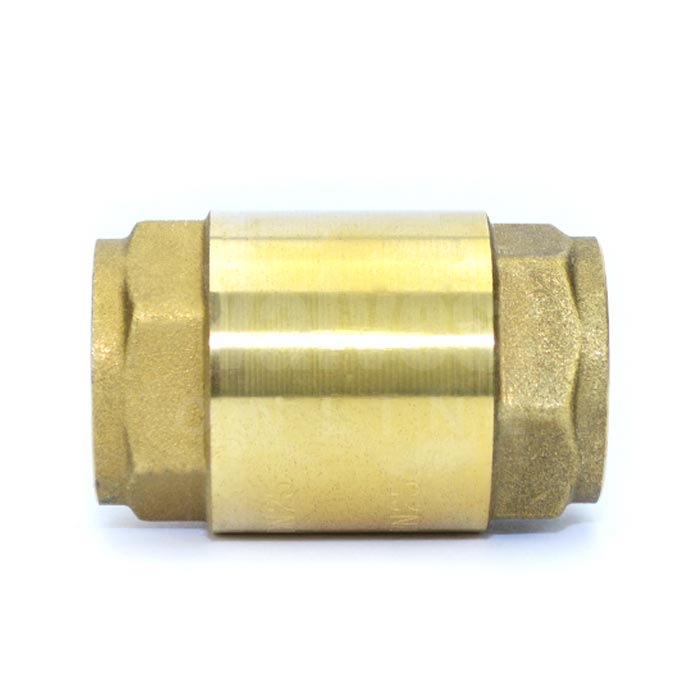

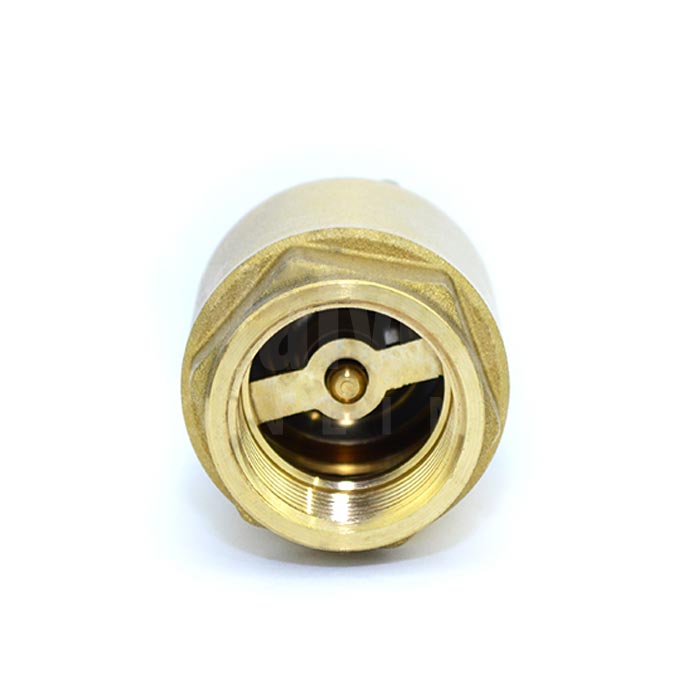

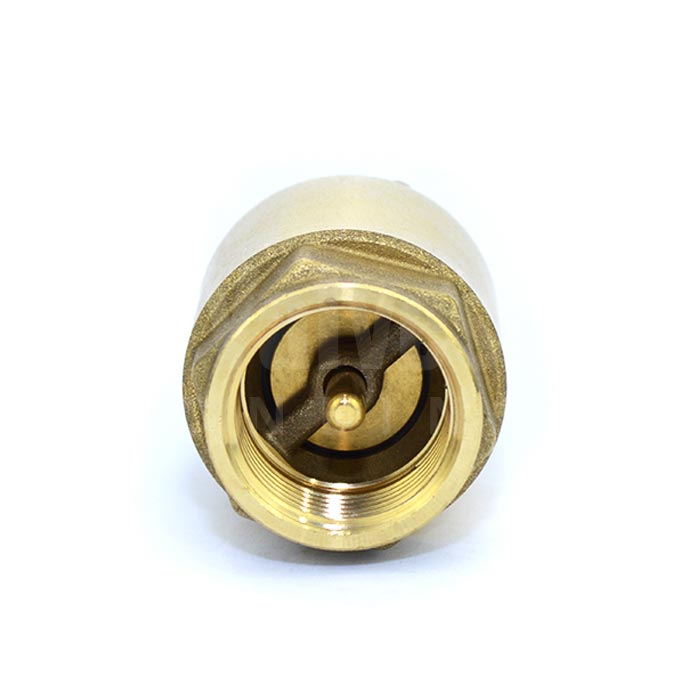

Europa Brass Spring Check Valve Screwed BSP
SKU CV4661
Sizes: 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Europa Brass Spring Check Valve
- Brass Body
- Stainless Steel Plate & Spring
- NBR Seal
- Screwed BSP
- Sizes 3/8" to 4"
- Reliable & Robust
- Low Cracking Pressure 0.02 Bar
- Best Price Online
Description
Our CV4661 Brass Spring Check Valve is screwed BSP and offers excellent sealing capabilities for both high and low pressures, allowing flow in one direction and not the other. Used in all industrial applications including, general purpose, industrial and HVAC, water services, heating, air-conditioning plants and compressed air systems.
Known for being a reliable and robust brass spring plate non return valve with brass body, 316 stainless steel plate & spring, NBR seal and screwed BSP end connections.
The valve has an option that when fitted with a Stainless Steel basket (available on request) it becomes a useful and fully functional Foot Valve.
Installed either vertically (upwards only) or horizontally.
For full details please download the accompanying datasheet.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Brass Spring Check Valve Screwed BSP Datasheet
Technical specification
- End Connection
- BSP
- Design / Type
- Spring Check
- Industry / Approvals
- HVAC
- Body Material
- Brass
- Size
- 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Main Features
- 3/8" to 4" -20°C to 100°C Up to 25 Bar Rated
