Images are illustrative and may not show every size or variation.
VOLT

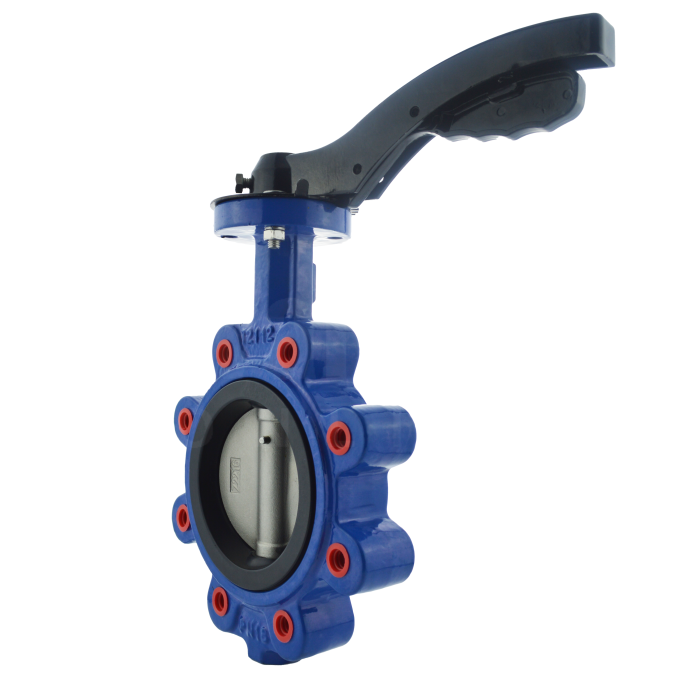

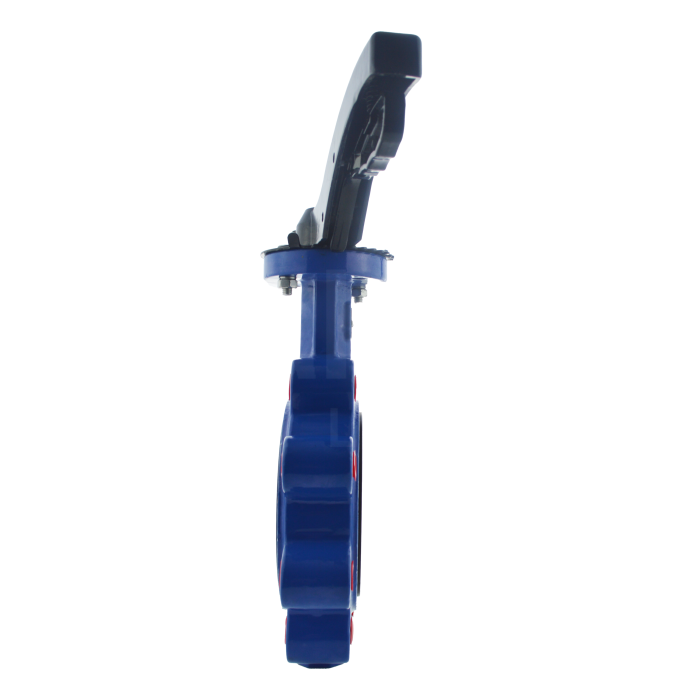

Economy WRAS Approved Lugged PN16 Butterfly Valve
SKU BF4691
from£38.06ex VAT Not the right one? Identify your valve by photo
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Lugged & Tapped Butterfly Valve
- Ductile iron body
- 316 stainless steel disc
- EPDM liner
- Sizes: 1 1/2" to 12"
- Lockable lever and throttling notch plate or Gearbox
- Suitable for mounting between flanges: PN16
- WRAS Approved
Description
An economy lugged and tapped butterfly valve with lever or gearbox operator suitable to fit on to PN16 flanges, having a ductile iron body, with stainless steel disc and EPDM liner. Available in sizes: 1 1/2" to 10" with lever and up to 12" with gearbox.
This valve is WRAS approved for use on drinking water, glycol mixes etc. Can be used on end of line service.
Working Temperature: -20°C to +120°C
Maximum Working Pressure: 16 bar
Technical specification
- Design
- Lugged, Lugged + Tapped
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- EPDM
- Industry / Approvals
- WRAS
