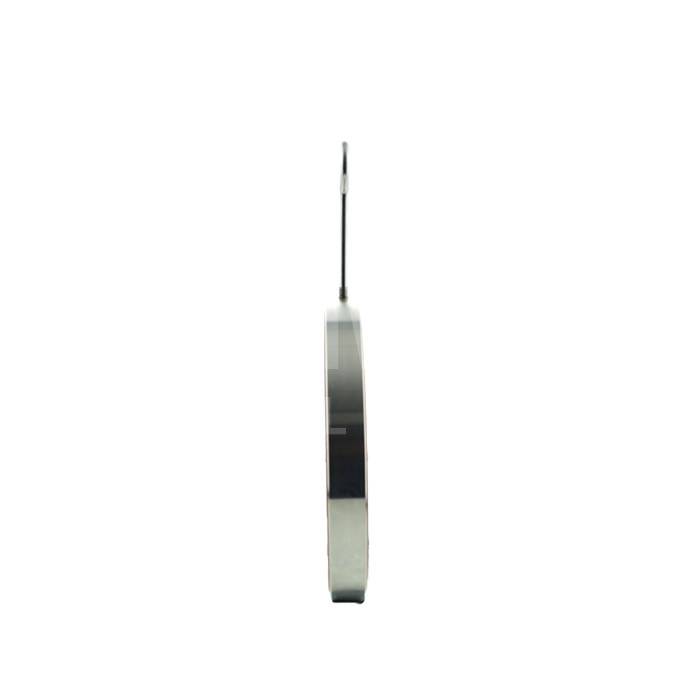

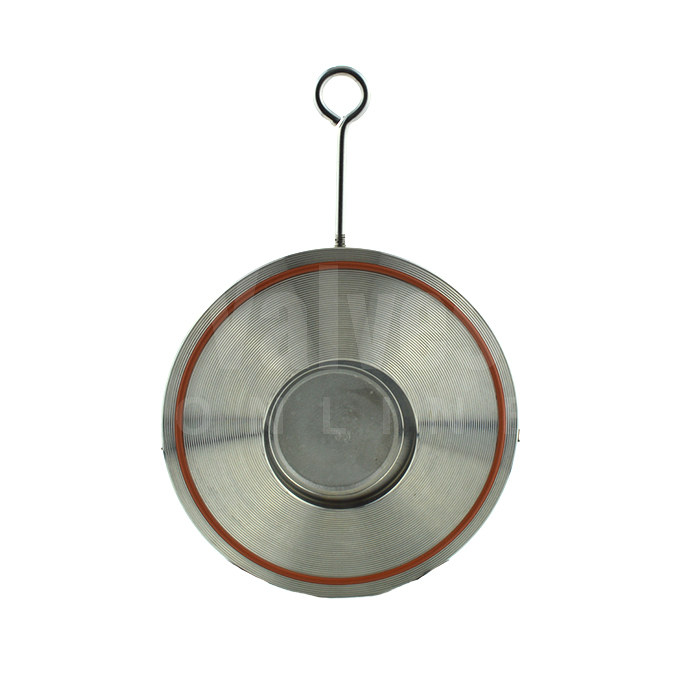

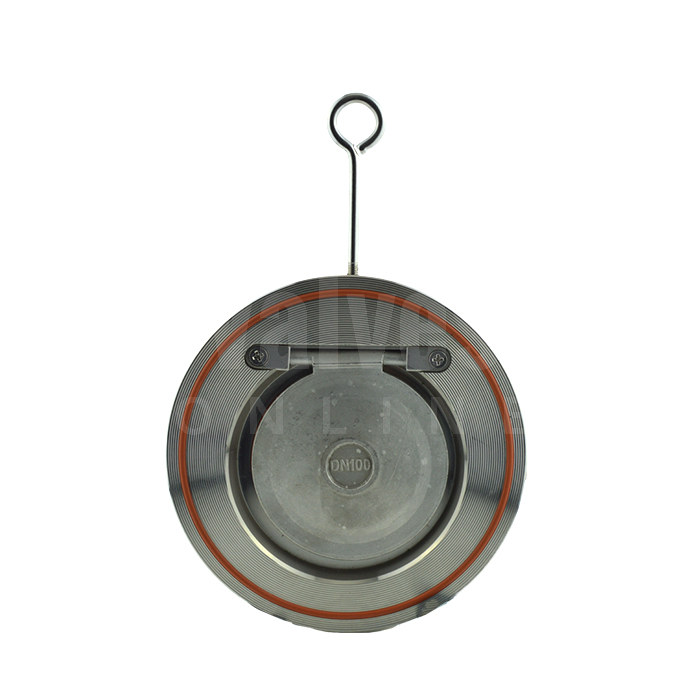

Economy Stainless Steel Wafer Swing Check Valve
SKU CV4681
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Wafer Pattern Swing Check Valve
- CF8M stainless steel body and disc
- FKM seat and body seal
- Sizes: 1 1/2" to 12"
- Suitable for mounting between PN10/16 and ANSI150 flanges
Description
Stainless steel compact wafer swing check valve, offers excellent sealing capabilities for both high and low pressures. Available in sizes 1 1/2" to 12" and suitable for mounting between PN10/16 and ANSI 150 flanges.
Used for general purpose, industrial and HVAC. Applications include water, heating, air-conditioning plants and compressed air systems.
An economical, space saving check valve.
Installed either vertically (upwards only) or horizontally.
Working Temperature: -20°C to +180°C
Maximum Working Pressure: 16 bar
Technical specification
- End Connection
- Wafer Pattern
- Design / Type
- Wafer Check, Swing Check
- Body Material
- Stainless Steel
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Main Features
- 1 1/2" to 12" -20°C to +180°C Max Working Pressure: 16 Bar
