VOLT

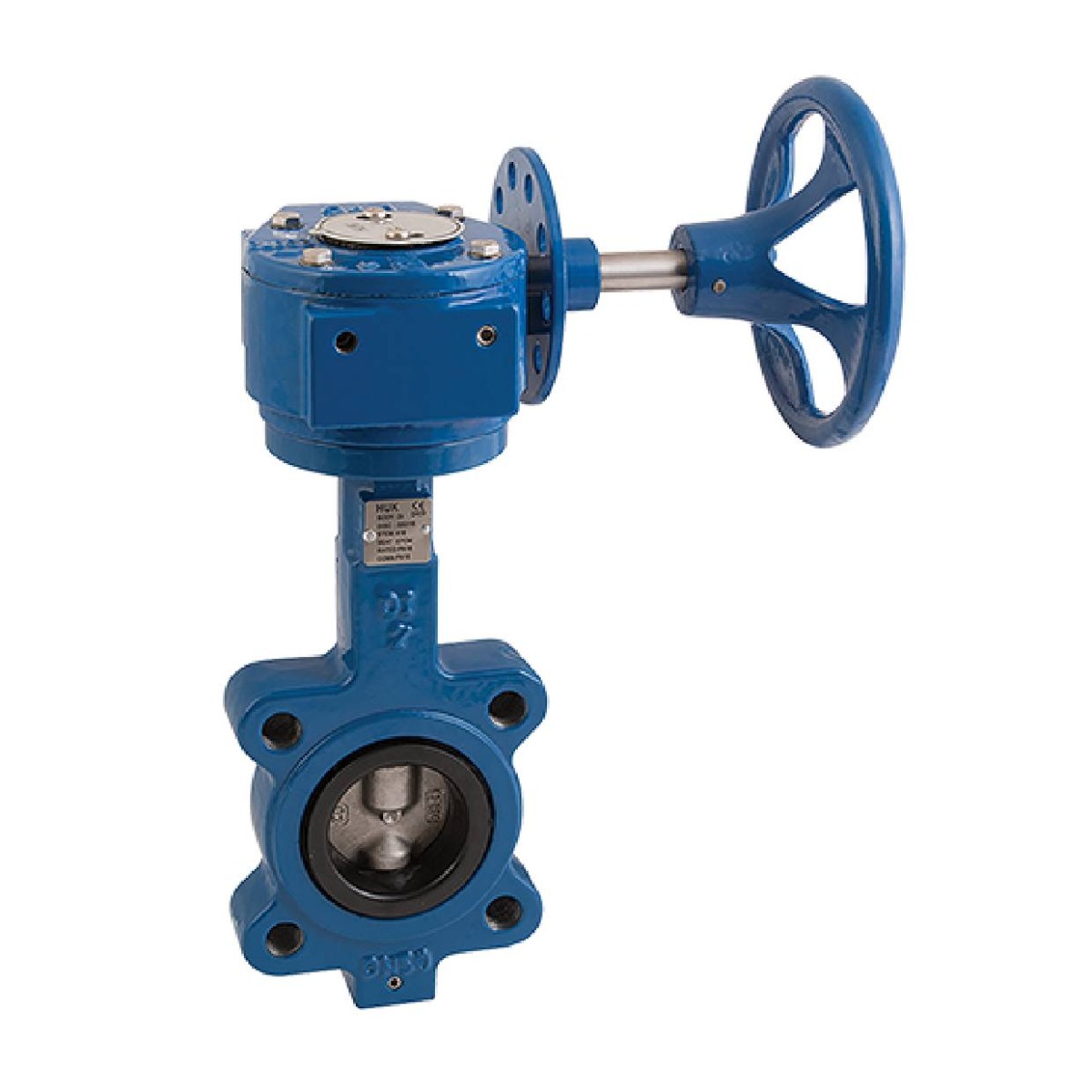

Economy Lugged Butterfly Valve - NBR Liner
SKU BF4694
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Epoxy coated ductile iron body
- Lugged & tapped for PN16 flanges
- CF8M stainless steel disc
- NBR seat
- Sizes available: 1 1/2” to 12”
- Lockable lever or gearbox operation
- Working temperature range: 0°C to +80°C
- Max. working pressure: 16 bar
Description
An economy lugged and tapped butterfly valve. The valve features an epoxy coated ductile iron body, a CF8M stainless steel disc, and NBR liner. The body is lugged and tapped to mount between PN16 flanges. Available in sizes 1 1/2” (DN40), 2” (DN50), 2 ½” (DN65), 3” (DN80), 4” (DN100), 5” (DN125), 6” (DN150), 8” (DN200), 10” (DN250), and 12” (DN300). Available with lockable lever or gearbox operation up to 10”, and 12” with gearbox operation. The valve has a working temperature range from 0°C to +80°C, and maximum working pressure of 16 bar.
Technical specification
- Design
- Lugged
- Body Material
- Stainless Steel
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- NBR (BUNA)
