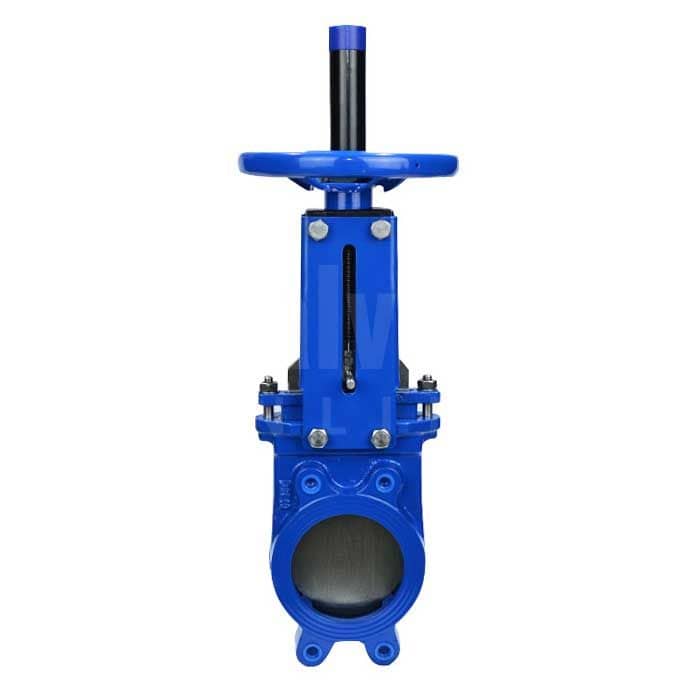

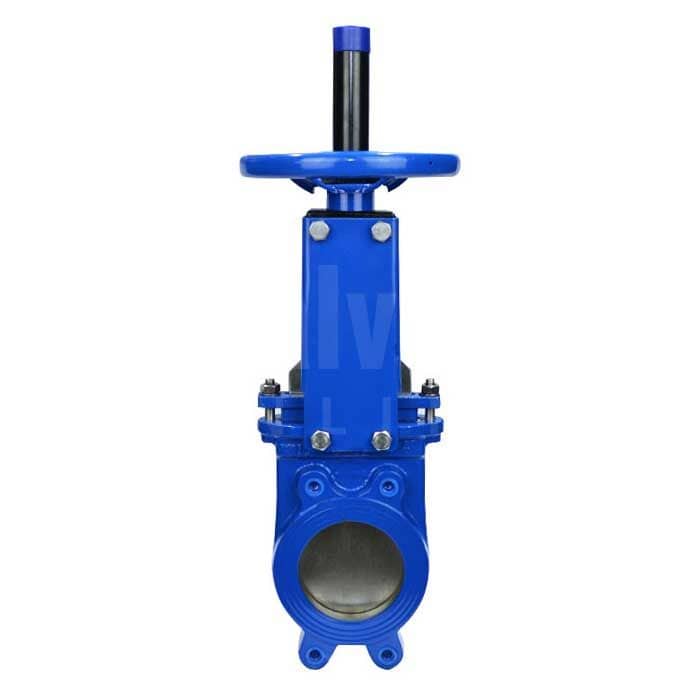

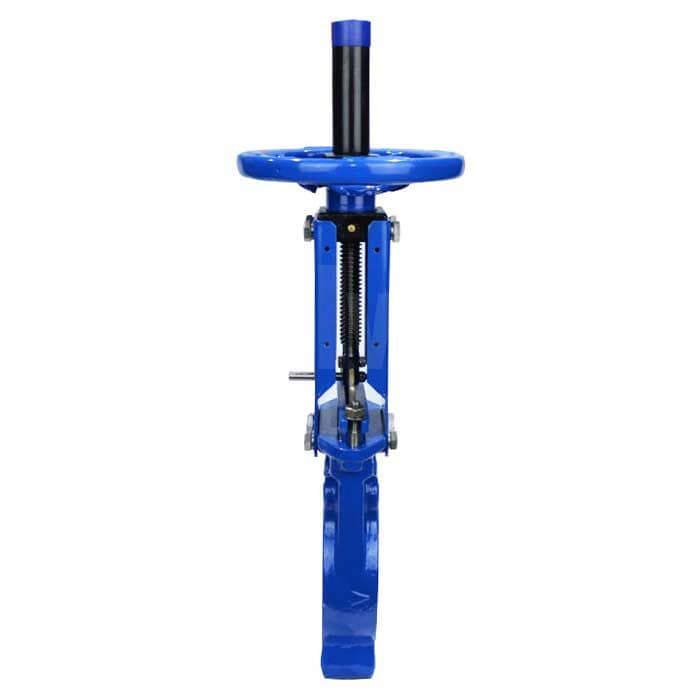

Economy Knife Gate Valve Handwheel Operator
SKU KG5016
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Knife Gate Valve
- Handwheel Operator
- Uni-directional
- To fit between PN10 / PN6 flanges
- Cast Iron body
- EPDM seat
- Sizes 2" to 16"
- Best Price Online
Description
Our Economy Knife Gate Valve Handwheel Operator is suitable to fit between PN10 / PN6 flanges and designed for general industrial service applications. A low-cost unidirectional, rising stem, lever operated manual knife gate valve featuring a full circular bore resulting in high flow capacities and low pressure drops.
The design of the body and seat ensures non-clogging isolation on suspended solids in industries including: pulp and paper,bulk handling, mining, food, beverage, chemical, power and waste water treatment.
Optional extra: can be configured with or without side protection plates.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
- Body Material
- Cast Iron
- Design
- Lugged, Handwheel, EPDM Seat, Uni-directional
- Industry / Approvals
- Water Treatment / Desalinization, Mining / Slurry, Bulk Handling, Power Plant, Pulp / Paper
- Flange Accommodation
- PN6, PN10
