VOLT

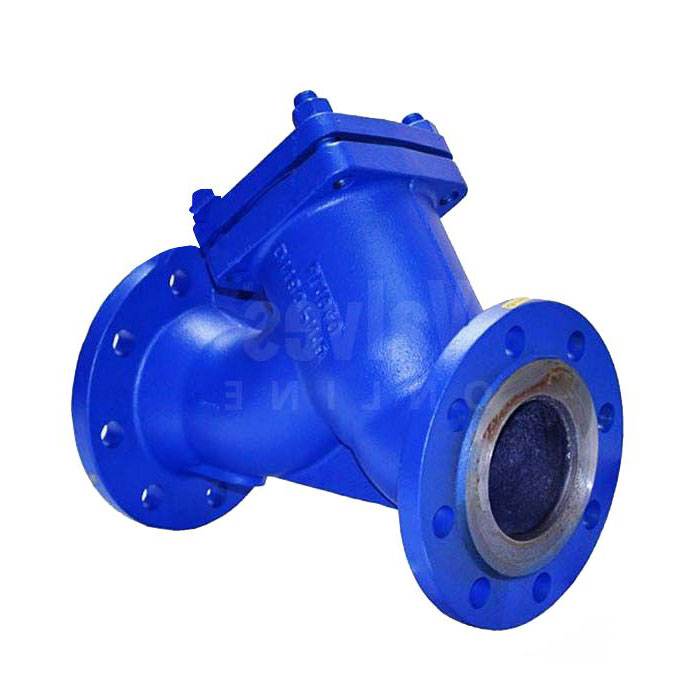

Economy Cast Iron Y Type Strainer Flanged PN16
SKU YS4240
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Y Type Strainer wth Drain Plug
- Cast Iron body
- 1mm to 1.6mm Stainless Steel Screen Mesh
- PN16 Flanged
- Sizes: 1/2" to 16"
- Temperature: -10°C to 300°C
- Options for Spare Mesh Screens
Description
Our Cast Iron Y Type Strainer is Flanged to PN16, easy to clean and features a removable drain plug with Stainless Steel screen mesh. It provides an economical solution and is recommended for all applications where damage to valves and other related mechanical equipment needs to be avoided.
Typical applications include hot and cold-water plants, steam plants, industrial technologies, air condition, heating and refrigeration engineering.
Pipeline debris including dirt and scale is often the cause of failure, damage, energy loss and a reduction in productivity.
The installation of a strainer is always recommended to ensure trouble-free service.
Cast Iron Y Type Strainer Flanged PN16 Datasheet
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Cast Iron
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
- Filtration
- 1mm (Mesh 19), 1.25mm (Mesh 15.4), 1.6mm (Mesh 12)
- Design
- Y Type
- Industry / Approvals
- Steam, Liquid
