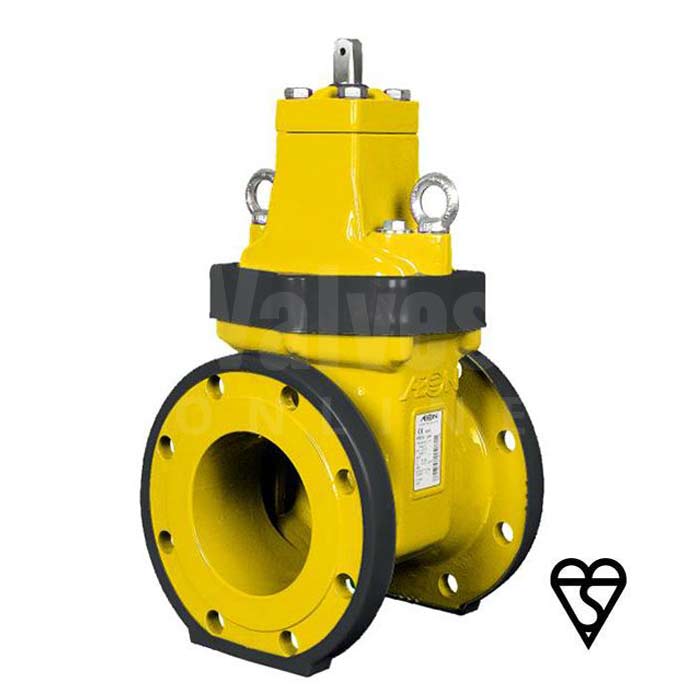

Ductile Iron Gate Valve Gas Approved BSI V7 Double Block & Bleed Type B
SKU GV4026
Sizes: 2", 3", 4", 6", 8", 10", 12"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Gas Approved Gate Valve
- Double Block and Bleed
- Flanged PN16
- GIS/V7-1:2007 Approval
- EN13774
- Epoxy Coated Ductile Iron Body
- Sizes: 2" to 12"
Description
Type B Resilient seated double block and bleed gate valve for use with natural gas lines, offering a higher standard of performance ensuring tightness and durability. The valve has a double seated NBR encapsulated wedge, which ensures very low closing torque and smooth guiding. Three stems are fully maintainable under pressure. Face to Face in accordance with DIN 3202, maximum operating pressure 7 bar with -20°C to + 60°C.
Natural gas lines at medium working pressure and temperature range from 20° to +60°C
DVGW, CE (PED 97/23/EC), BSI Kitemark,AGA, Russian Certificate of Conformity. Flange Type: EN 1092 2 PN10 & PN16
Ductile Iron Gate Valve Gas Approved BSI V7 Double Block & Bleed Type B Datasheet
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Ductile Iron
- Size
- 2", 3", 4", 6", 8", 10", 12"
- Industry / Approvals
- Gas
- Design
- Resilient Seated
- Main Features
- 2" to 12" Flanged PN16 GIS/V7-1:2007 Approval
