Ductile Iron Gate Valve Flanged PN16
SKU GV4210
from£269.91ex VAT Not the right one? Identify your valve by photo
Sizes: 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Ductile Iron Gate Valve
- Suitable to Fit Between PN16 Flanges
- Designed for General Purpose, HVAC & Industrial Applications
- Epoxy Coated Body
- Handwheel Operated
- Flanged BS EN 1092-2
- Conforms to BS5163 Pt. 1 and 2 - 2004
- Sizes: 2" to 12"
- Temperature Range: -10°C to 70°C
- Pressure Rating: PN16
Description

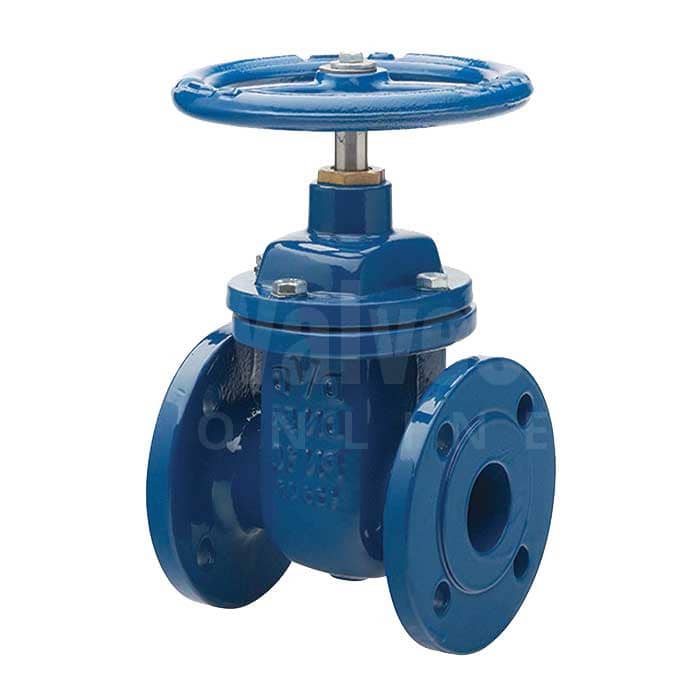

Suitable to fit between PN16 flanges, this ductile iron epoxy coated gate valve is designed for general purpose, HVAC and industrial applications.
Operated via a robust handwheel attached to a non-rising inside screw stem.
The valve has a brass trim and is suitable for temperatures from -10°C up to 70°C.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Ductile Iron
- Size
- 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"
- Industry / Approvals
- HVAC, Water Works
- Main Features
- 2" to 12" PN16 Rated -10°C to 70°C
