Digital Programmable Solenoid Valve Timer

An economical digital timer unit that fits onto a selection of solenoid valves to give fully programmed On / Off cycling over a range of timed periods. Typical applications include condensate blow off on small compressed lines and compressors, remote watering  and flush downs.

Time sequence: Any time sequence from 1 second up to 99 hours 59 min 59 seconds.

Can be set to repeat cycle Power ON/OFF OR Power OFF/ON OR single shot ON/stay OFF with Mode Button.

Press Mode - Choose ON/OFF or OFF/ON or Single Shot (can change later)

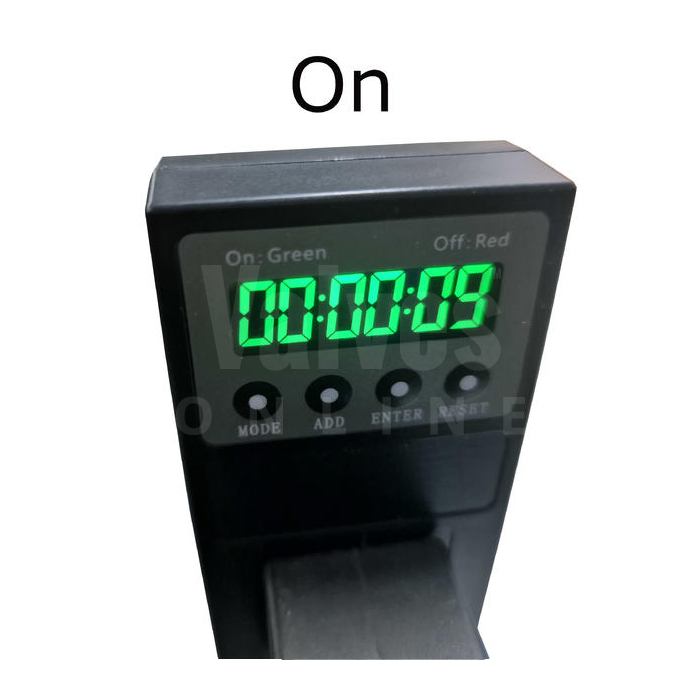

GREEN Screen ON Time Press ADD to increase 10 hour ON, press Enter to move to next digit Press ADD to increase 1 hour ON time, press Enter to move to next digit Press ADD to increase 10 minute ON Time, press enter to move to next digit Press ADD to increase 1 minute ON Time, press enter to move to next digit Press ADD to increase 10 second ON Time, press enter to move to next digit Press ADD to increase 1 second ON Time, press enter to move to RED OFF time selection.

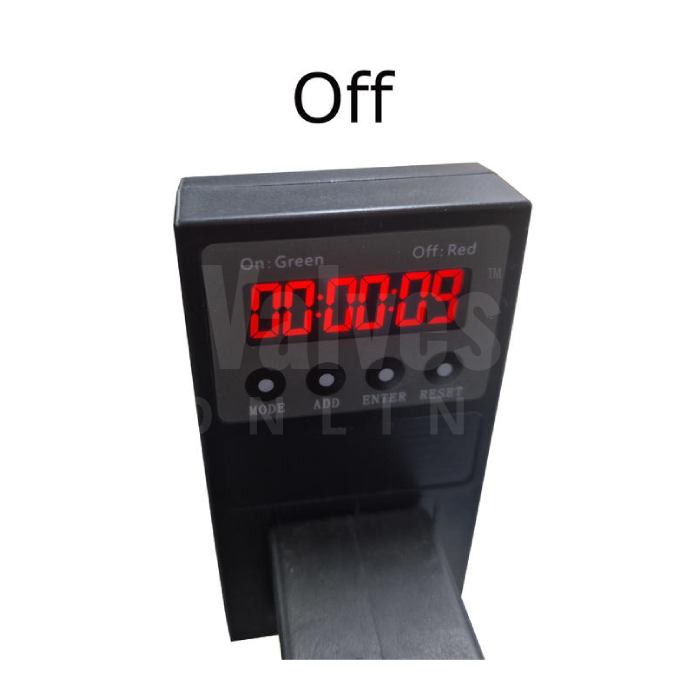

Repeat the selection for off time (RED screen)

Finally, you will have option to change ON/OFF or OFF/ON or single shot and stay off, and it's all set up ready to use.
