VOLT

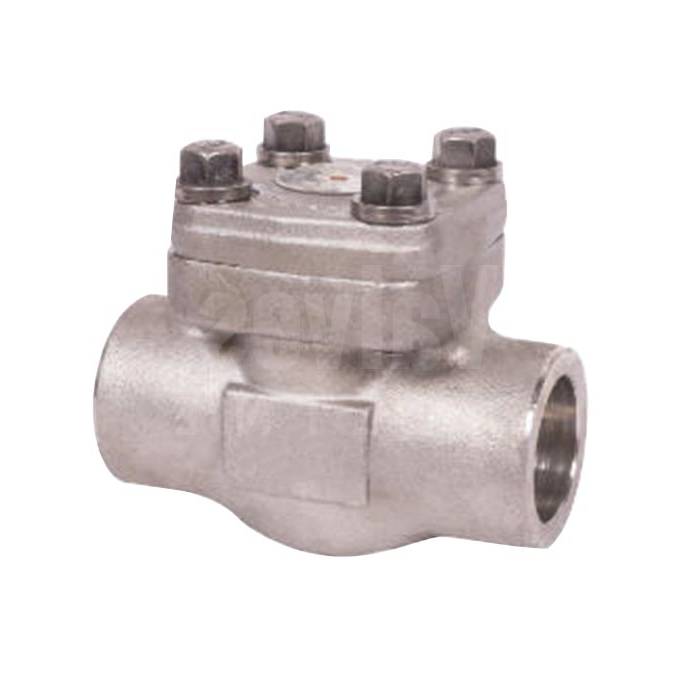

Class 800 Forged Stainless Steel 316L Piston Check Valve
SKU CV5731
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
Class 800 Forged Stainless Steel 316L Piston Check Valve, available in a bolted bonnet design with forged steel body and conforming to API 602 and ASME B16.34.
Offered in various end connections for use with a wide range of applications including: Steam, Thermal Oil, Air, Gas and water.
This Piston Check Valve ensures the protection of items of equipment that can be affected by reverse flow, it also offers a reduced risk of waterhammer. Can be installed in either vertical or horizontal orientation.
Typical applications include: Process Lines, Condensate Lines, Hot and Cold Water Systems and Thermal Oil Systems.
Typical industries include: Boiler Plants, Laundries, Steam Plants and Process Plants.
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Design / Type
- Piston Check
- Industry / Approvals
- Class 800
- Body Material
- Stainless Steel, Stainless Steel 316, Stainless Steel 316L
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
- Main Features
- 1/2" to 2" Socket Weld, BSP or NPT -29°C to 425°C
