VOLT

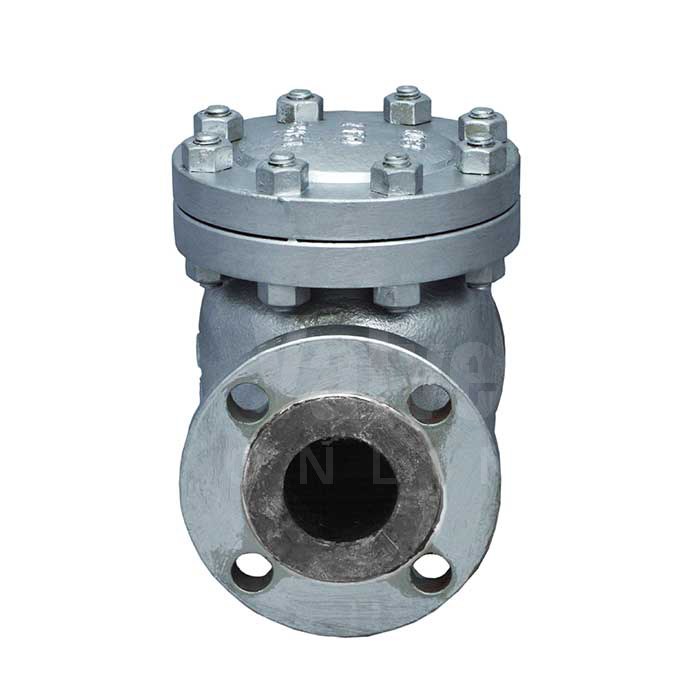

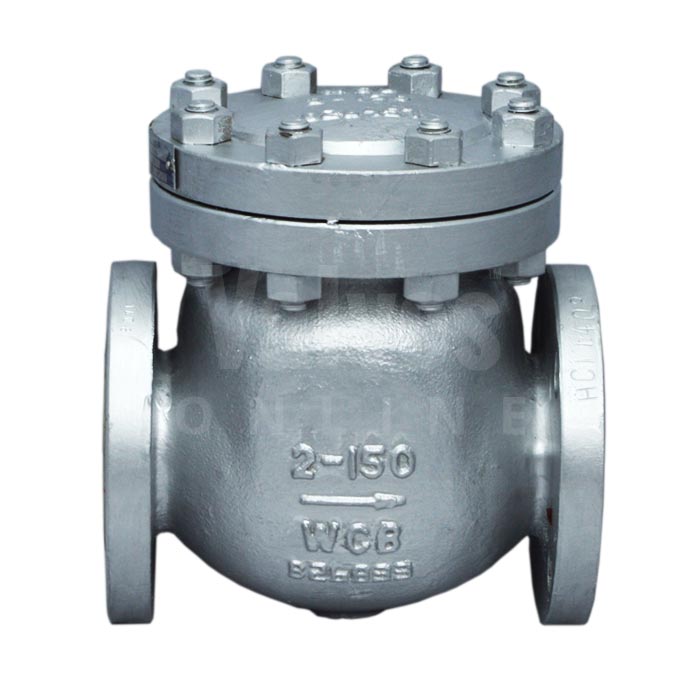

Cast Steel Swing Check Valve API 600 ANSI Class 150
SKU CV5756
Sizes: 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
ANSI 150 heavy duty Swing Check valve to API and BS standards.
Designed to BS 1868 / API 600 / API 6D and pressure tested in accordance with API 598/EN12266-1. This heavy duty flanged Swing Check valve offers durability throughout a wide range of industrial applications, boiler plant and rugged environments.
The seat Ring and Wedge Disc are ground and lapped to a mirror finish that provides matching sealing surfaces. A free rotating Disc design to minimize localised wear on sealing surfaces. Standard internal HINGE design eliminates body penetration and allows ease of maintenance, since all parts are accessible from the top and the valve can be serviced insitu. High strength alloy steel STUD BOLTS and series HEX NUTS used.
Technical specification
- End Connection
- Flanged ANSI 150
- Design / Type
- Swing Check
- Industry / Approvals
- High Temperature
- Body Material
- Cast Steel
- Size
- 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Main Features
- 2" to 12" -20°C to 380°C ANSI 150 Rated
