Images are illustrative and may not show every size or variation.
VOLT

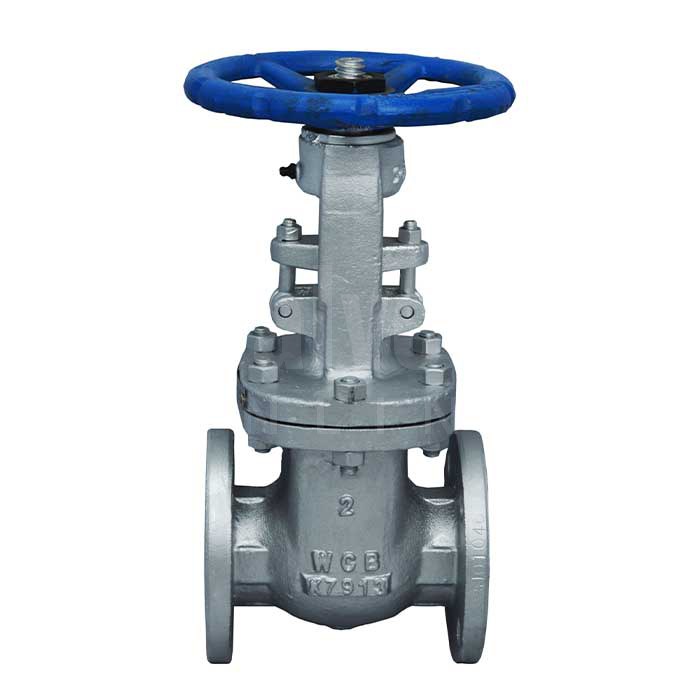

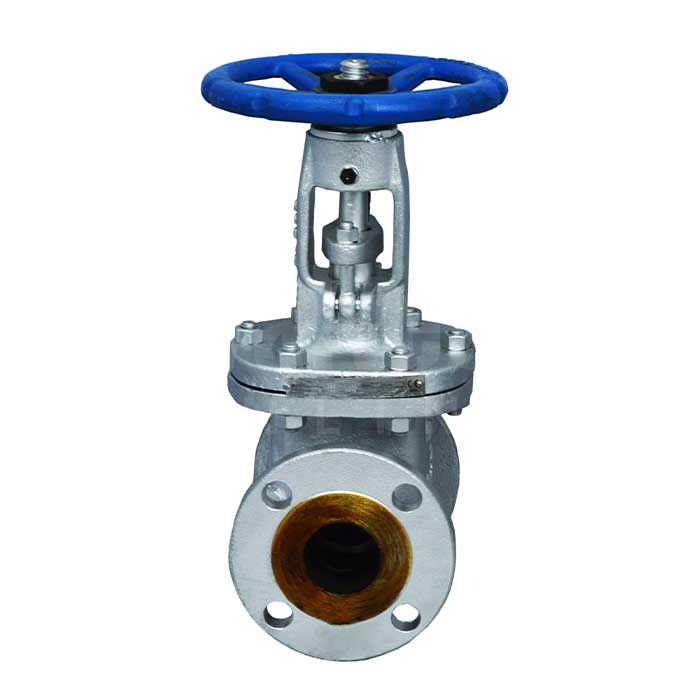

Cast Steel Gate Valve API 600 ANSI Class 150
SKU GV4023
Sizes: 2", 3", 4", 6", 8", 10", 12"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Heavy Duty Gate Valve
- Cast Steel
- Flanged ANSI 150
- Sizes: 2" to 12"
- API 600
Description
This heavy duty flanged Class 150 gate valve with full port offers durability throughout a wide range of industrial applications, boiler plant and rugged environments. Handwheel operated and offered in ANSI 150, offering minimum leakage and maximum service life.
Designed to API 600 and pressure tested in accordance with API 598/EN12266-1.
Used commonly where a minimum pressure drop is important. This cast steel gate valve offers efficient isolation of flow in either direction of the valve. Outside screw and yoke with rising stem for open / close indication. WCB heavy duty body with full port. The wedge disc is fully guided to ensure tight sealing. Bolted body construction with handwheel operation.
Cast Steel Gate Valve API 600 ANSI Class 150 Datasheet
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Cast Steel
- Size
- 2", 3", 4", 6", 8", 10", 12"
- Industry / Approvals
- High Temperature
- Design
- Handwheel Rising Stem
- Main Features
- 2" to 12" Flanged ANSI 150 API 600
