VOLT

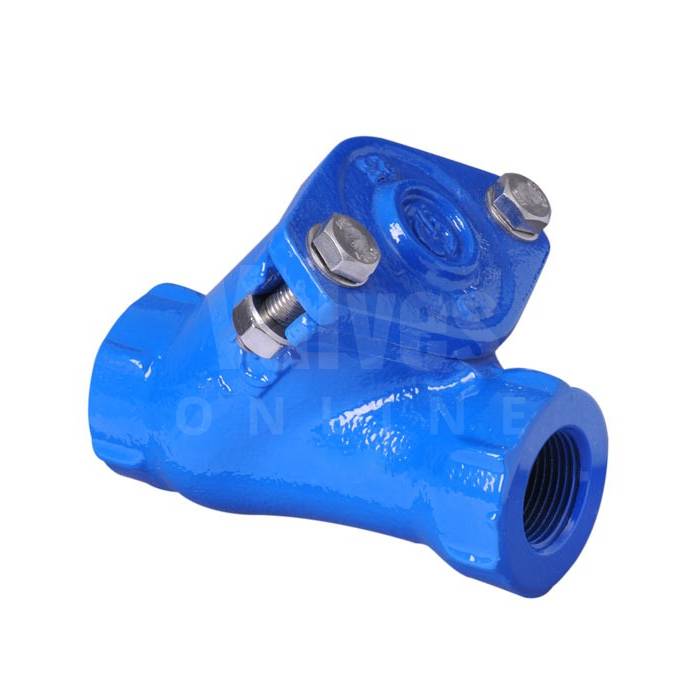

Cast Iron Ball Check Valve Screwed BSP
SKU CV4664
from£67.96ex VAT Not the right one? Identify your valve by photo
Sizes: 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Ball Check Valve
- Cast Iron body
- NBR seat
- Screwed BSP
- Sizes 1" to 3"
- Pressure rating: PN10
Description
Our Cast Iron Ball Check Valve Screwed BSP offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. An economical reliable valve with Cast Iron, epoxy coated body and bonnet, NBR seat and Phenolic Resin coated ball (NBR coated Aluminium ball 2" to 3").
Installed either vertically (upwards only) or horizontally.
For full details please download the accompanying datasheet.
Cast Iron Check Valve Screwed BSP Datasheet
Technical specification
- End Connection
- BSP
- Design / Type
- Ball Check
- Industry / Approvals
- HVAC
- Body Material
- Cast Iron
- Size
- 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Main Features
- 1" to 3" -10°C to 70°C Up to PN10 Rated
