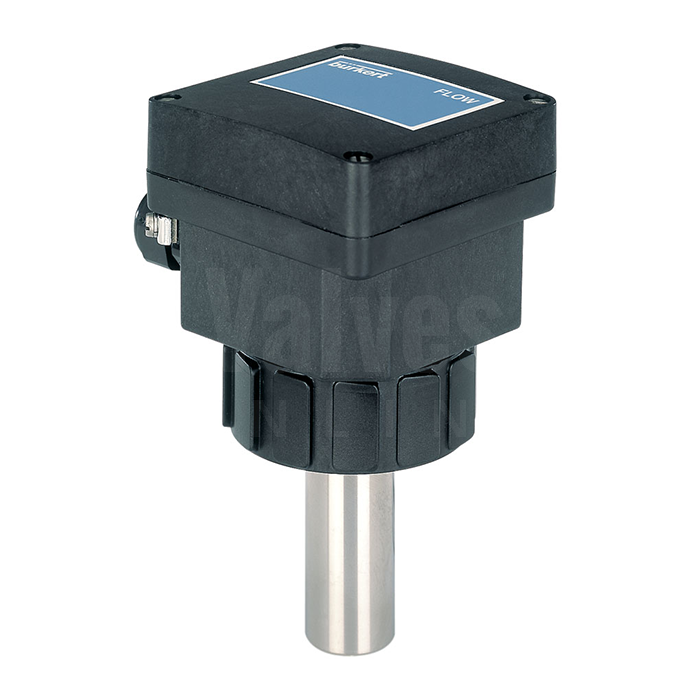

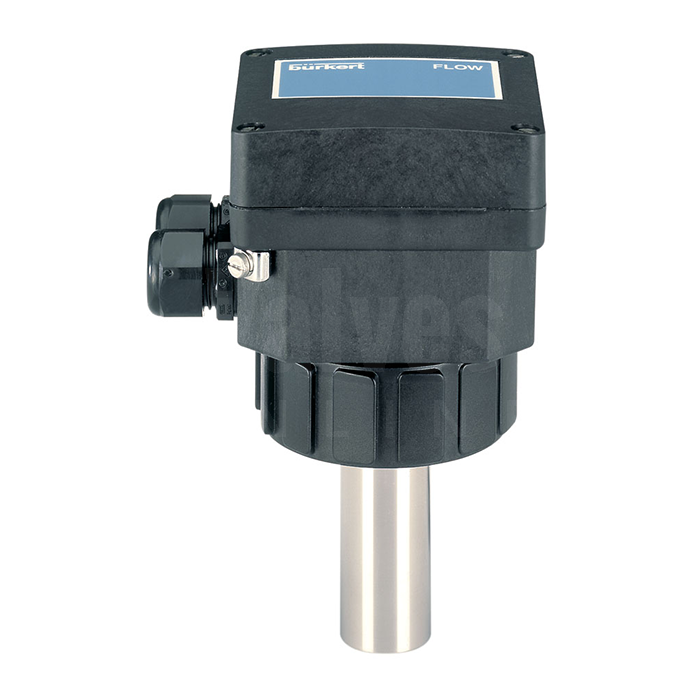

Burkert Type 8041 PVC Blind Insertion Electromagnetic Flowmeter

The electromagnetic flow transmitter 8041 has been designed for pipes with diameters ranging from DN15 to DN50 and liquids having a conductivity > 20 µS/cm. The transmitter is a magmeter made up of an electronic module and a sensor which armature is in PVDF or stainless steel. It is fitted with a 4-20 mA output, a pulse rate output and a relay output. The different parameters can be programmed by means of 5 switches, a push-button and a 10 LED bar graph. The version with a stainless-steel sensor can be used in applications with higher pressures (PN16) and higher temperatures (150°C).

Larger sizes are available.

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
