Images are illustrative and may not show every size or variation.
Burkert

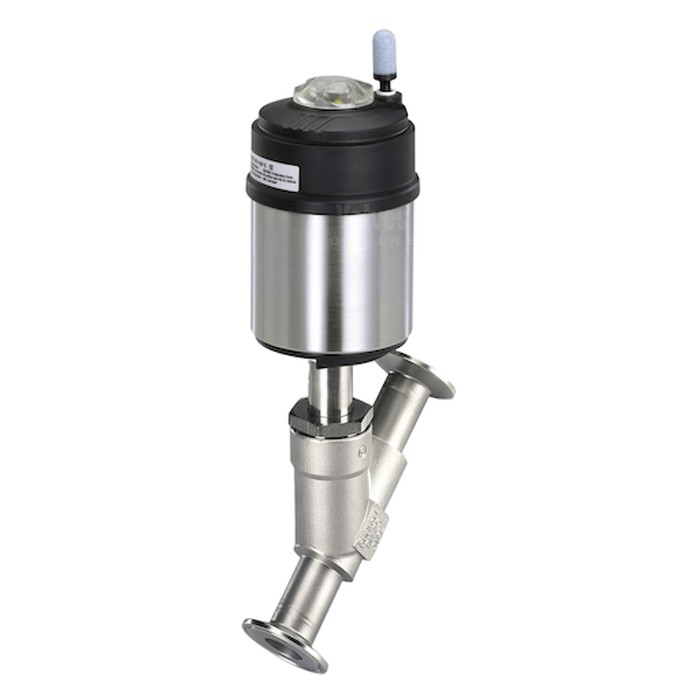

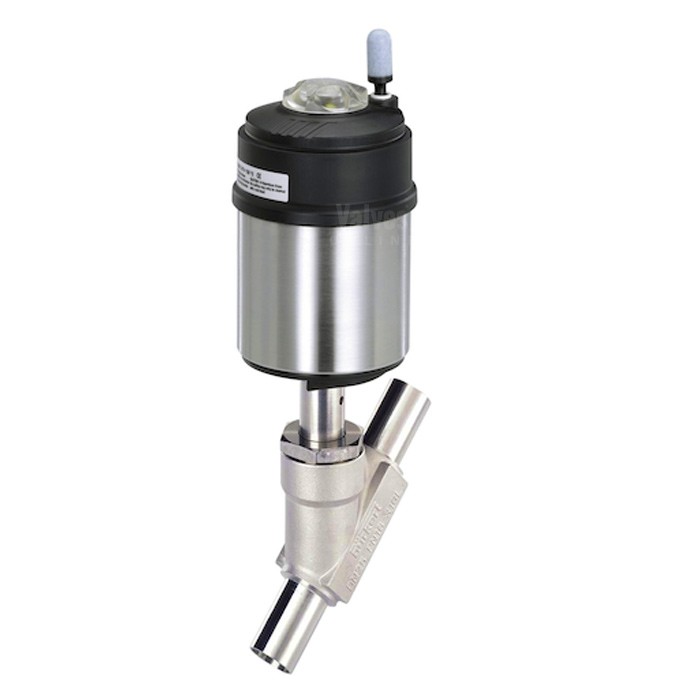

Burkert Type 2100 ELEMENT Angle Seat Valve for Liquids and Gas
SKU BL2100
Sizes: G1/2, G3/4, G1, G1 1/4, G1 1/2, G2, G2 1/2, 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2 (DN65)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Angle seat valve for liquids and gas
- 2 Way, normally closed, flow above seat
- Stainless Steel body
- PPS actuator
- PTFE valve seats
- BSP Threaded, Clamp or Weld end
- Sizes G1/2 to G2 / DN15 to DN50
Description
Burkert Type 2100 ELEMENT pneumatically operated on/off angle seat valve; incorporates and improves upon the traditional design of the type 2000 piston valve. 2 Ways, 2 Position, normally closed with flow above seat for use with steam up to a maximum of 10 Bar.
Stainless Steel construction offering superior protection in hygienic and chemically harsh environments. As part of the ELEMENT range it is easily and quickly automated with position feedback and pneumatic control units.
Suitable for water, alcohol, oils fuels, hydraulic fluids, salt solutions, alkali solutions and compressed air the flow below seat provides an anti-water hammer operation.
The construction of the 2100 angle seat valve fulfils the tough criteria of process environments and provides long trouble free service life thanks to the ELEMENT actuator and proven technology of the self-adjusting V seals.
Burkert Type 2100 BSP Threaded Datasheet (EN)
Burkert Type 2100 Clamp End Datasheet (EN)
Burkert Type 2100 Weld End Datasheet (EN)
Technical specification
- Media
- Gas, Liquid
- Body Material
- Stainless Steel
- Function
- Normally Closed
- End Connection
- BSP, G Thread, OD Weld End, Tri-clamp
- Size
- G1/2, G3/4, G1, G1 1/4, G1 1/2, G2, G2 1/2, 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2 (DN65)
- Burkert ID
- 213620, 213621, 213622, 213624, 213627, 188610, 239472, 188806,188807, 188808, 188810, 188812, 188764,18765, 188728, 188730, 188732, 239478
- Main Features
- G1/2 to G2 / DN15 to DN50 BSP, Clamp or Weld End For Liquids & Gas
