Burkert

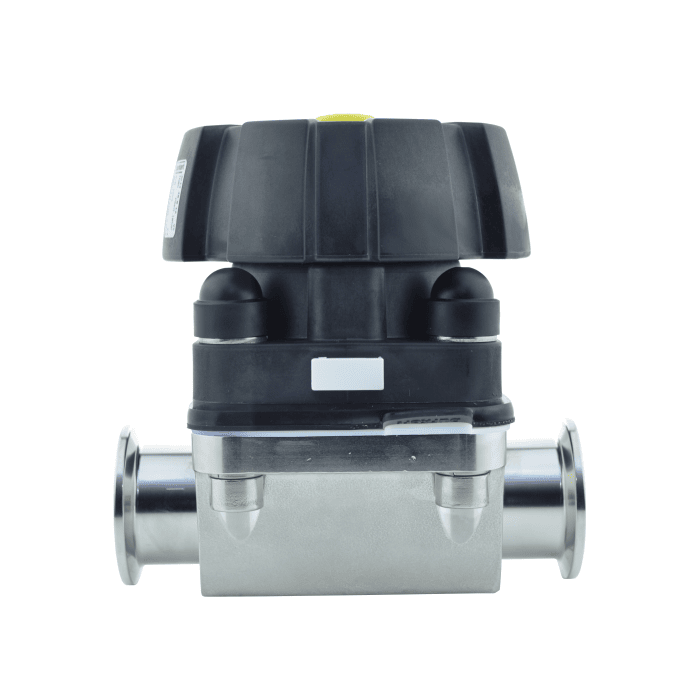

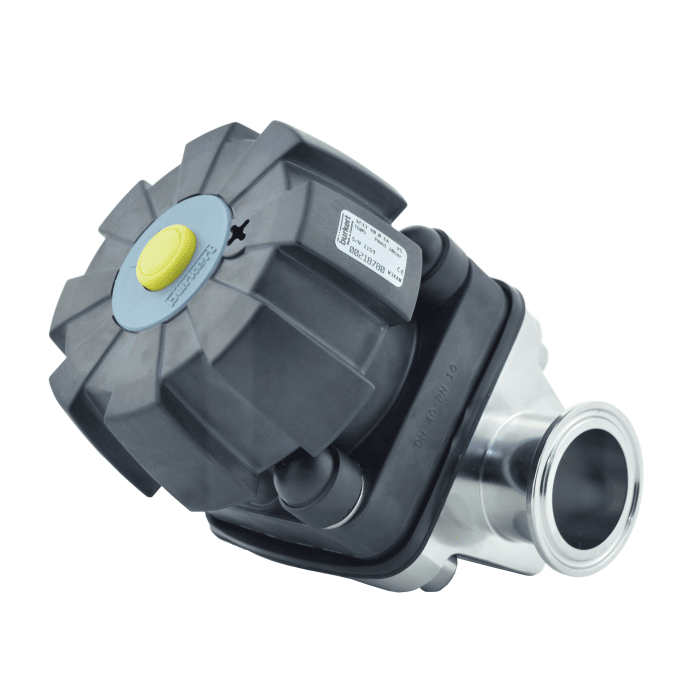

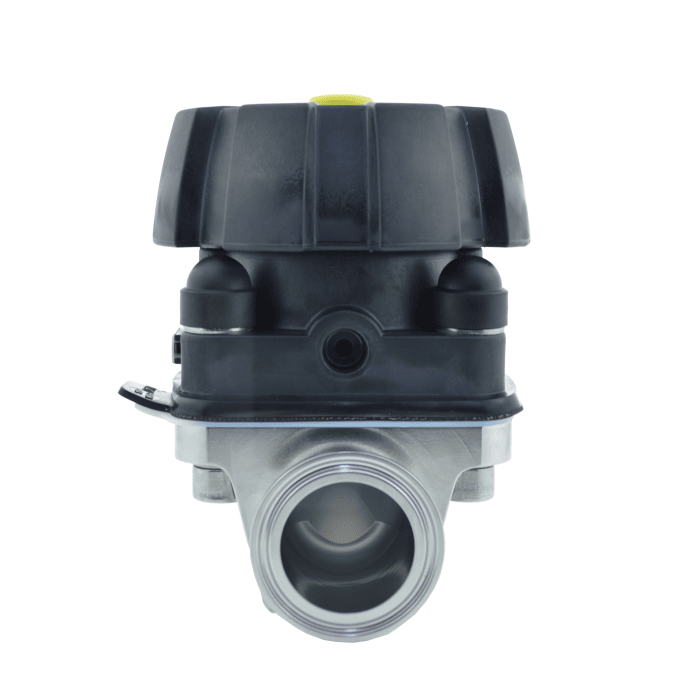

Burkert Type 3233 Hygienic Diaphragm Valve
SKU BU3233
Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1 1/2", 2"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Sanitary diaphragm valve
- Forged 316L Stainless Steel ASME BPE body
- PTFE / EPDM seals
- Clamp or Weld end connections
- Sizes: 1/4" to 2"
- Suitable for neutral gases and liquids, ultra-pure, sterile, aggressive and/or corrosive media
Description
Burkert's Type 3233 Hygienic Diaphragm Valve is suitable for neutral gases and liquids, ultra-pure, sterile, aggressive and/or corrosive media; designed specifically for 3A / FDA compliant processing.
A manually operated 2/2 way diaphragm valve with no dead volume, available in Clamp or Weld End connections with a forged 316L Stainless Steel ASME BPE body and PTFE / EPDM seals. Benefits from a flow-optimised body, PPS bonnet and PPS handwheel.
Continuous adjustment of flow can be easily undertaken using the built-in handwheel.
Installed as required or tilted 5 to 30° to the horizontal and inclined 3 to 5° to the flow direction for self-draining operation.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Body Material
- Stainless Steel 316L ASME BPE, Stainless Steel
- Diaphragm Material
- PTFE / EPDM
- End Connection
- OD Weld Ends, Tri-Clamp
- Size
- 1/4", 3/8", 1/2", 3/4", 1", 1 1/2", 2"
- Industry / Approvals
- Hygienic, FDA - Food Grade, Pharma, Biotech, Food Processing
