Images are illustrative and may not show every size or variation.
Burkert

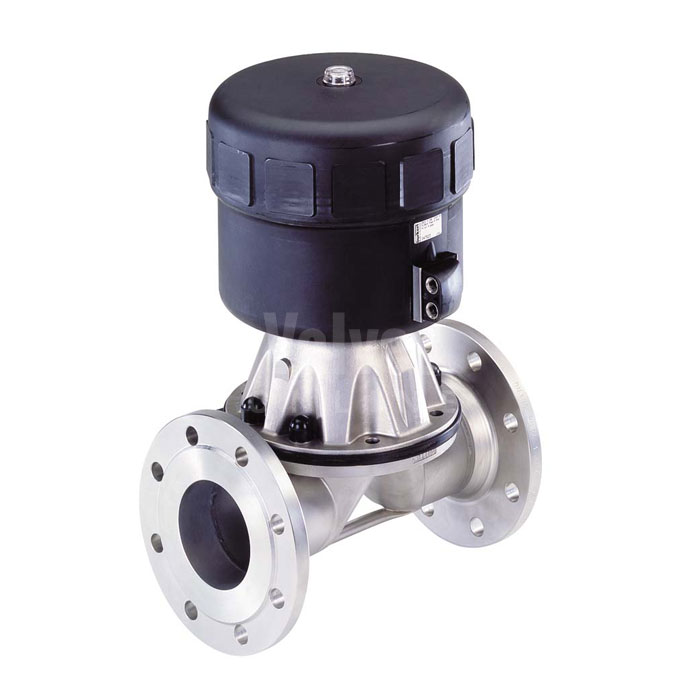

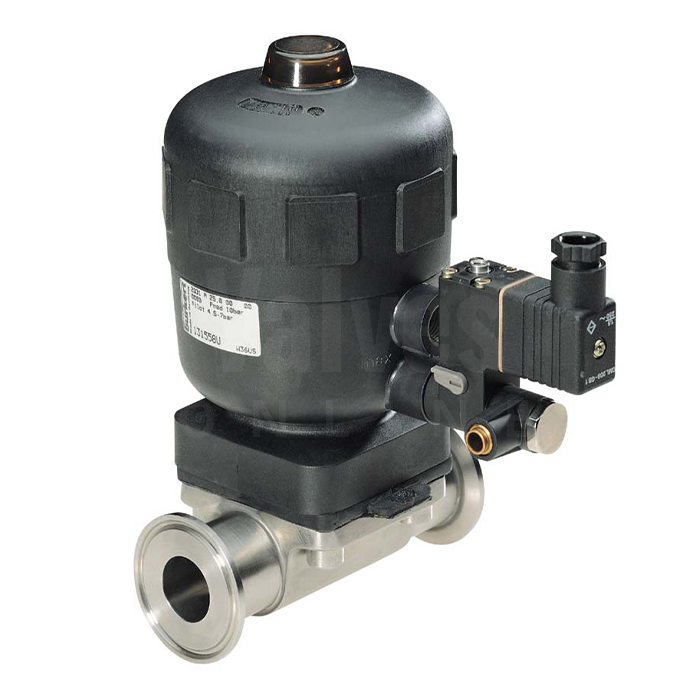

Burkert Type 2031 General Purpose Diaphragm Valve
SKU BG2031
Sizes: G1/2, G3/4, G1, G1 1/4, G1 1/2, G2, DN15, DN20, DN25, DN32, DN40, DN50
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- General purpose diaphragm valve
- Stainless Steel Body
- EPDM or PTFE/EPDM Diaphragm
- G1/2 to G2 (BSP Threaded) and DN15 to DN50 Flanged End Connections
Description
Burkert Type 2031 Pneumatic normally closed piston operated diaphragm valve, 2/2 Way Stainless Steel body with either threaded (BSP) or flanged (DIN EN1092-1) end connections and a choice of EPDM or PTFE with EPDM backing allow this general purpose diaphragm to cover a wide range of standard process duties and offer all the benefits of a CLASSIC type valve.
The cold formed pipe valve body is flow optimised, exhibits zero dead volume and has a glass beaded finish making it suitable for applications involving neutral gases and liquids, high-purity, sterile, aggressive or abrasive fluids.
A maintenance free robust valve that can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation and manual override. Alternative end connections and control functions available upon request.
Technical specification
- Body Material
- Stainless Steel
- Diaphragm Material
- EPDM, PTFE / EPDM
- End Connection
- BSP, Flanged PN16
- Size
- G1/2, G3/4, G1, G1 1/4, G1 1/2, G2, DN15, DN20, DN25, DN32, DN40, DN50
