Burkert

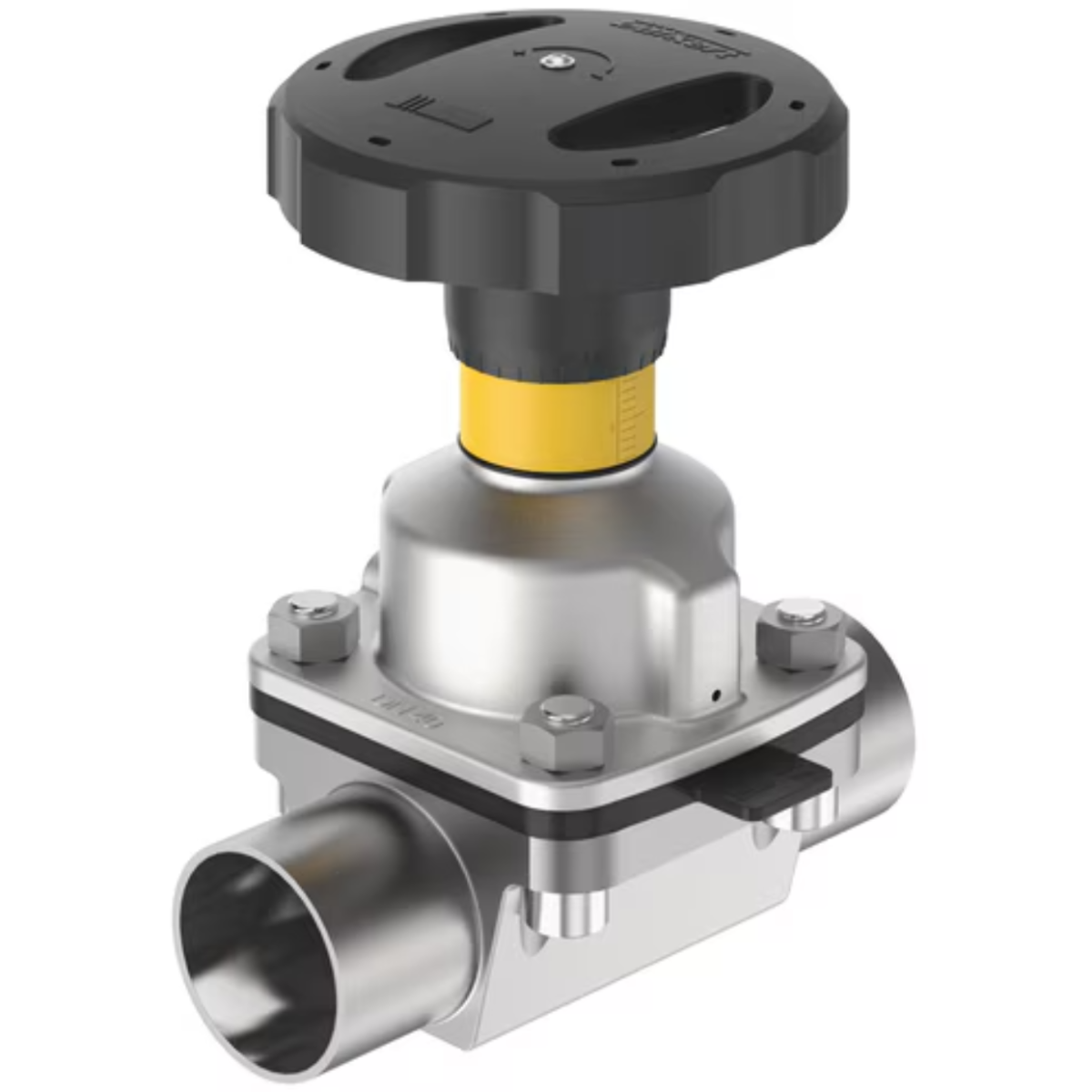

Burkert Type 2933 Screwed Diaphragm Valve
SKU BT2933
from£381.89ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2", 3/4", 1", 1 1/2", 2"
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Burkert Type 2933 Diaphragm Valve
- Screwed BSP
- 1/2" to 2"
- EPDM or PTFE/EPDM Diaphragm Material
- Stainless Steel Tube Body
Description
The Burkert Type 2933 screwed manually operated diaphragm valve consists of a manually operated handwheel, a diaphragm and a 2-way valve body with screwed BSP end connections.
The flow-optimised valve body with minimum dead space enables high flow values and a wide range of possible applications.
The manual handwheel is equipped with an integrated visual position indicator, a reproducible stroke scale and an adjustable closing limiter.
Technical specification
- Body Material
- Stainless Steel
- Diaphragm Material
- EPDM, PTFE / EPDM
- End Connection
- BSP
- Size
- 1/2", 3/4", 1", 1 1/2", 2"
- Main Features
- Screwed BSP 1/2" to 2" EPDM or PTFE/EPDM Diaphragm Material
