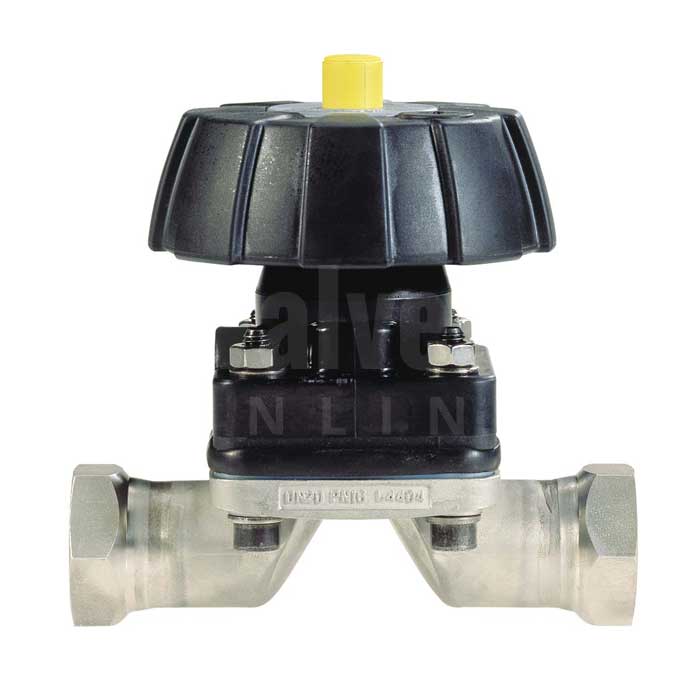

Burkert Type 3233 General Purpose Diaphragm Valve
SKU DV5207
Sizes: G1/2, G3/4, G1, G1 1/4, G1 1/2, G2
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- General Purpose Diaphragm Valve
- Cast Stainless Steel Body
- EPDM or PTFE/EPDM Seals
- 2/2 Way
- BSP Threaded End Connections
- Sizes: G 1/2 to G 2
- Suitable for neutral gases and liquids, aggressive and/or corrosive media
Description
Burkert's Type 3233 Hygienic Diaphragm Valve is suitable for neutral gases and liquids, aggressive and/or corrosive media.
A manually operated 2/2 way diaphragm valve with no dead volume, available with Cast Stainless Steel body and EPDM or PTFE/EPDM seals. Benefits from a flow-optimised body, PPS bonnet and PPS handwheel.
Continuous adjustment of flow can be easily undertaken using the built-in handwheel.
Installed as required or tilted 5 to 30° to the horizontal and inclined 3 to 5° to the flow direction for self-draining operation.
Other sizes and connections are available on request.
Technical specification
- Body Material
- Stainless Steel, Cast Stainless Steel
- Diaphragm Material
- PTFE, EPDM
- End Connection
- BSP
- Size
- G1/2, G3/4, G1, G1 1/4, G1 1/2, G2
