Burkert Type 3232 Manual Plastic Diaphragm Valve

Name: Burkert Type 3232 Manual Plastic Diaphragm Valve
Brand: Burkert
SKU: BU3232

SKU BU3232

Price on request

Sizes: 3/4", 1", 1 1/4", 1 1/2", 2"

Not the right one? Identify your valve by photo

Checking online availability…

Next-day UK delivery on stock items
Trade and bulk pricing available on request

Burkert Type 3232 Plastic Diaphragm Valve
manually operated, 2/2 Way Diaphragm Valve
Body material: PVC, Polypropylene (PP)
Seal material: EPDM or PTFE/EPDM
Sizes: 20mm (Orifice: 15mm) to 63mm (Orifice: 50mm)
End connections: True Union or Spigot (PP)

Description

Suitable for aggressive and/or corrosive media, the Burkert Type 3232 Manual Plastic Diaphragm Valve benefits from a flow-optimised body, PPS bonnet and PPS handwheel.

A 2/2 way manual diaphragm valve with no dead volume, available in: PVC or Polypropylene (PP) body with EPDM or PTFE / EPDM seals. Continuous adjustment of flow can be easily undertaken using the built-in handwheel.

Installed as required or tilted 5 to 30° to the horizontal and inclined 3 to 5° to the flow direction for self-draining operation.

True Union connection PVC Diaphragm Valve featuring EPDM or PTFE / EPDM seals.

True Union or Spigot connection Polypropylene (PP) Diaphragm Valve featuring EPDM or PTFE / EPDM seals.

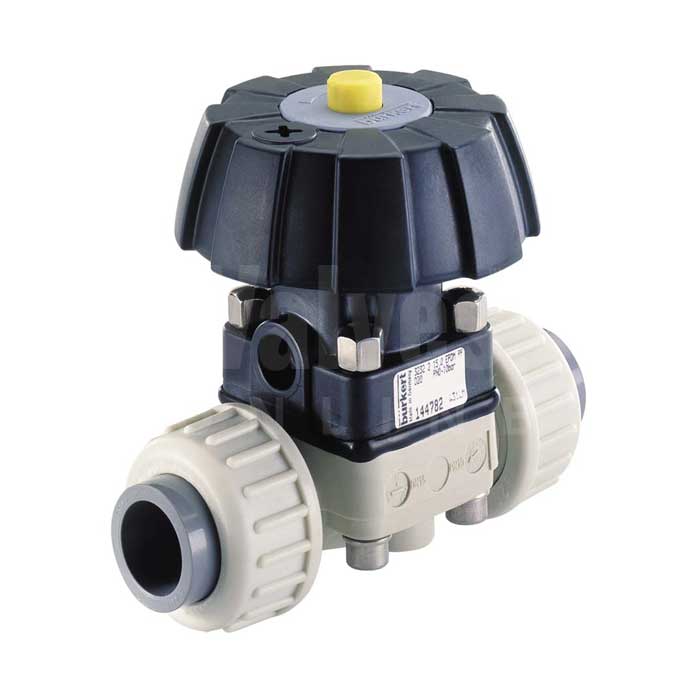

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
