Images are illustrative and may not show every size or variation.
Burkert

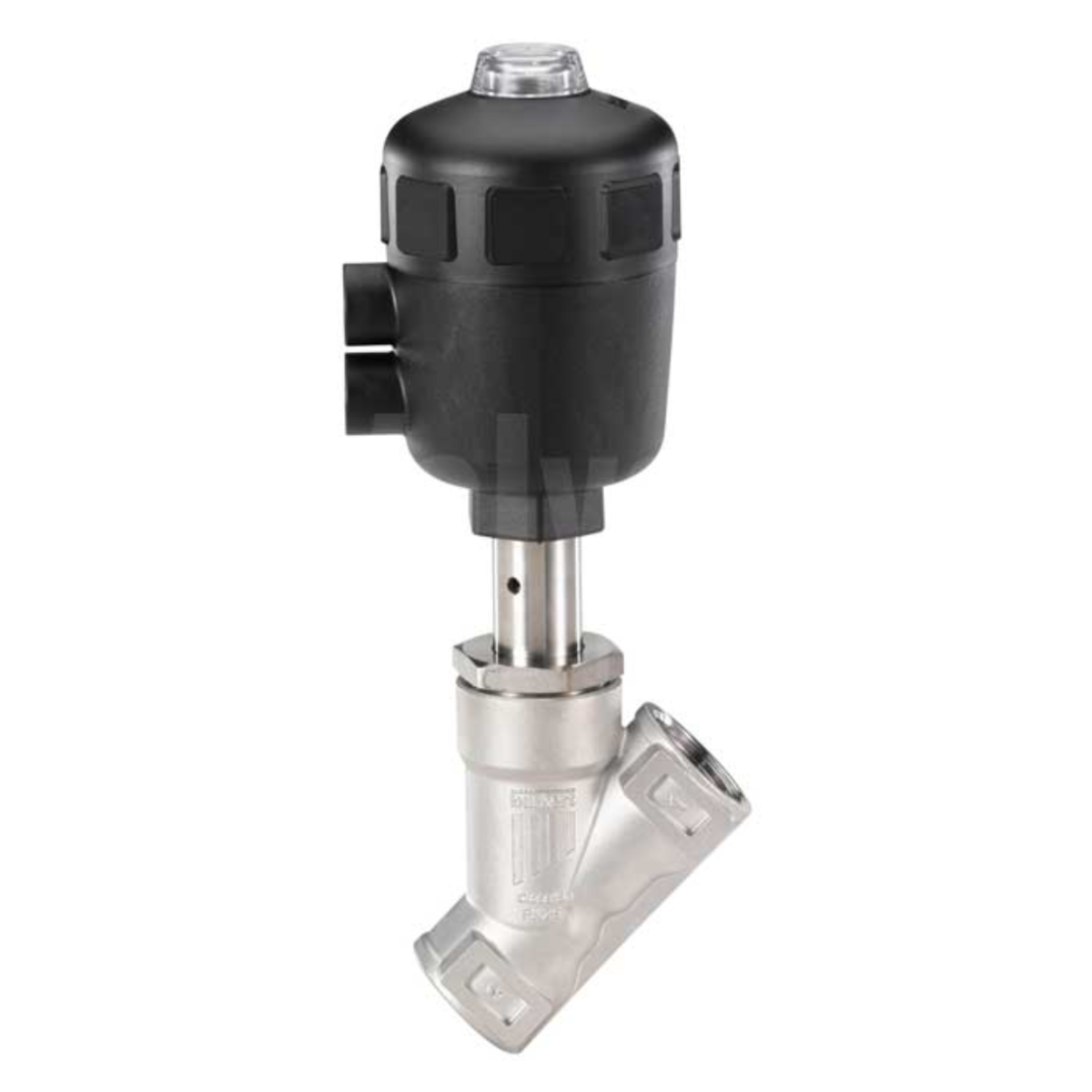

Burkert Type 2000 Stainless Steel Angle Seat Valve for Steam and Gas
SKU SS2000
Sizes: G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2, G2 1/2, 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Angle Seat Valve for Steam and Gas
- Normally Closed - Fail Safe
- Stainless Steel Body
- Polyamide actuator with position indicator
- Threaded BSP / G Thread, Clamp or Weld end
- Sizes G3/8 to G2 ½
- Temperature up to 180°C
Description
Tried and tested this classic Burkert Type 2000 Stainless Steel Angle Seat Valve for Steam and Gas has been use for rugged industrial applications for over 20 years. It can be found in steam plants, hospitals and laundries worldwide.
This version of the piston valve is offered in Stainless Steel (for Gunmetal see GS2000 ) and is designed specifically for use on steam up to 180°C (for liquids see SL2000 ). The construction of the body makes it possible for extremely high flow rates, giving long life, patented chevron packing gland seals, coupled with extreme high reliability, particularly in comparison to other Pneumatic globe valves.
Available in sizes G3/8 to G2 ½. Normally Closed (normally open on request) fail safe function, offering a maintenance free robust valve that can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation, and manual override. Easy to operate and can be piloted in conjunction with our BP6012 banjo pilot solenoid valve or manifold multi valve type BM6014
Suitable for Steam, gases and compressed air, not suitable for liquids.
This product is available to configure online in the following Burkert IDs: 142615, 186376, 185304, 178857, 178893, 178895, 1401, 130333, 183249, 183264, 183265, 183266, 183267, 183290, 183291, 183286, 183288, 166536. For other variations please contact us.
Burkert Type 2000 BSP Threaded Datasheet (EN)
Burkert Type 2000 Clamp End Datasheet (EN)
Burkert Type 2000 Weld End Datasheet (EN)
Technical specification
- Media
- Steam, Gas
- Body Material
- Stainless Steel
- Function
- Normally Closed, Normally Open
- End Connection
- BSP, G Thread, OD Weld End, Tri-clamp
- Size
- G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2, G2 1/2, 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50)
- Burkert ID
- 142615, 186376, 185304, 178857, 178893, 178895, 1401, 130333, 183249, 183264, 183265, 183266, 183267, 183290, 183291, 183286, 183288, 166536
- Main Features
- G 3/8" to G 2 1/2" BSP / G Thread, Clamp or Weld End For Steam & Gas
