Images are illustrative and may not show every size or variation.
VOLT

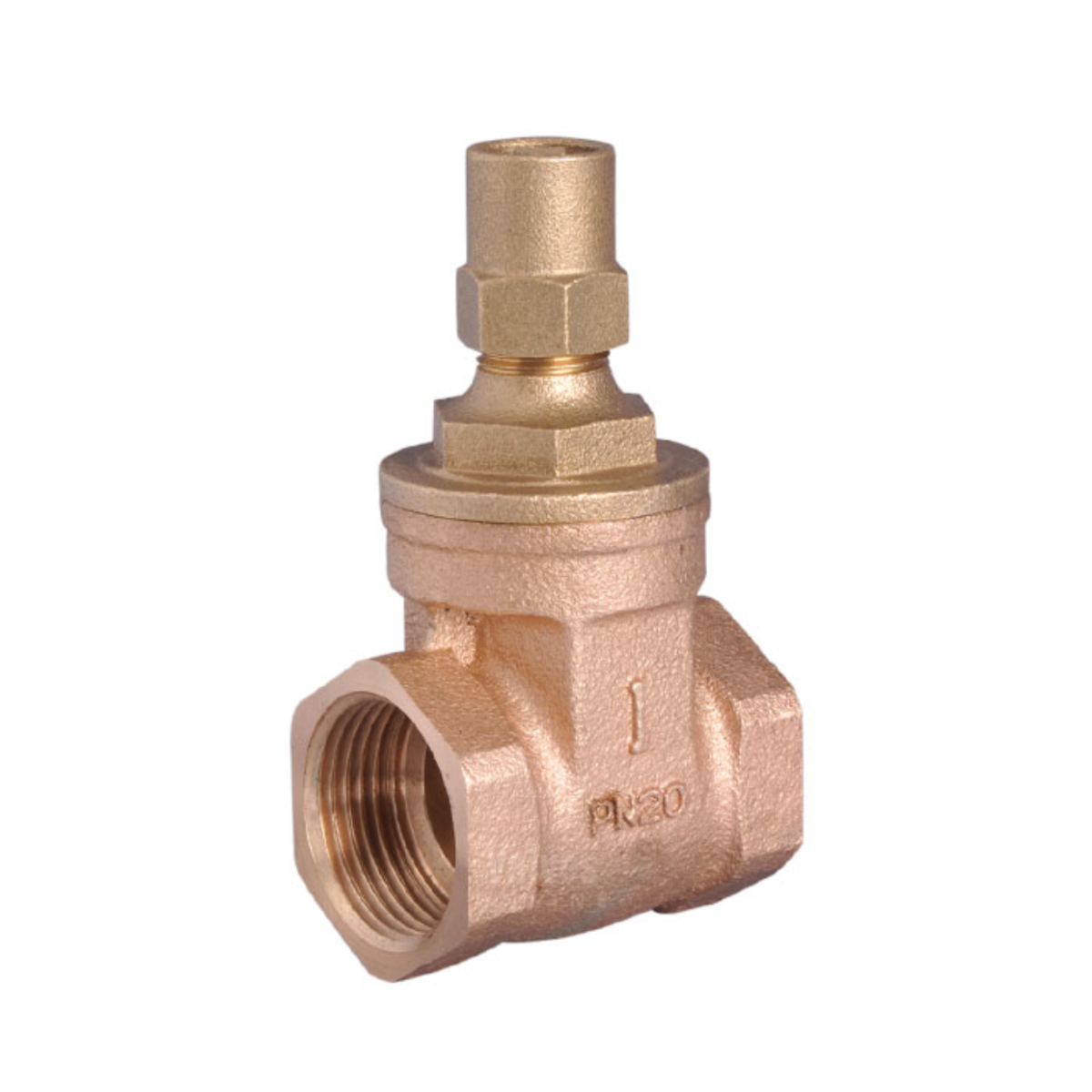

Bronze Gate Valve
SKU GV4201
from£15.96ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Available in sizes: 1/4" to 4"
- Bronze body with PTFE seals
- Screwed BSP, or NPT end connections
- Handwheel Operated or Lockshield
- Temperature range: -20°C to 180°C
- Pressure rating: PN20
Description
Our Bronze Gate Valve is suitable for industrial applications and fluids including steam, water and gas. An economic full bore manual valve with non-rising stem and cast body, Handwheel Operated or Lockshield in either BSP or NPT end connections.
VOLT Bronze Gate valves are maintenance free, economical and feature a bronze body, bonnet and where applicable cast hand wheel.
Manufactured to BS5154.
Bronze Gate Valve Datasheet
Technical specification
- End Connection
- BSP, NPT
- Body Material
- Bronze
- Size
- 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
- Industry / Approvals
- HVAC
- Design
- Handwheel Non Rising Stem
- Main Features
- 1/4" to 4" BSP or NPT Up to PN20 Rated
