Images are illustrative and may not show every size or variation.
VOLT

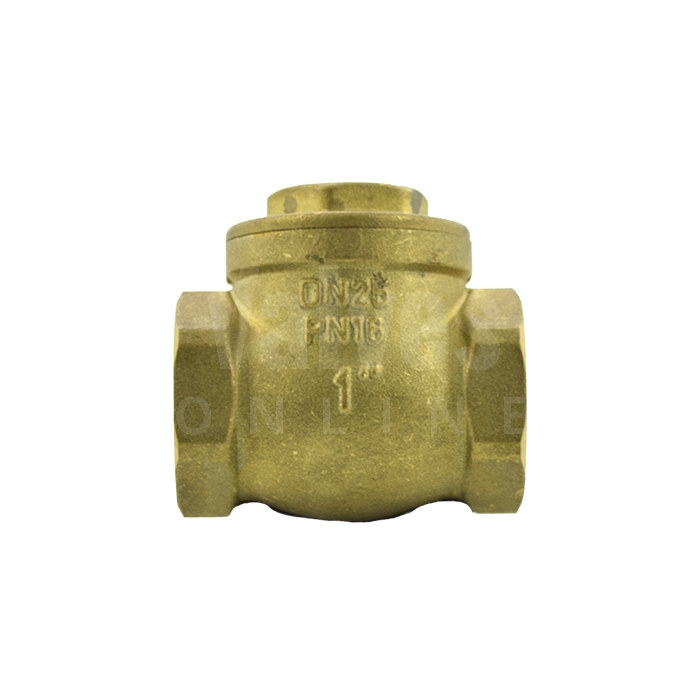

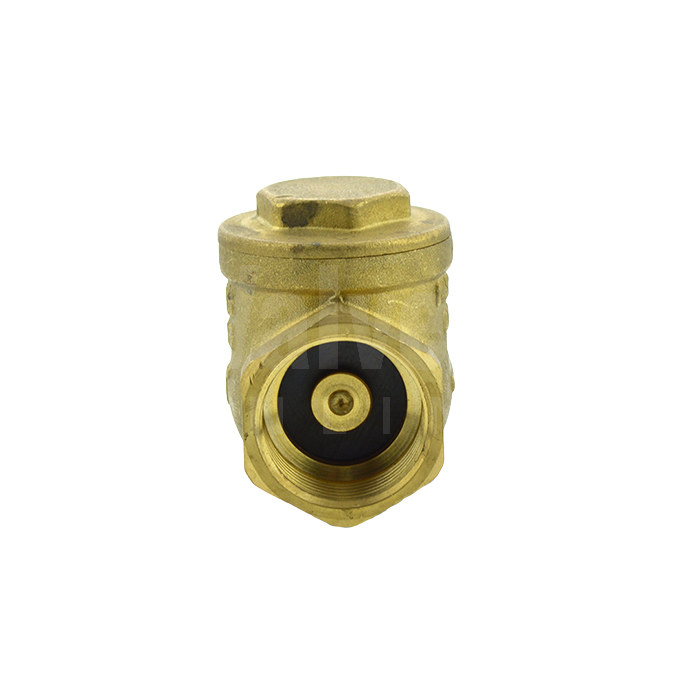

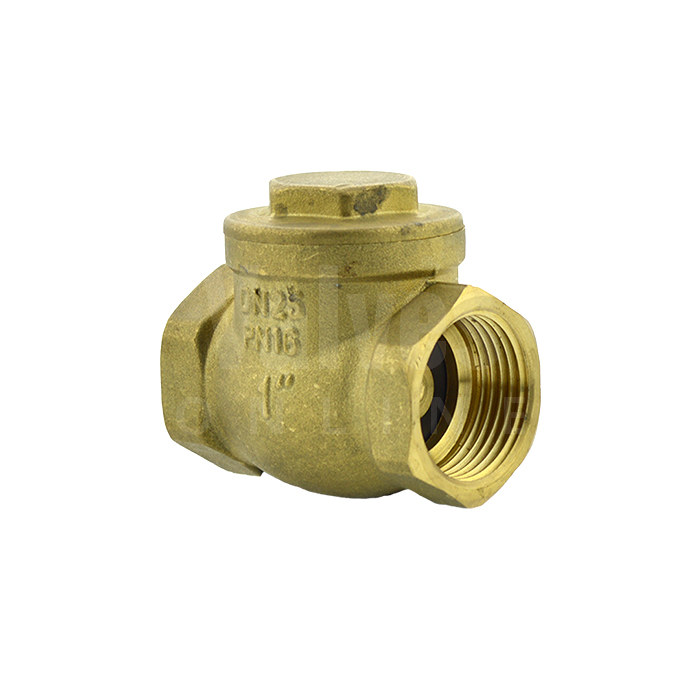

Brass Swing Check Valve Screwed BSP
SKU CV4663
from£9.64ex VAT Not the right one? Identify your valve by photo
Sizes: 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Swing Check Valve
- Brass body
- Screwed BSP
- Rubber (NBR) or metal seat
- Sizes 3/8" to 4"
Description
Our Brass Swing Check Valve Screwed BSP offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. A reliable, low cost high performance valve featuring a Brass body and rubber (NBR) or metal seat.
Installed either vertically (upwards only) or horizontally.
For full details please download the accompanying datasheet.
Brass Swing Check Valve Screwed BSP Datasheet
Technical specification
- End Connection
- BSP
- Design / Type
- Swing Check
- Industry / Approvals
- HVAC
- Body Material
- Brass
- Size
- 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Main Features
- 3/8" to 4" Up to 16 Bar (3/8" - 3") Up to 10 Bar (4")
