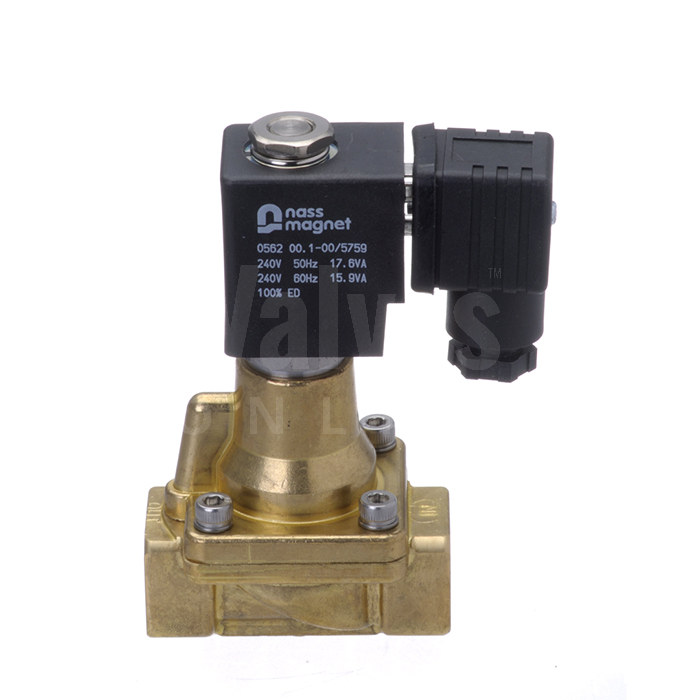

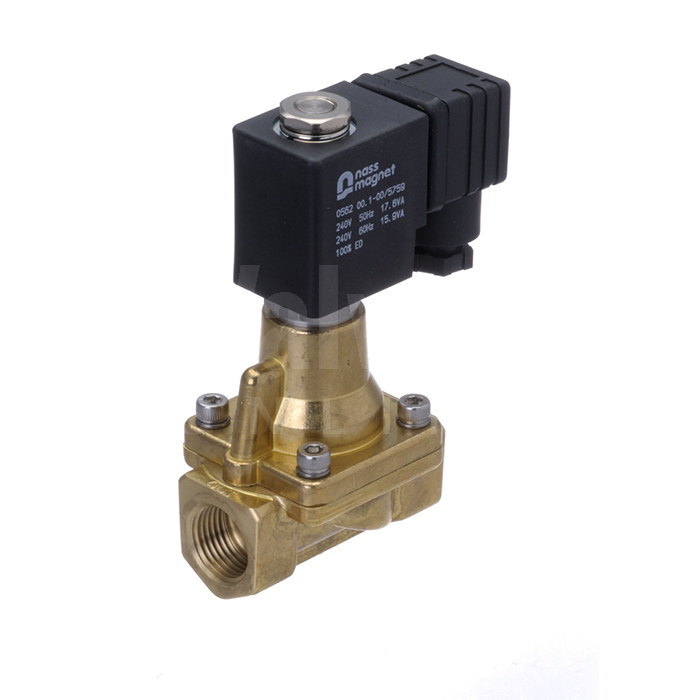

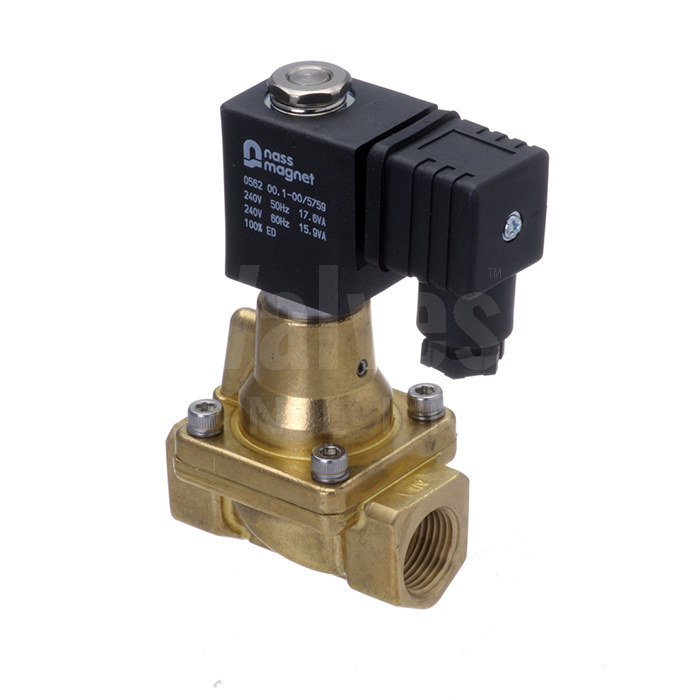

Brass Solenoid Valve 0.5-50 Bar Rated High Pressure
SKU SV5226
from£169.24ex VAT Not the right one? Identify your valve by photo
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Servo assisted, normally closed
- Brass body
- PTFE / NBR seals
- Size: 3/8" - 1"
- Media temperature: 90 °C
- Pressure rating 0.5-50 Bar
- Voltage: 24V DC, 24V AC, 110V AC and 230V AC
- Suitable for use with neutral air, gasses such as compressed air and natural gas, light oils and water
Description
Our Brass Solenoid Valve 0.5-50 Bar Rated High Pressure 3/8" - 1" is suitable for use with neutral air, gasses such as compressed air and natural gas, light oils and water.
A normally closed, 0.5-50 Bar rated servo assisted solenoid valve consisting of a Brass body and PTFE / NBR seals.
Requires a differential pressure of 0.5 Bar to operate correctly.
Supplied with cable plug.
Brass Solenoid Valve 0.5-50 Bar Rated High Pressure Datasheet
*To help you select the correct solenoid valve please use the data found on our Technical Information tab.
Technical specification
- Process / Industry
- High Pressure
- Body Material
- Brass
- Design
- 2 Way
- Function
- Normally Closed
- Port Size
- 3/8", 1/2", 3/4", 1"
- Seal Material
- NBR, PTFE
- Voltage
- 24V DC, 24V AC, 110V AC, 230V AC
- Main Features
- Temperature up to 90°C 0.5 – 50 Bar 3/8” – 1”
