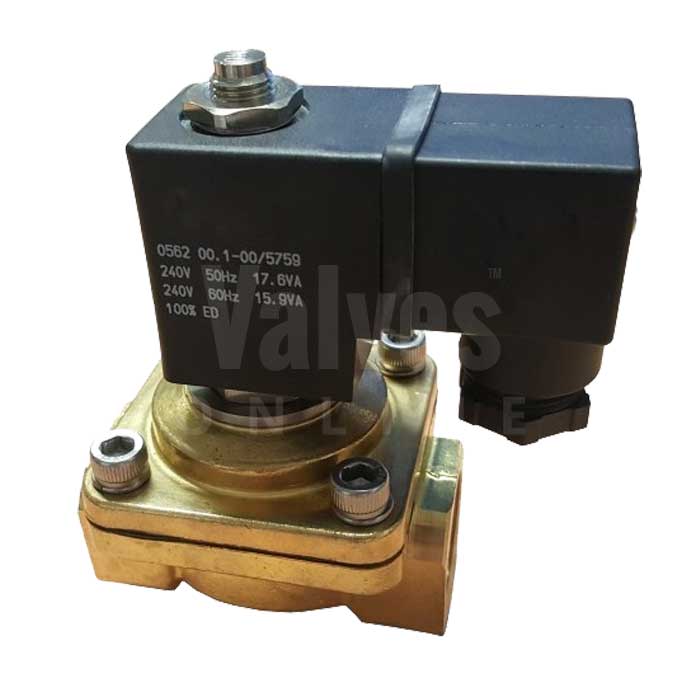

Brass Normally Open Zero Rated Solenoid Valve - 0 to 12 Bar

Our SV4220 Brass Solenoid Valve is a Normally Open Direct Acting valve and is therefore suitable for use on systems where no pressure is present using only the valves internal workings to keep the valve open, unlike servo assisted valves that require a minimum pressure differential across the valve. The function of this valve is Normally Open and when power is applied it will close. Offered in sizes from 3/8" to 1". Applications include, tank drainage, gravity fed and open loop systems.

The solenoid valve has options for a choice of FKM, EPDM or NBR seals.

Offers high flow rates and the ability to work with zero pressure differential: make this valve one of the most popular valves in our range!

This reliable and hard working 2/2 way, brass normally open solenoid valve in sizes of 3/8" up to 1", operates from zero pressure up to 12 Bar.

This solenoid valve offers outstanding flowrates and is supplied with a high performance 18.5 watt coil in both AC and DC, screwed BSPP end connections, with a choice of NBR, FKM or EPDM seals.

Suitable for air, neutral liquids such as water, light oil and vacuum (max 50 centistokes).

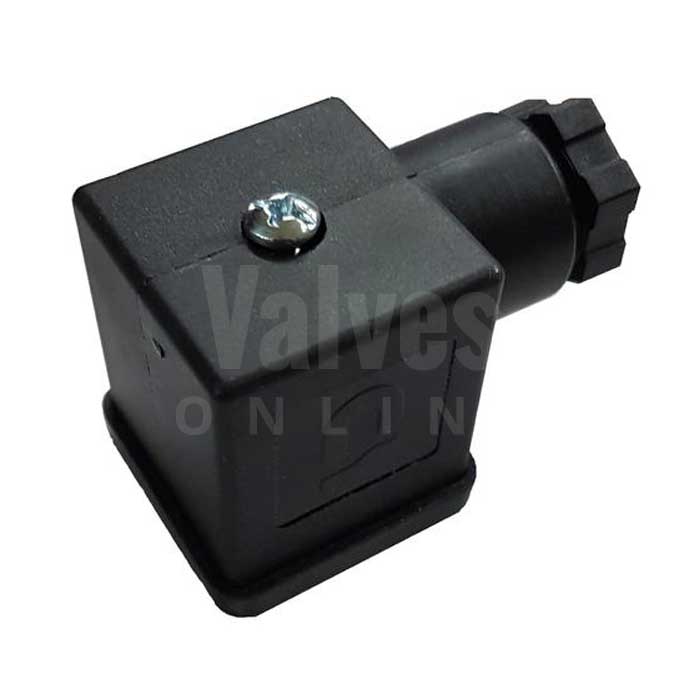

The valve is available in 24V DC, 24V AC, 110V AC or 240V AC and is supplied with cable plug.

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.

Brass Normally Open Zero Rated Solenoid Valve - 0 to 12 Bar Datasheet
